Seat Temperature Sensor
>>
Diagrams
>>
Passenger's Side
Passenger's Side

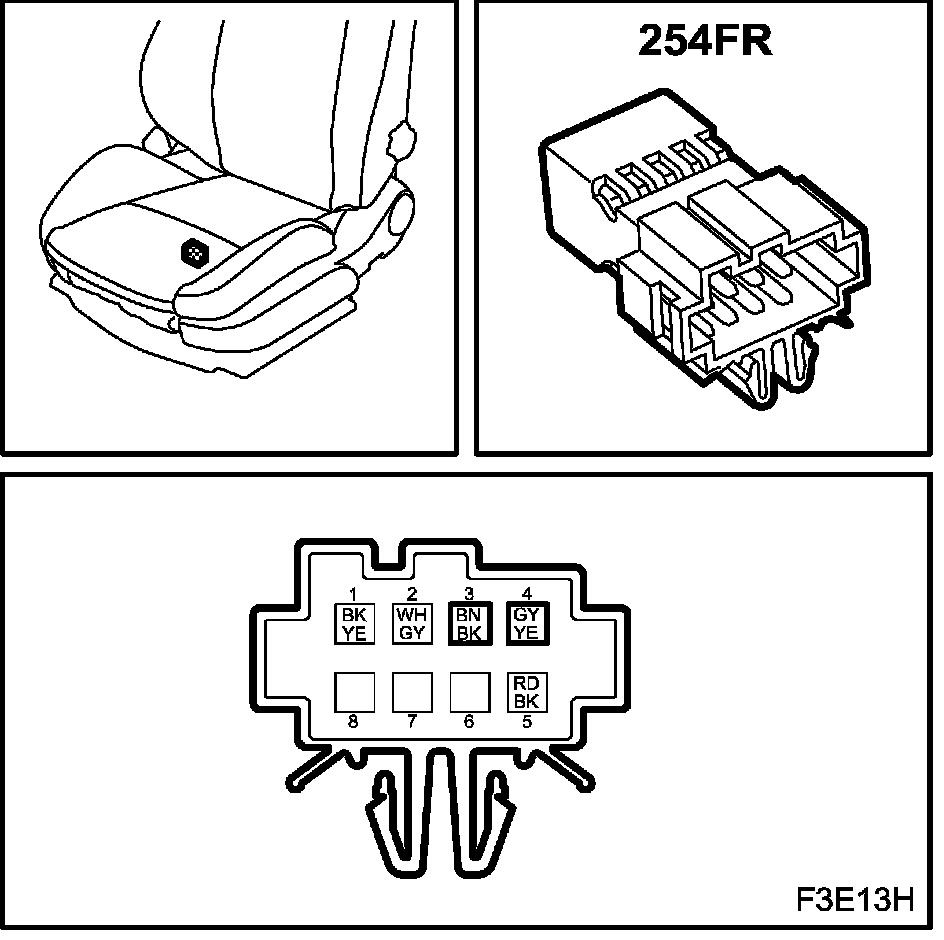

Temperatue Sensor, Seat Heating Pad (254FR)
Location: In the seat cushion, Passenger's side.
