Home >> Saab >> 2007 >> 9-3 (9440) L4-2.0L Turbo >> Repair and Diagnosis >> Body and Frame >> Seats >> Diagrams >> Connector Views >> Seat Connectors In Numeric Order >> 357Dj >> Convertible

Convertible

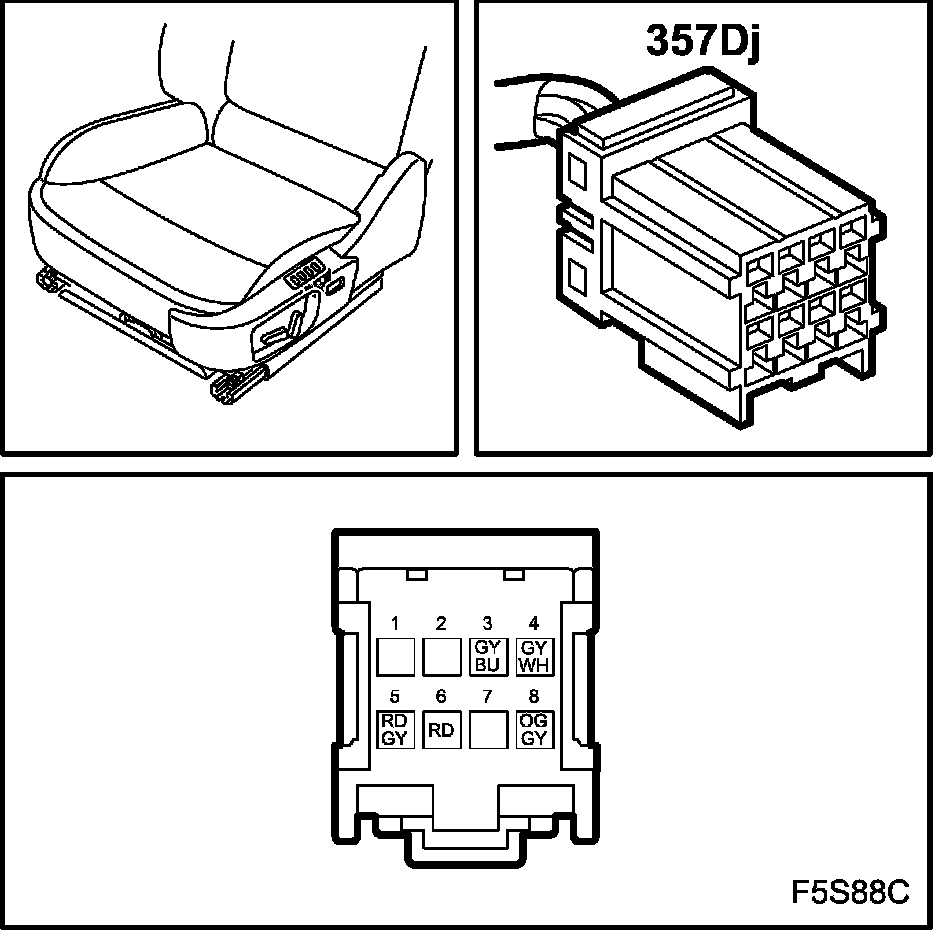

Memory Switch, Electrically Operated Seat With Memory (357Dj)

Location: On the outside of the seat towards the door.
