Diagrams
>>
Sedan and Convertible
>>

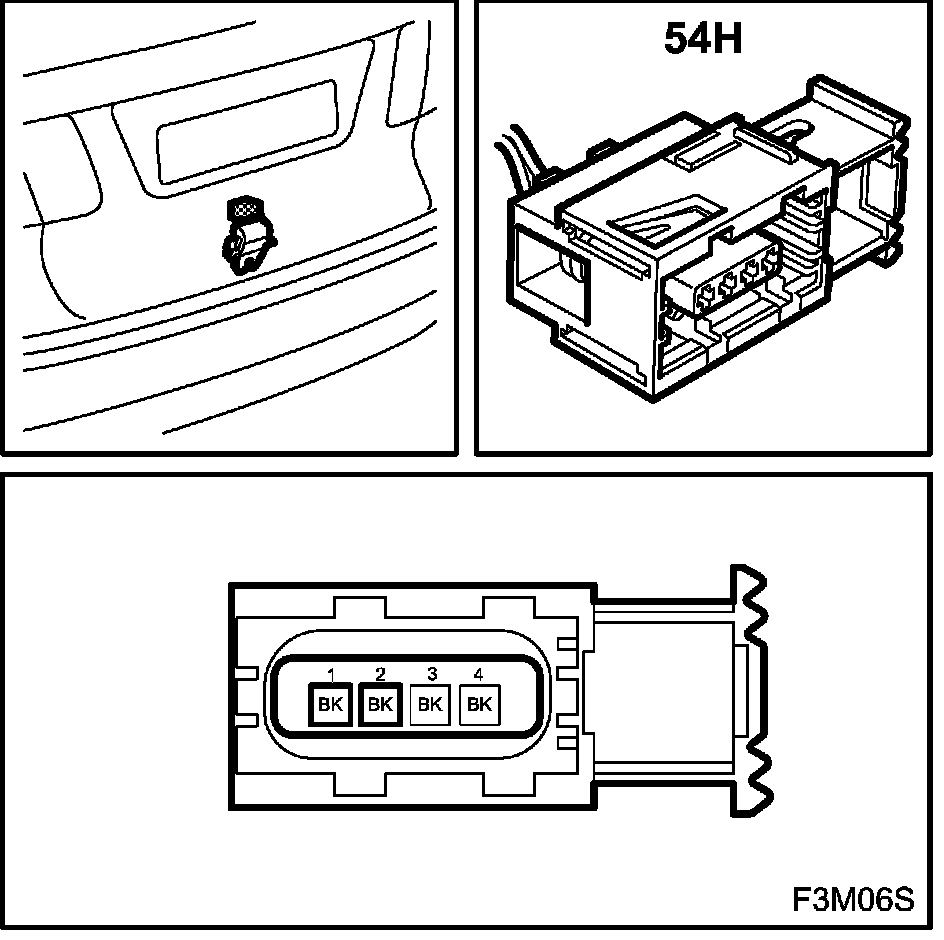

Connector, Boot Lid (54H)
Connector, Boot Lid (54H)
Connector, Boot Lid (54H)
Location: In the central locking system motor.
