Home
>>
Saab
>>
2006
>>
9-5 (9600) L4-2.3L Turbo (2.3 T)
>>
Repair and Diagnosis
>>
Sensors and Switches
>>
Sensors and Switches - Instrument Panel
>>
Fuel Gauge Sender
>>
Diagrams
>>
Connector Views
Connector Views
Level Sensor, Fuel (46)

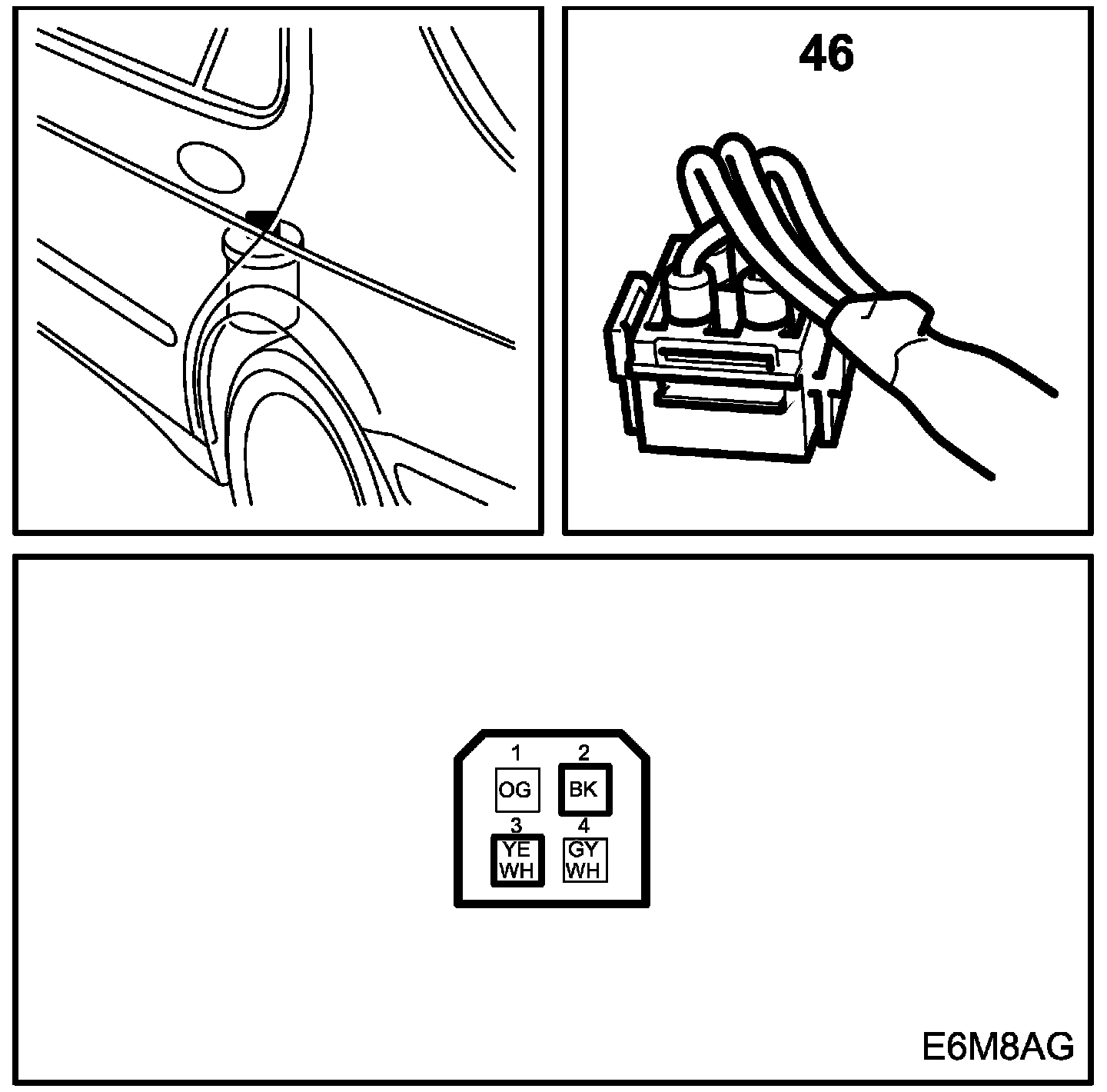

4-cyl. petrol
Level Sensor, Fuel (46):

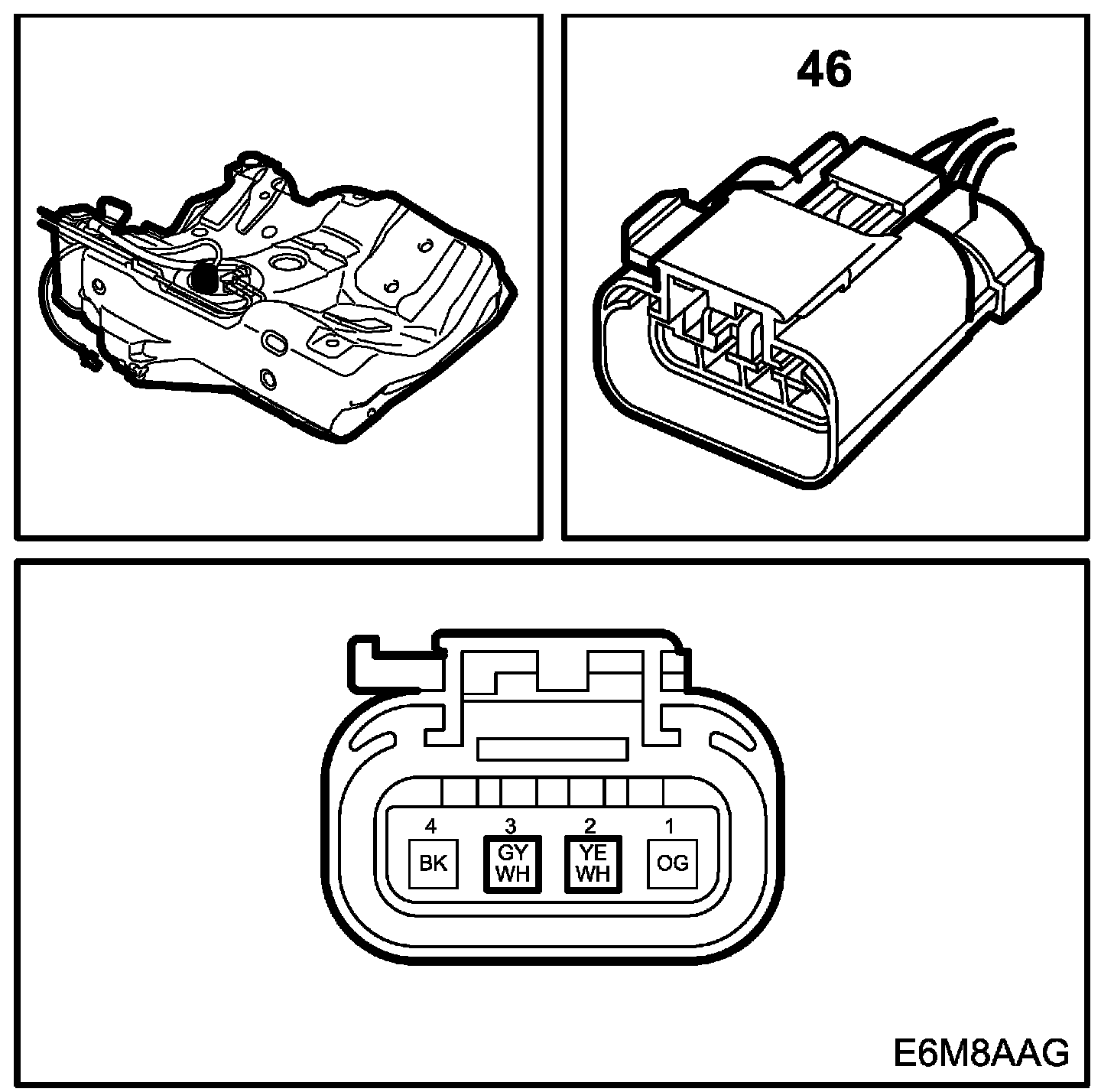

4-cyl. US
Level Sensor, Fuel (46):
