Evaporative Vapor Pressure Sensor: Service and Repair

EVAP pressure sensor (585)

To remove

1. Raise the seat squab. Remove the cover from the pump.

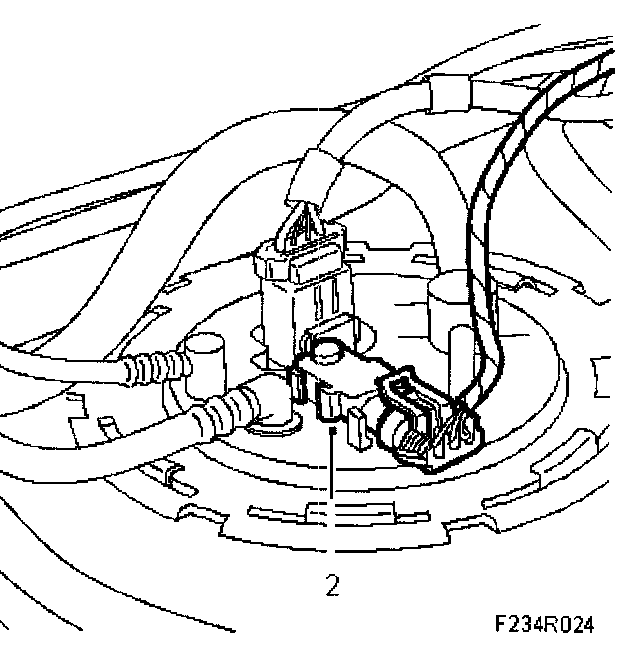

2. Unplug the connector and remove the pressure sensor.





To fit

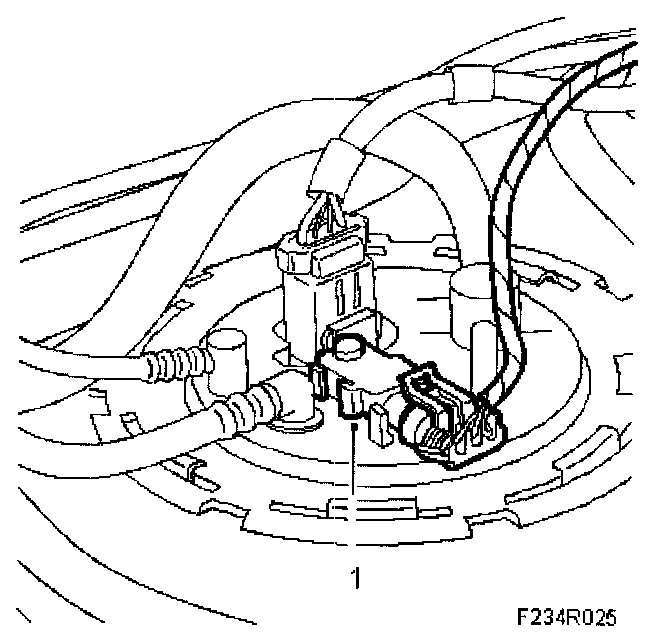

1. Fit the pressure sensor and plug in the connector.





2. Fit the cover. Grease the rubber ring with Vaseline. Fit the seat squab.
