Xenon Lamp System Indicator


Xenon Lamp System Indicator








The indicator lamp warns the driver of a fault in the xenon lighting and automatic headlamp adjustment system.

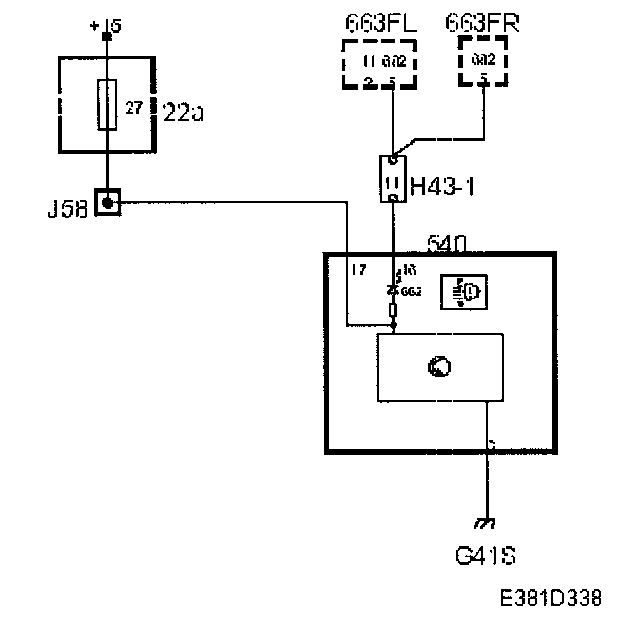

The lamp is supplied from the main instrument unit and is grounded via pin 16 of the headlight control module if there is a system fault.


Diagnosis


The function has no diagnostics.
