Warning Lamp, Brake Fluid Level

Warning Lamp, Brake Fluid Level

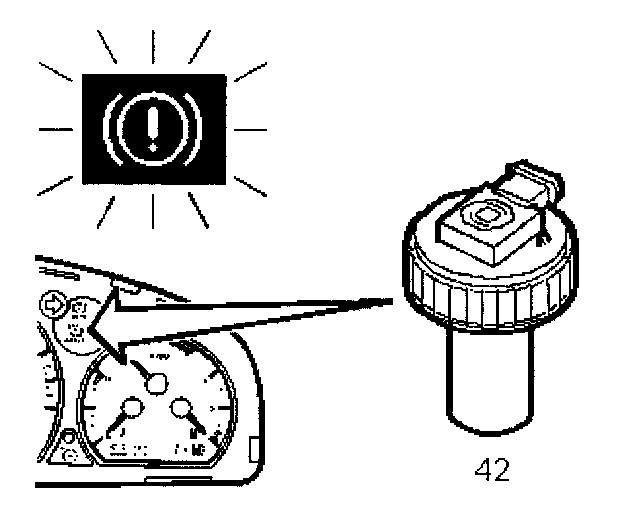

The brake fluid warning lamp warns the driver if the level of fluid in the reservoir is too low. The lamp will also go on if there is a fault in the ABS system.

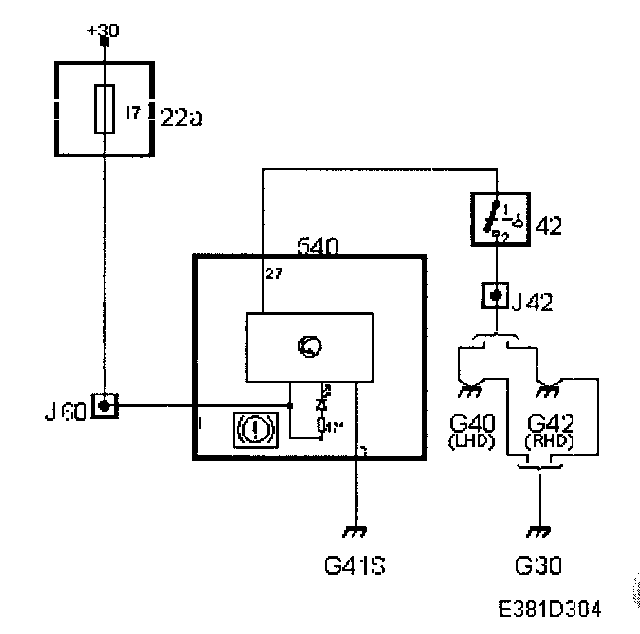

If the brake fluid level is too low the level sensor switch closes causing pin 27 in the main instrument unit to be grounded. The control module then switches on the lamp. At engine speeds exceeding 300 rpm the MIU sends a message to the SID control module requesting an acoustic signal. The main instrument unit lights the brake fluid level warning lamp for 3 seconds when the ignition is turned on.


Diagnosis

The function has no diagnostics.
