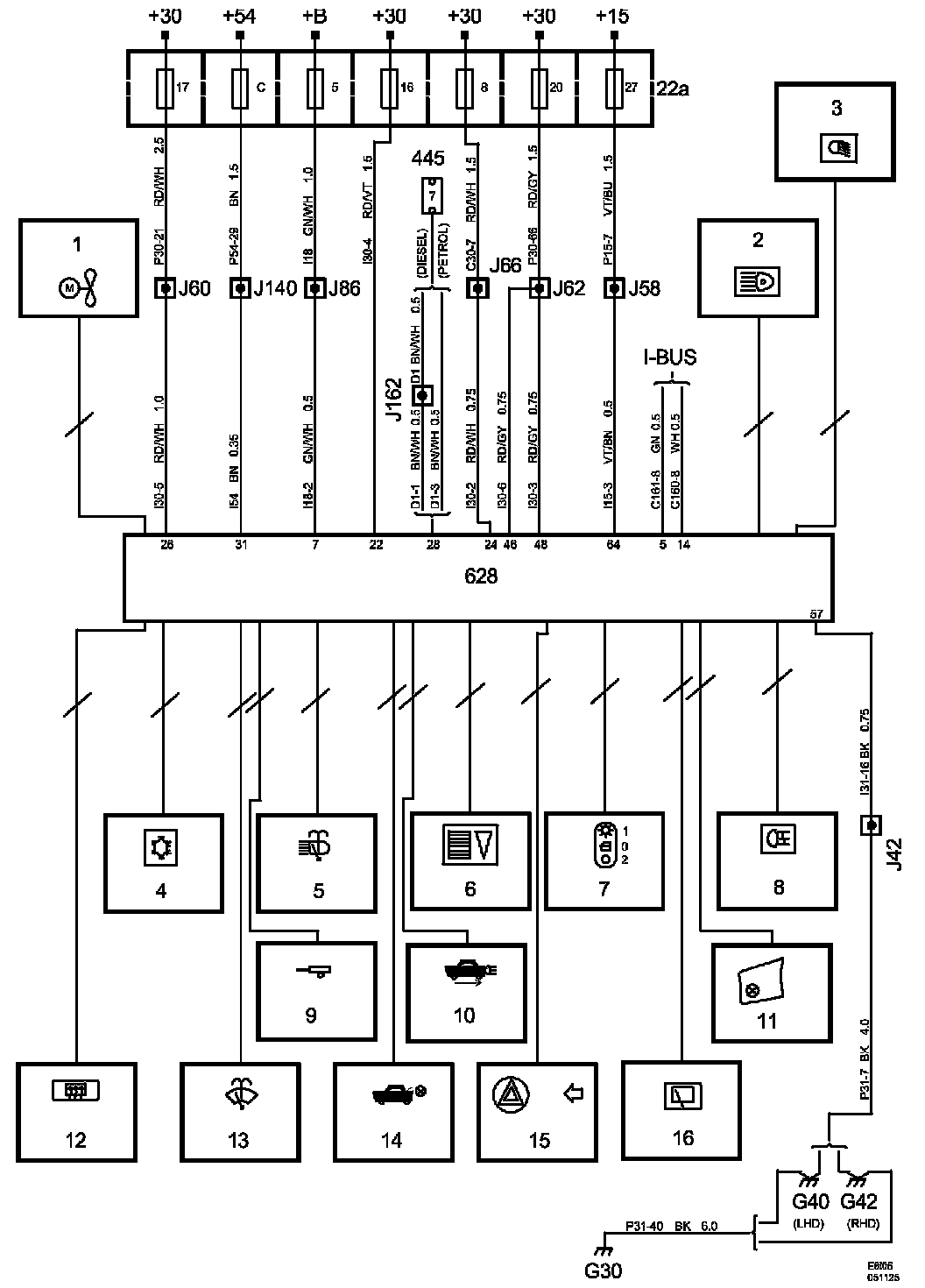

DICE

DICE:

1. Radiator fans, petrol
2. Headlamps
^ Halogen
^ Xenon, market US/CA
^ Xenon, other markets

3. Fog lights
4. Air conditioning, A/C
^ Petrol engine

5. Headlamp washers
6. Lighting for buttons and controls
7. Interior lighting and reading lamps
8. Rear fog lights
9. Trailer connector
^ 4D
^ 5D

10. Reversing lights
11. Glove box light
12. Electrically heated rear window and door mirrors
13. Windscreen wipers
^ Without rain sensor
^ With rain sensor

14. Luggage compartment lighting
15. Direction indicators, hazard flashers
16. Rear window wiper 5D

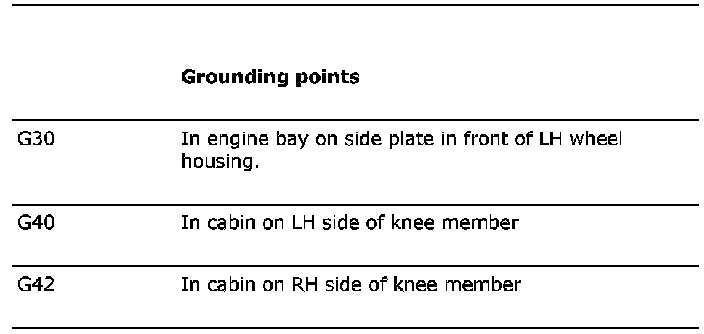

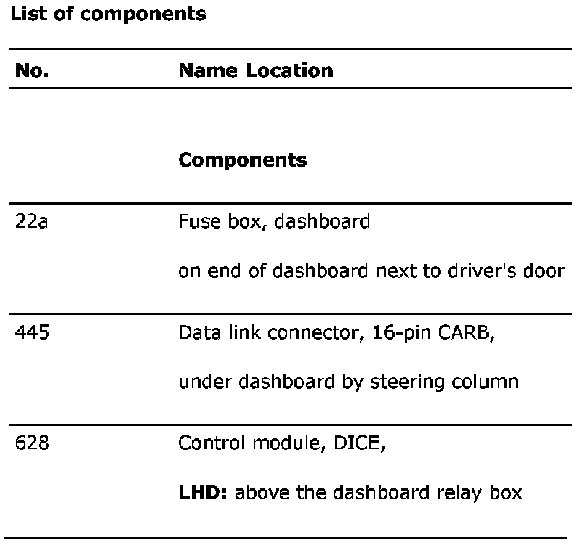

List Of Components (Part 1):

List Of Components (Part 2):

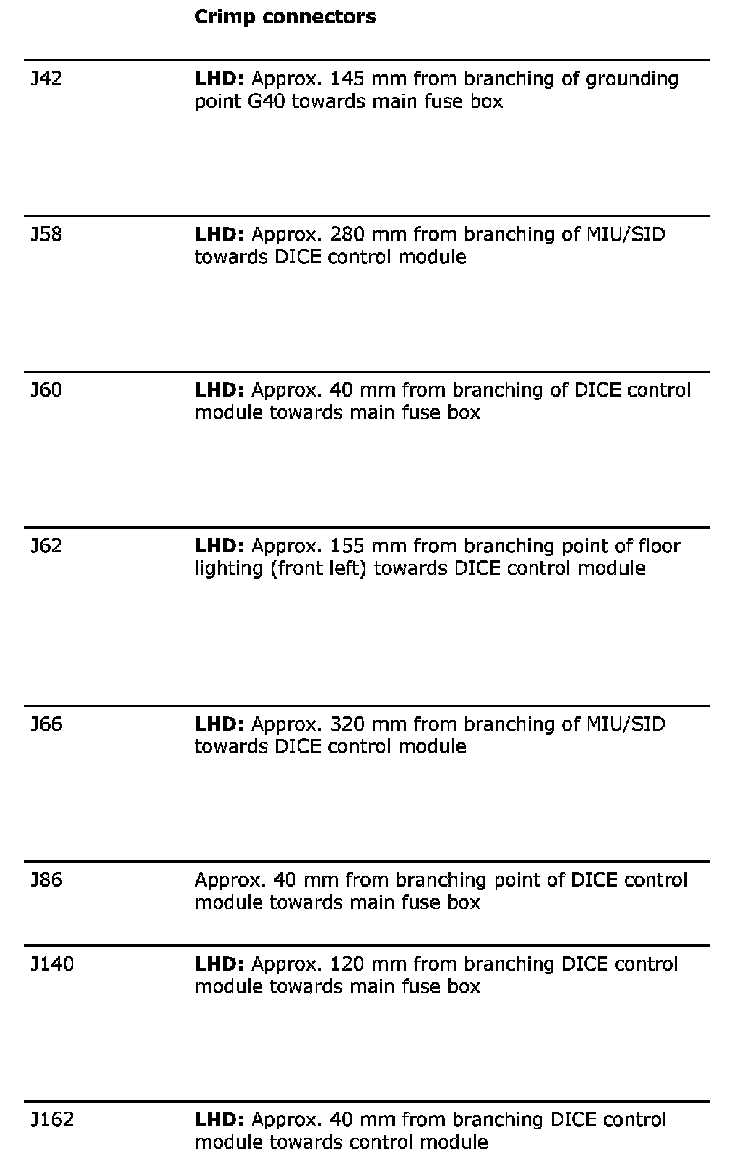

List Of Components (Part 3):

Power Supply Diagrams: The diagrams for the power supplies that may be feeding this system (+30, +15, +54, +X, and +B) can be found at Power and Ground Distribution diagrams. Electrical Diagrams
