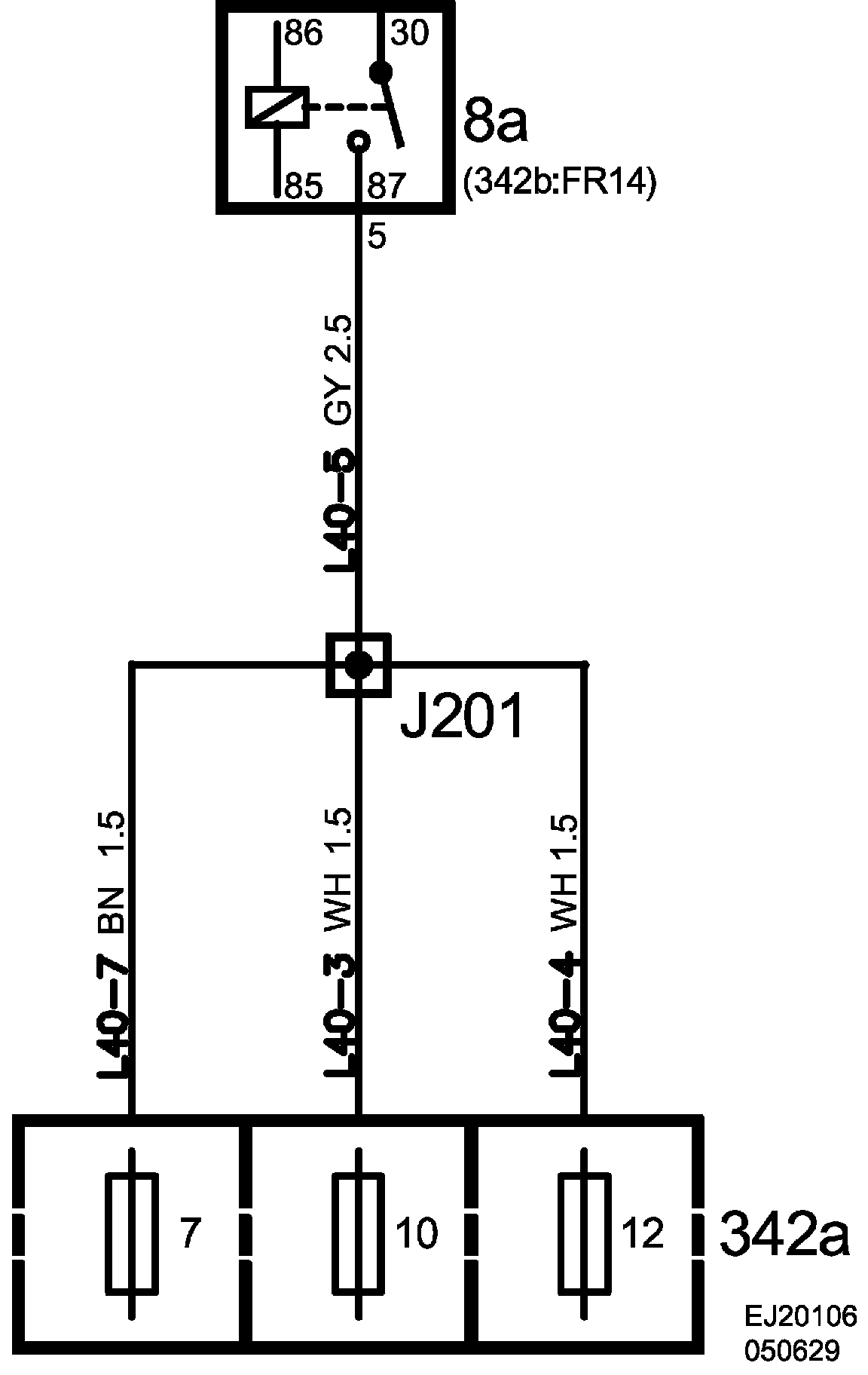

Crimp Connection J201, Front Harness

Crimp Connection J201, Front Harness:

Diagram Legend (List of Components): The names of the components shown on this diagram can be determined via their numbers at the vehicle level component locations/List of Components by Component Number. List of Components In Numerical Order By Component Number
