Automatic Climate Control (ACC)

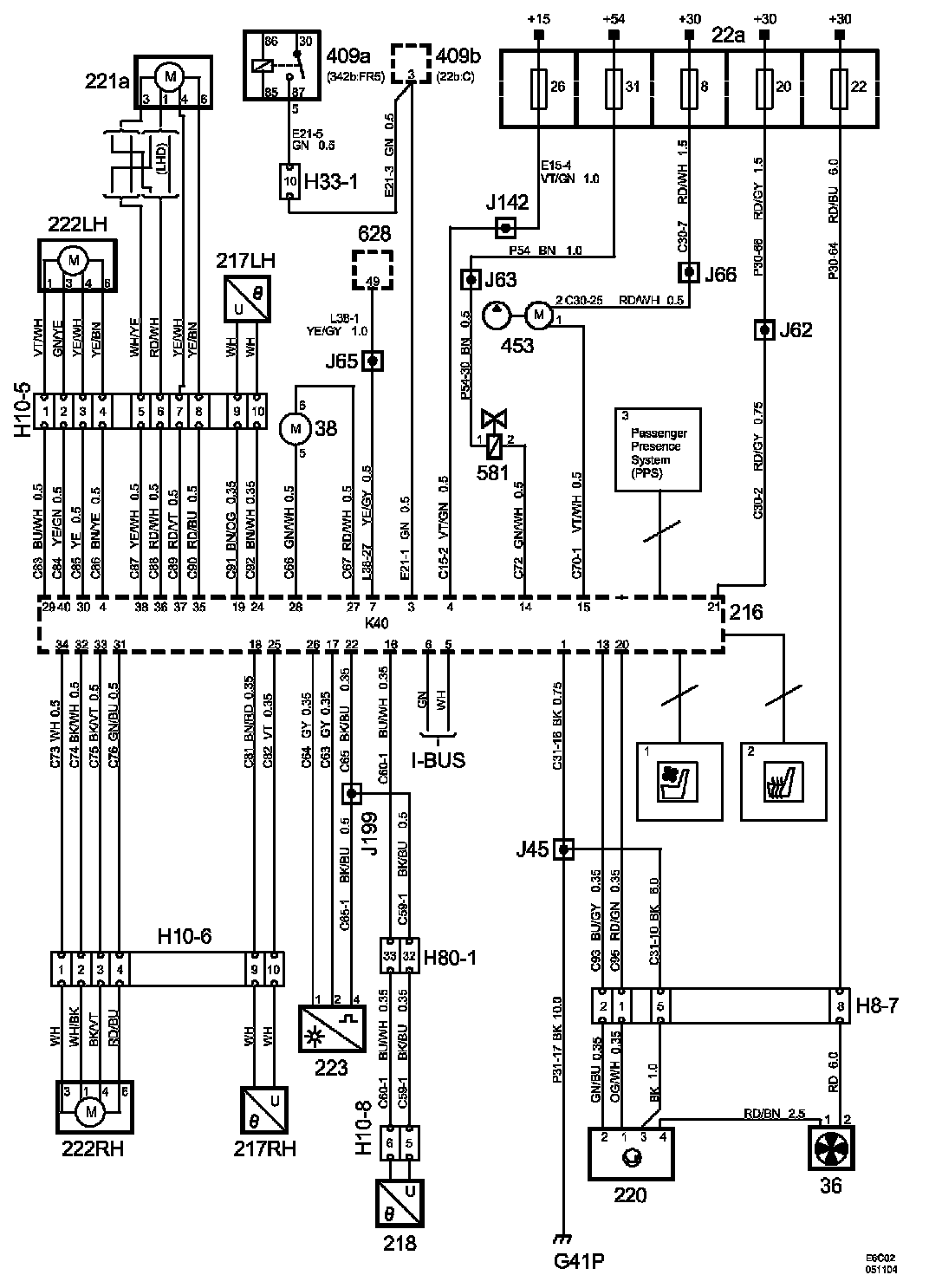

Automatic Climate Control (ACC):

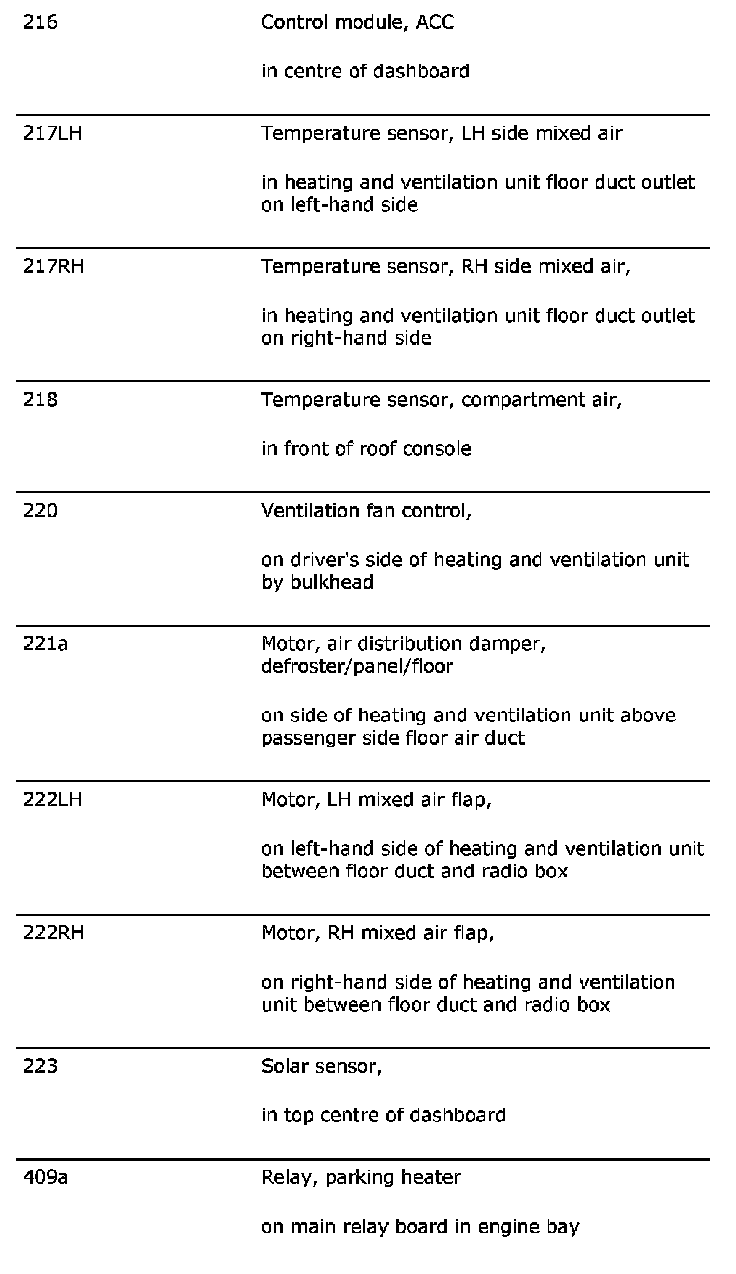

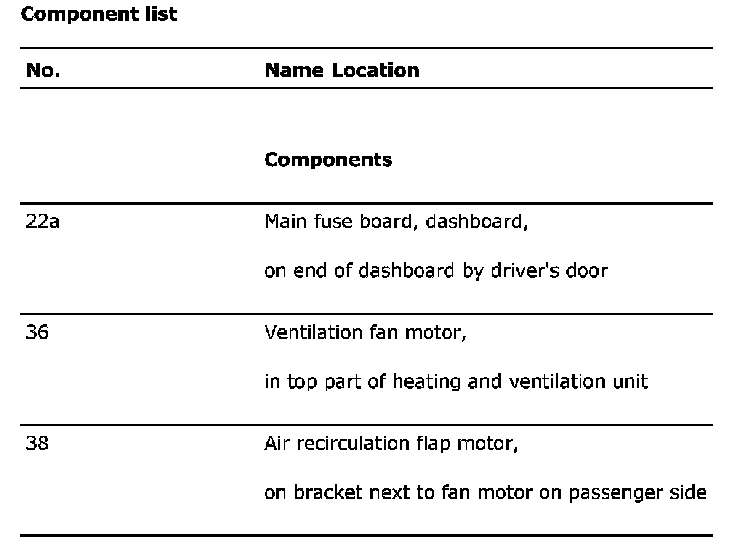

Component List (Part 1):

Component List (Part 2):

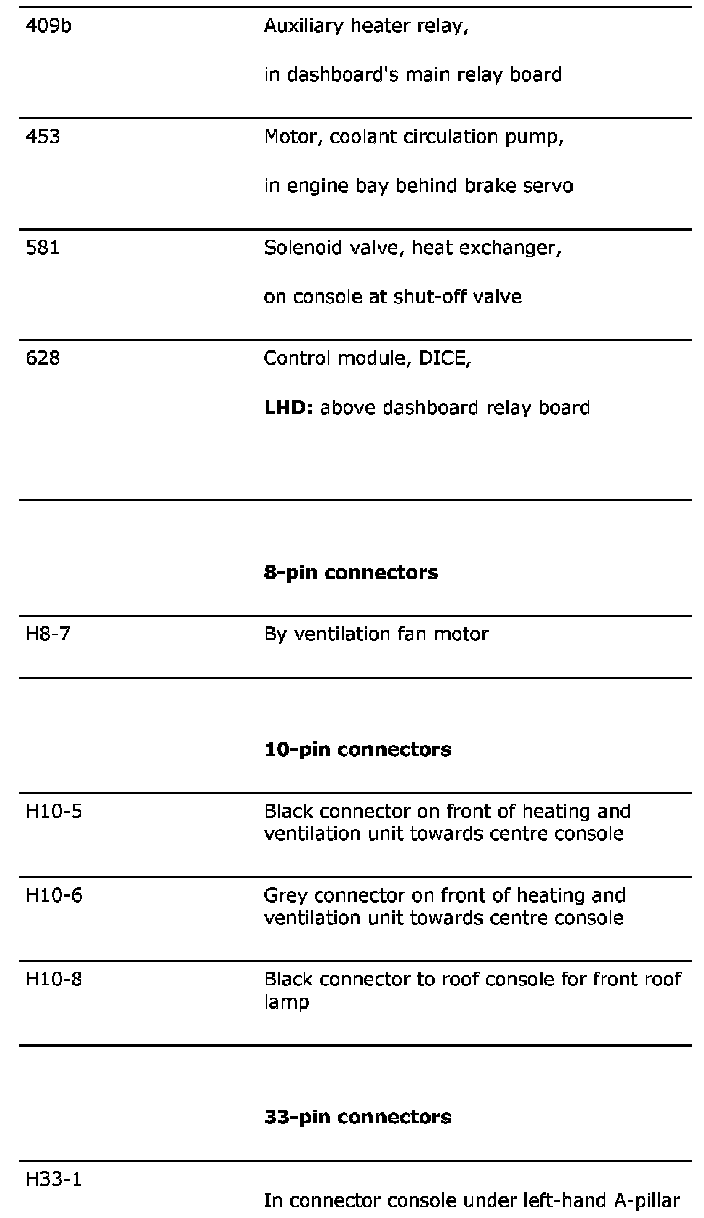

Component List (Part 3):

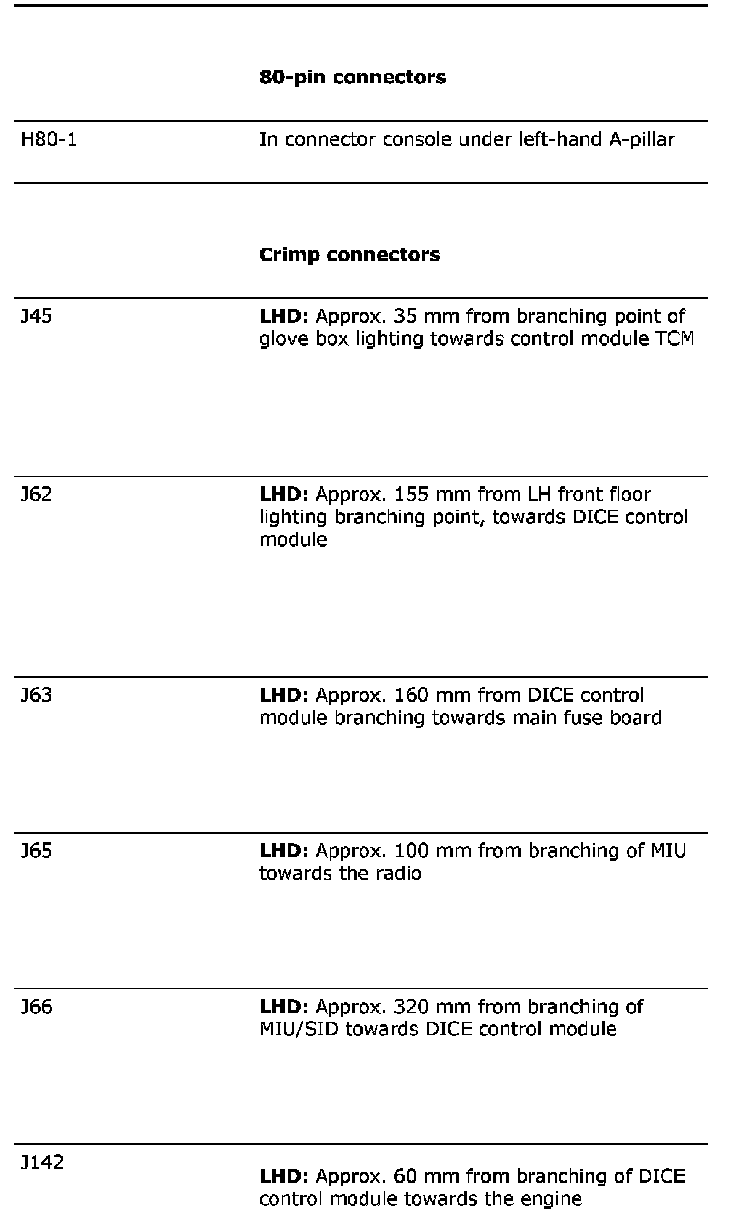

Component List (Part 4):

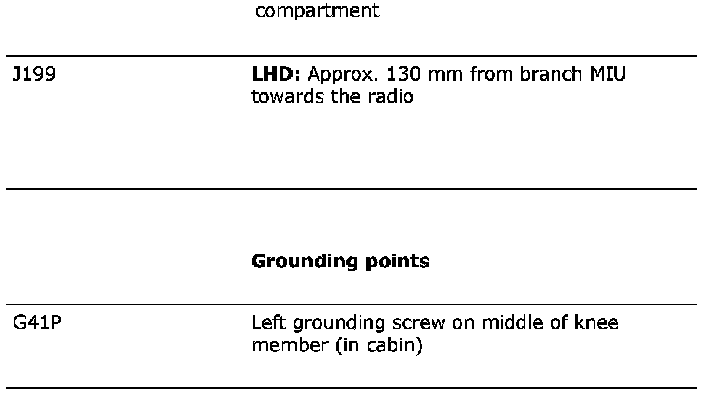

Component List (Part 5):

1. Seat ventilation
2. Heated seats
3. Passenger Presence System (PPS)

Power Supply Diagrams: The diagrams for the power supplies that may be feeding this system (+30, +15, +54, +X, and +B) can be found at Power and Ground Distribution diagrams. Electrical Diagrams
