Electrically Adjustable Door Mirrors With Memory (PMM), LHD

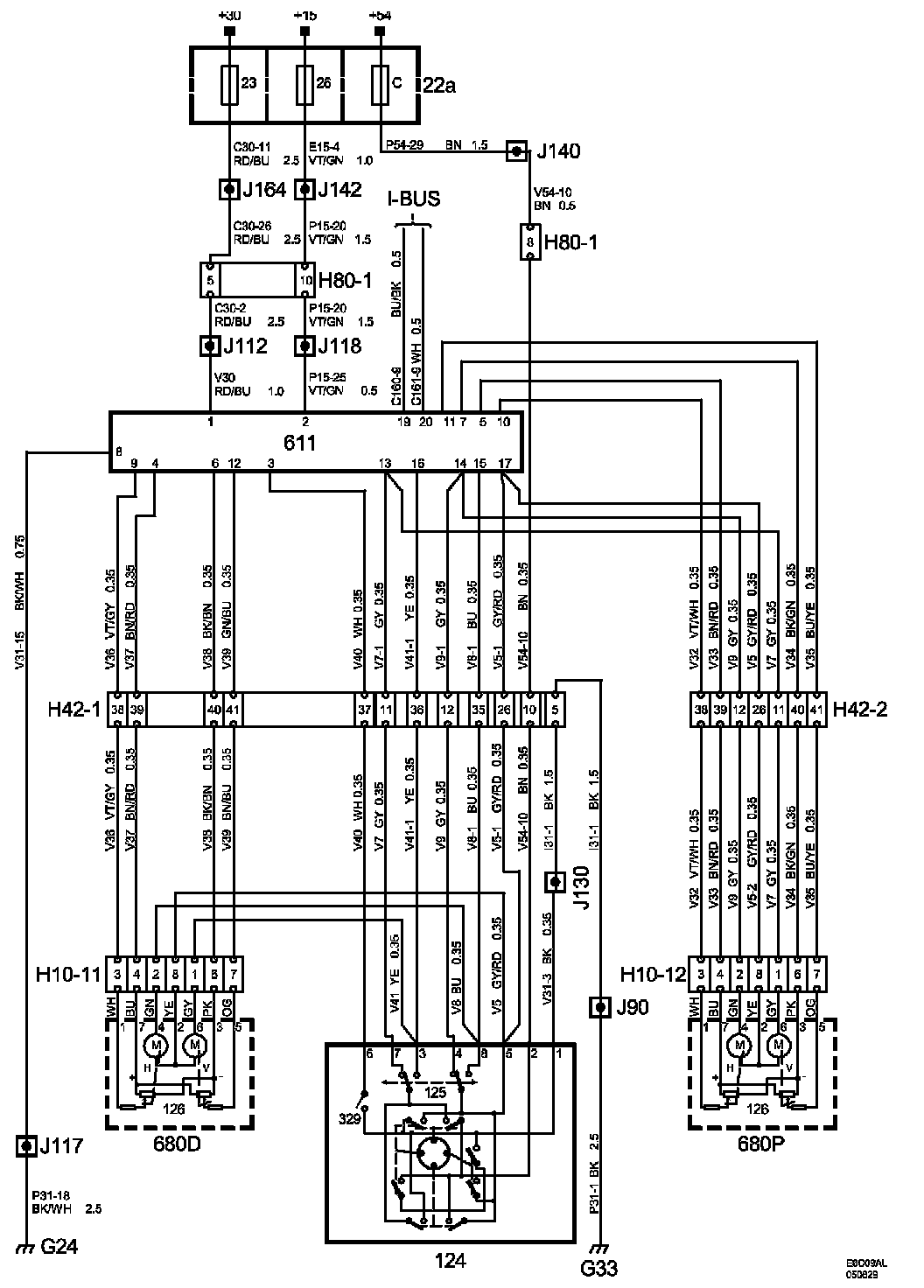

Electrically Adjustable Door Mirrors With Memory (PMM), LHD:

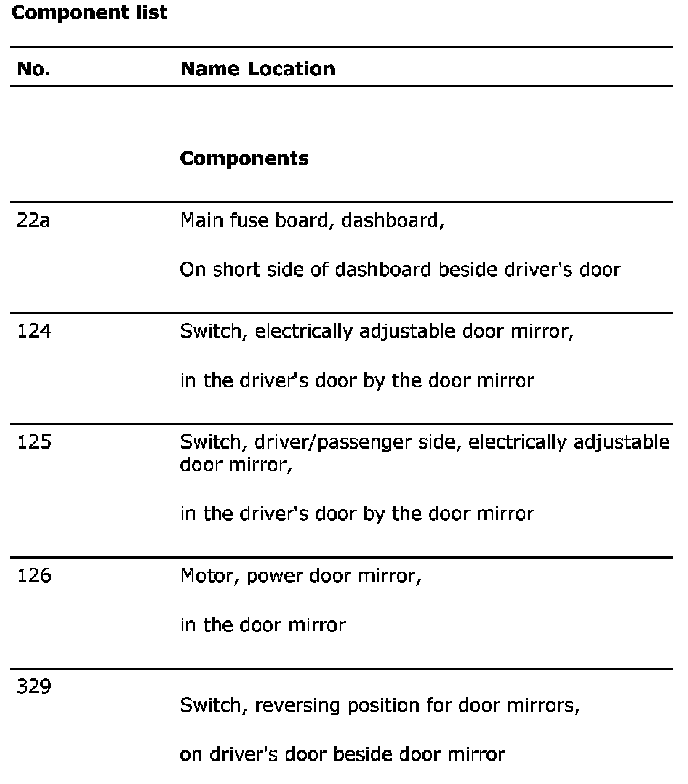

Component List (Part 1):

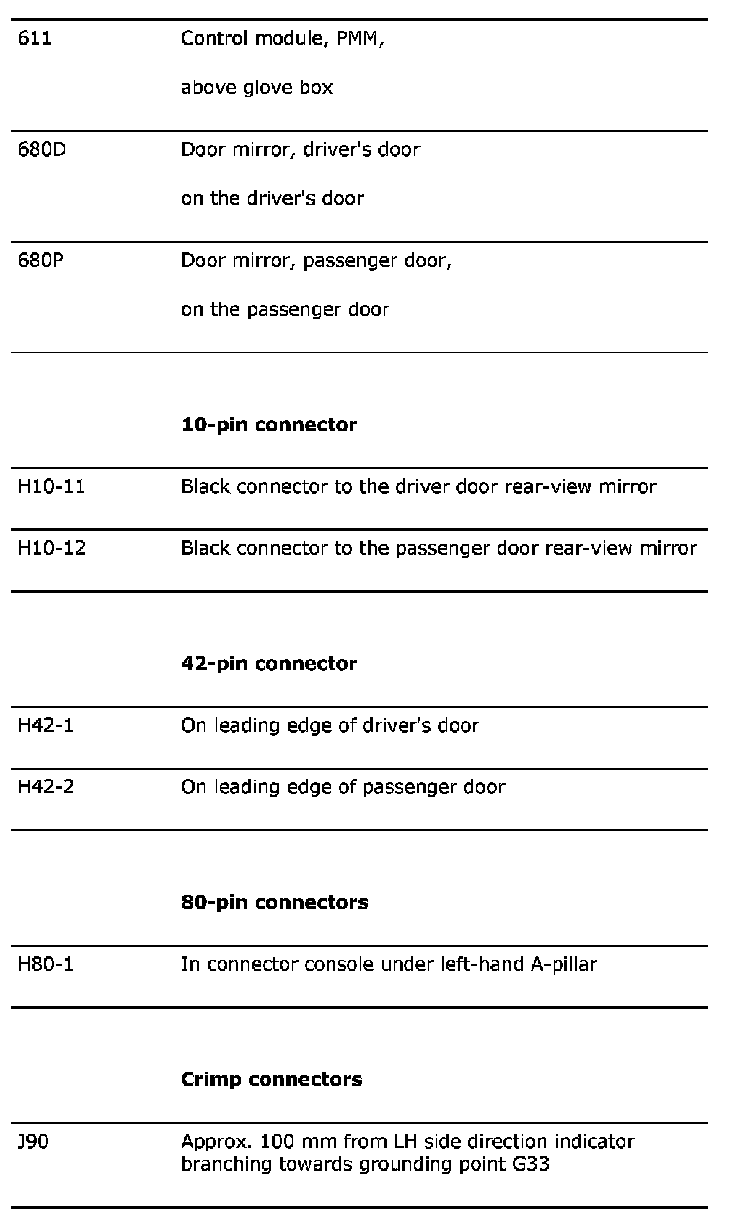

Component List (Part 2):

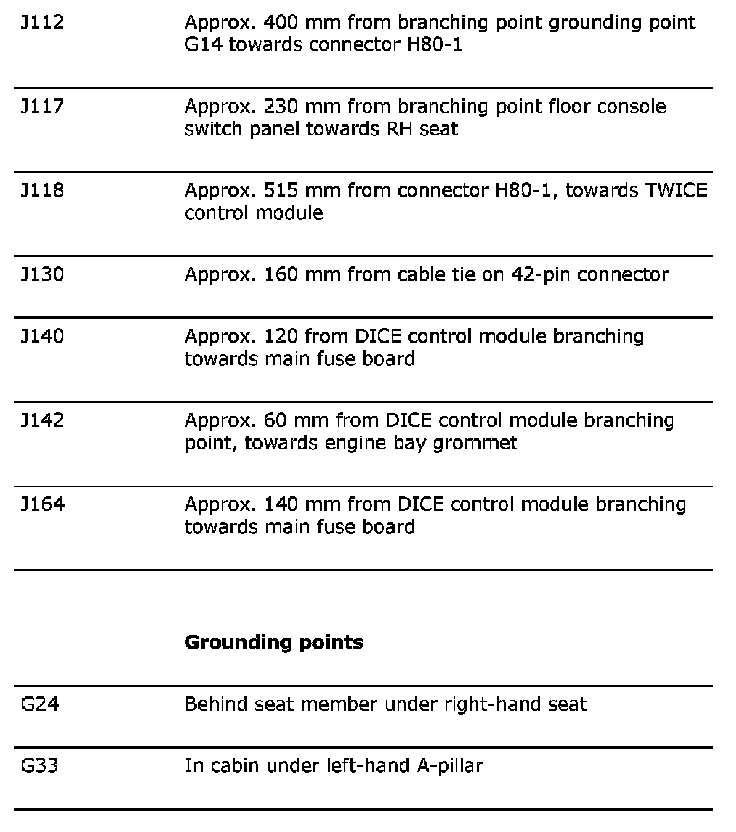

Component List (Part 3):

Power Supply Diagrams: The diagrams for the power supplies that may be feeding this system (+30, +15, +54, +X, and +B) can be found at Power and Ground Distribution diagrams. Electrical Diagrams
