Crankshaft Position Sensor: Locations

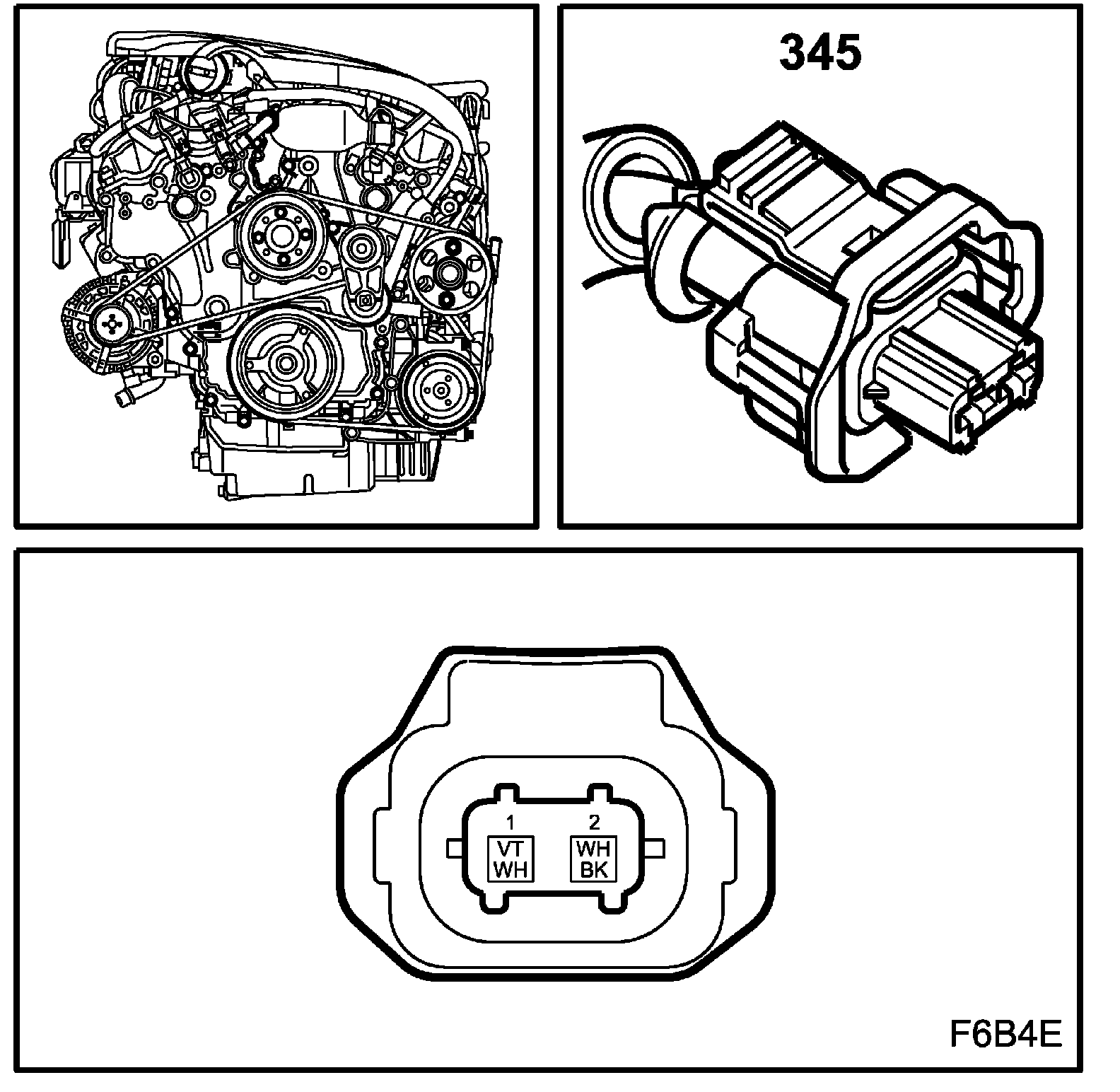

Location: at bottom of rear bank toward gearbox side

Crankshaft Position Sensor (345):
