Crimp Connection J211, Main Wiring Harness



Location

4D: Approx. 250 mm from branching point front left door towards roof light unit

5D: Approx. 250 mm from branching point front left door towards roof light unit

CV: Approx. 200 mm from branching point front left door towards roof light unit

Crimp J211, Main Wiring Harness:

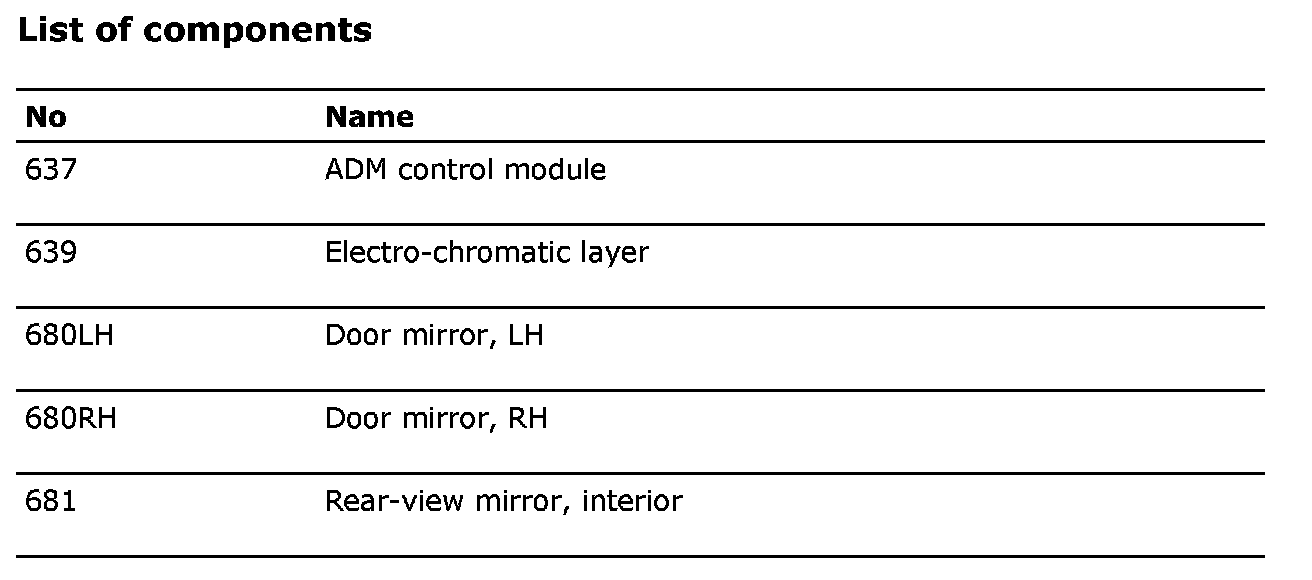

List Of Components:
