Crimp Connection J201, Main Wiring Harness Convertible



Location: Approx. 130 mm from branching point grounding point G48 towards connector H10-7

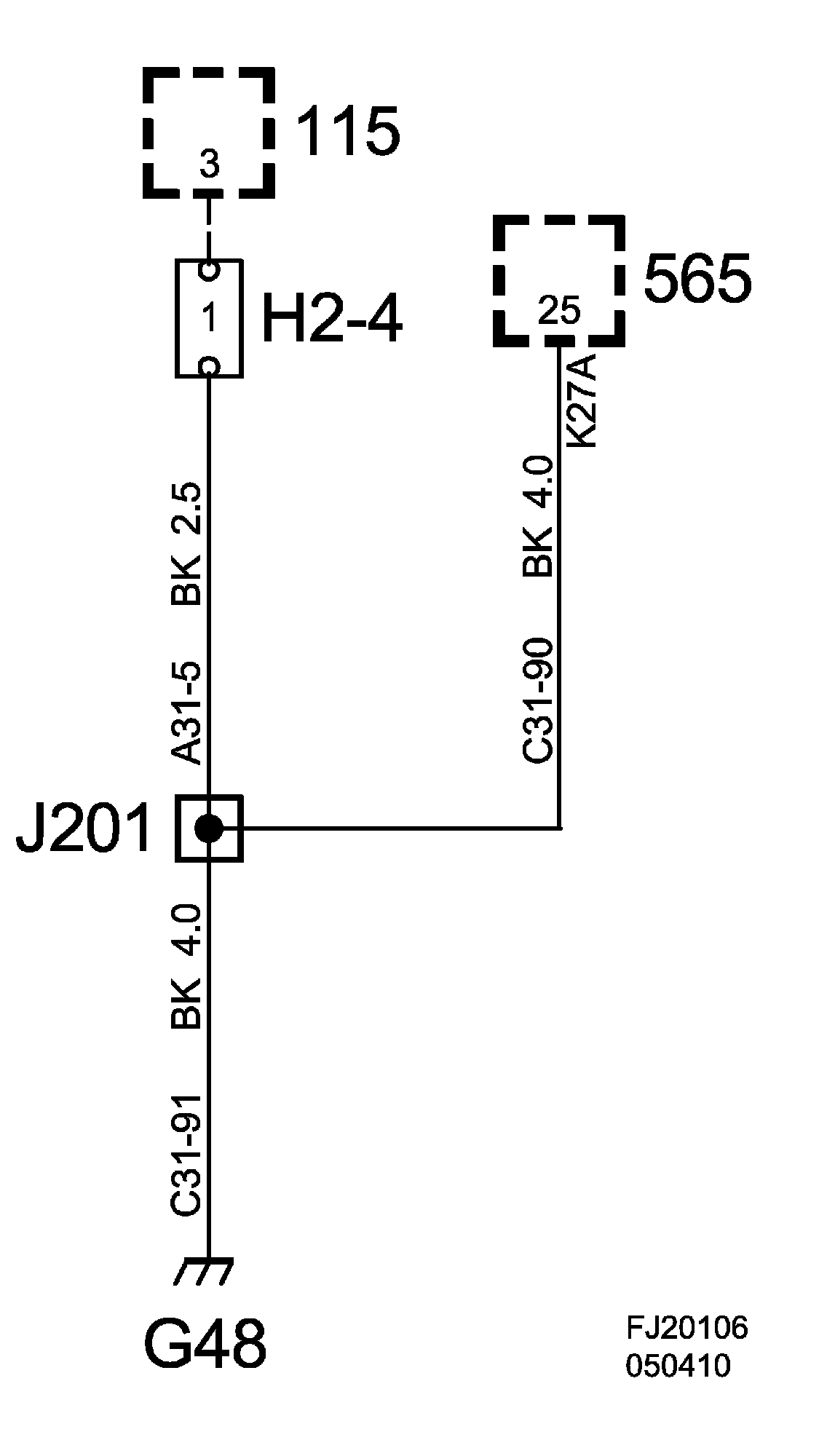

Crimp J201, Main Wiring Harness:

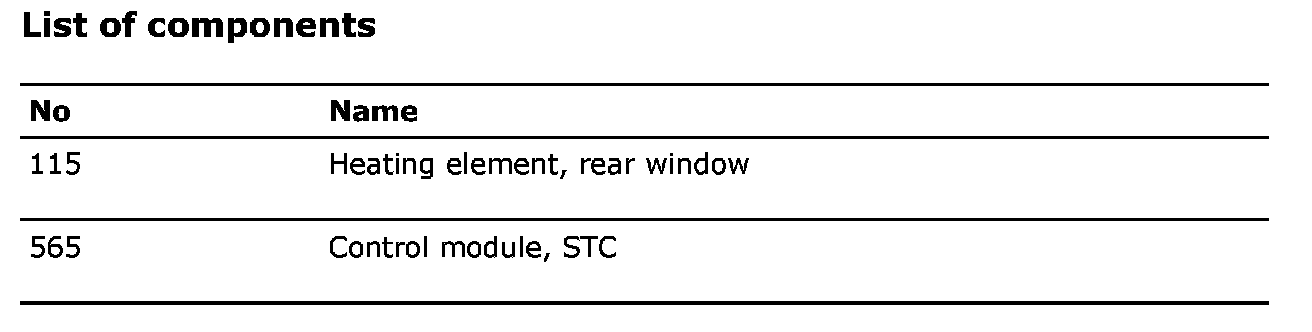

List Of Components:
