Home
>>
Saab
>>
2006
>>
9-3 (9440) L4-2.0L Turbo (2.0 T)
>>
Repair and Diagnosis
>>
Sensors and Switches
>>
Sensors and Switches - Wiper and Washer Systems
>>
Washer Fluid Level Switch
>>
Description and Operation
Washer Fluid Level Switch: Description and Operation
Washer Fluid Level Switch
(195)

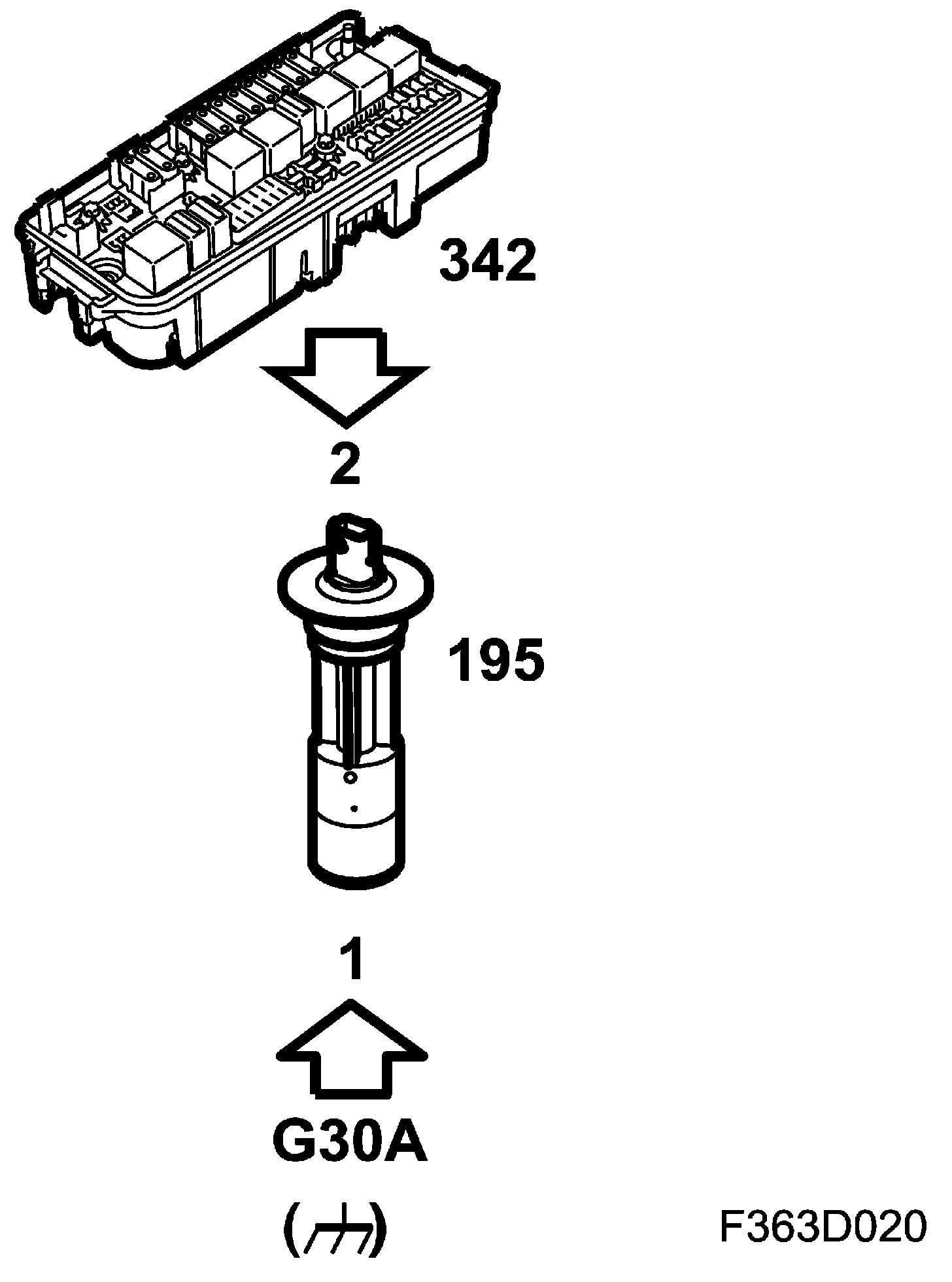

Location
Main task
Inform the driver that the washer fluid level is low.

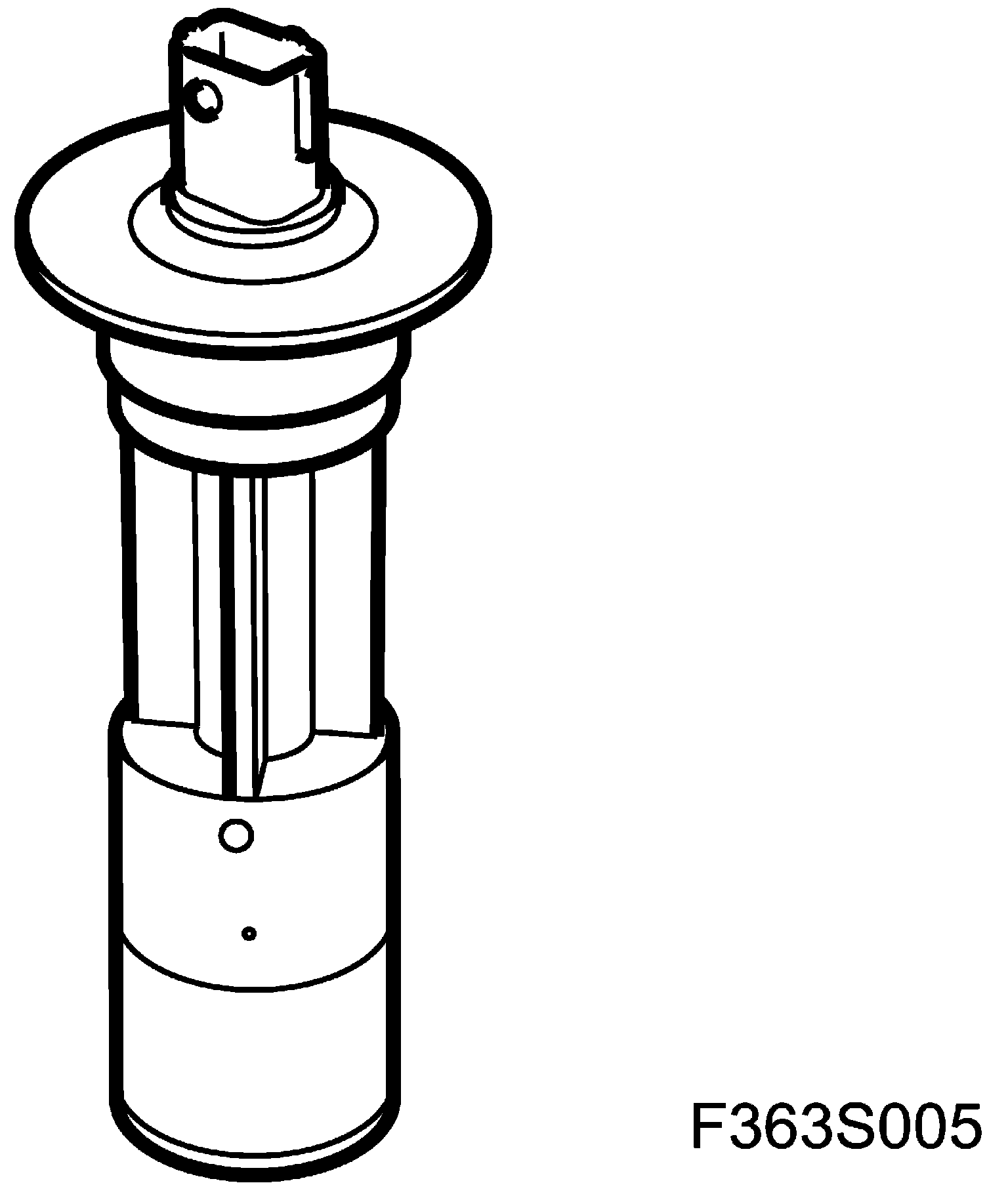

Type
Float with corresponding switch.

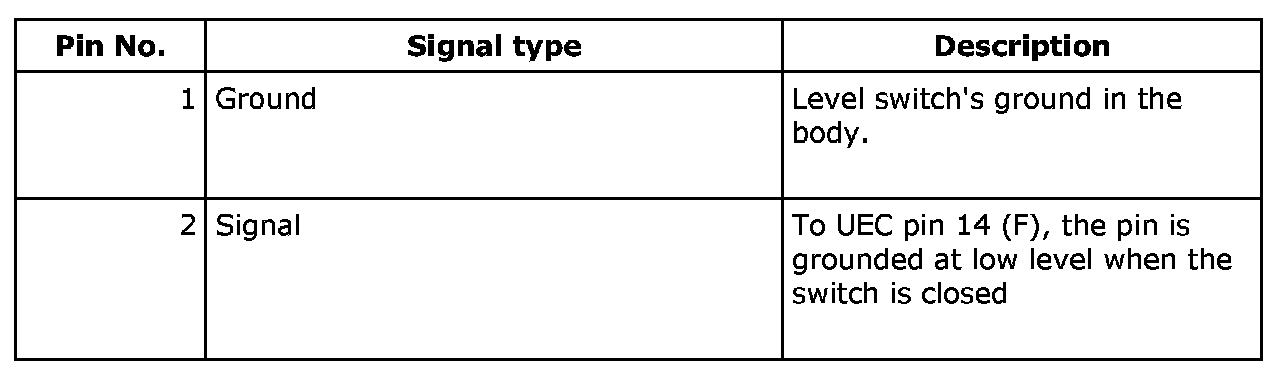

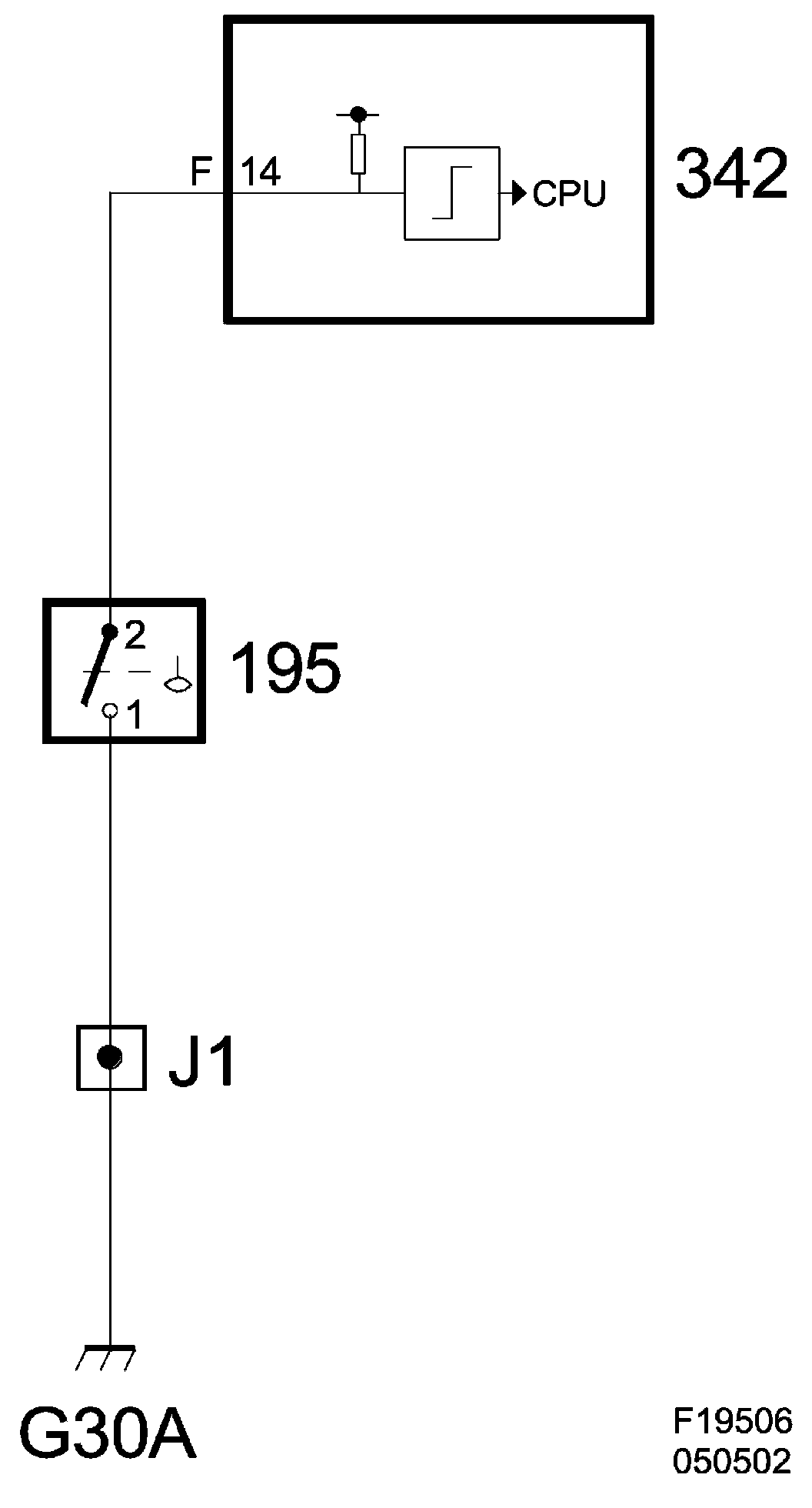

Connection
