Home >> Saab >> 2006 >> 9-3 (9440) L4-2.0L Turbo (2.0 T) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Instrument Panel >> Fuel Gauge Sender >> Specifications

Fuel Gauge Sender: Specifications

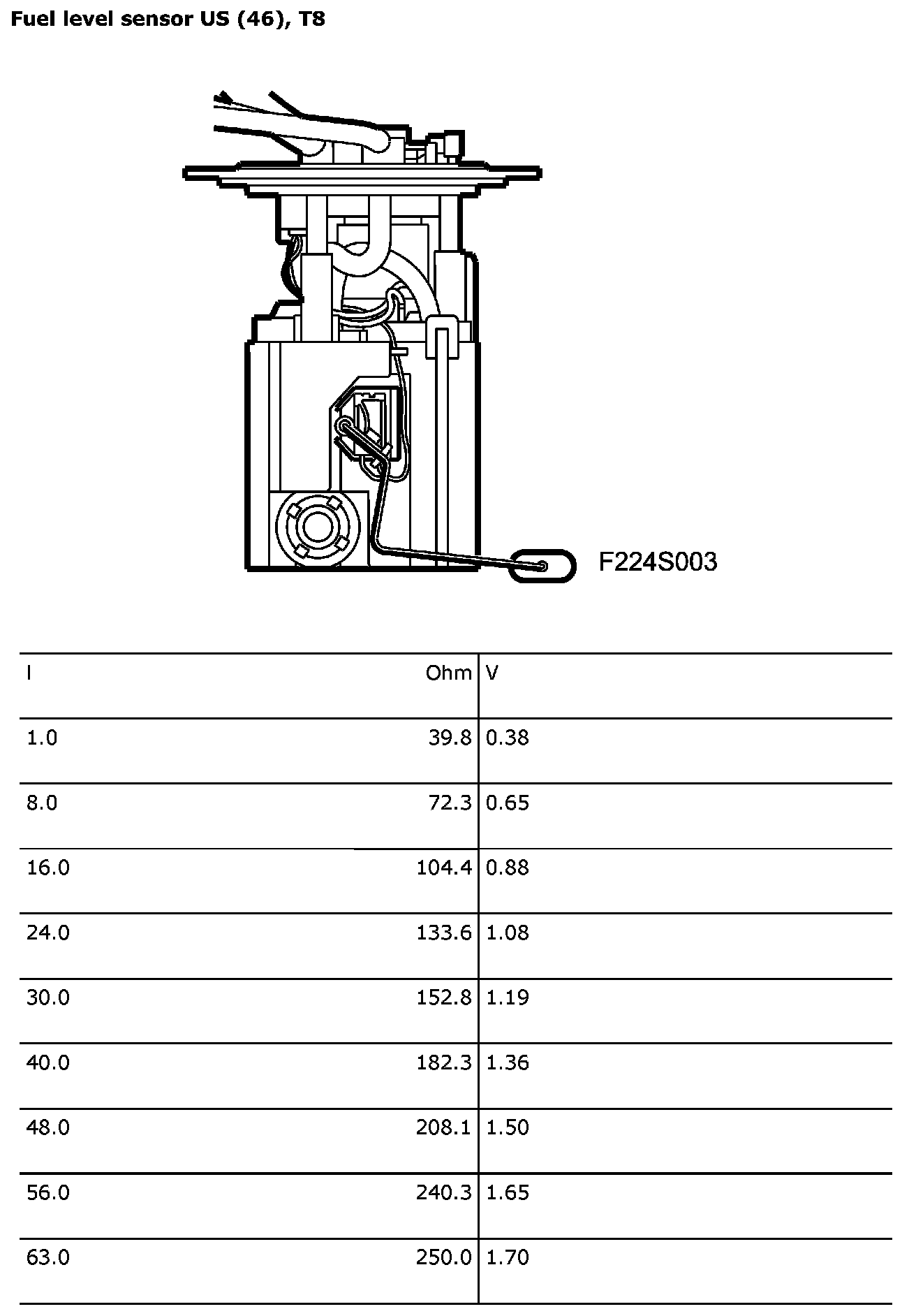

Fuel Level Sensor US (46), T8:
