Seat Occupant Classification Module - Air Bag: Description and Operation

Control Module, PPS (591)

Location

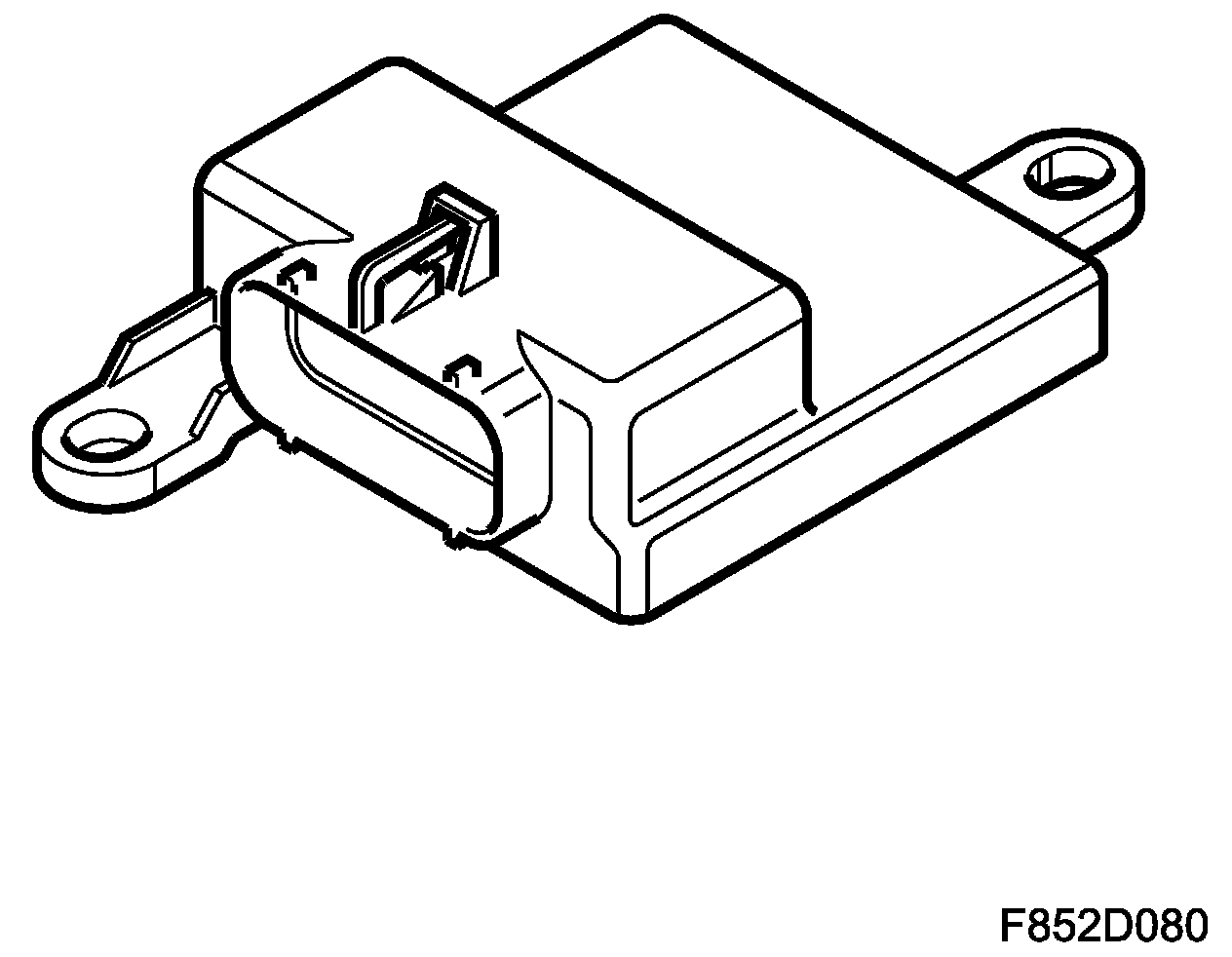

Control module, PPS (591)





Main task
The control module governs the indicator lamps, passenger airbag/side airbag ON/OFF, and monitors all the component parts in the system. The values are filtered through a calculation algorithm in the control module that takes into account pressure, tension and temperature and the weight can be calculated.

Type
The control module contains a microprocessor, ROM and EEPROM. The control module sends information via a serial communication cable to ACM (331).

Connect

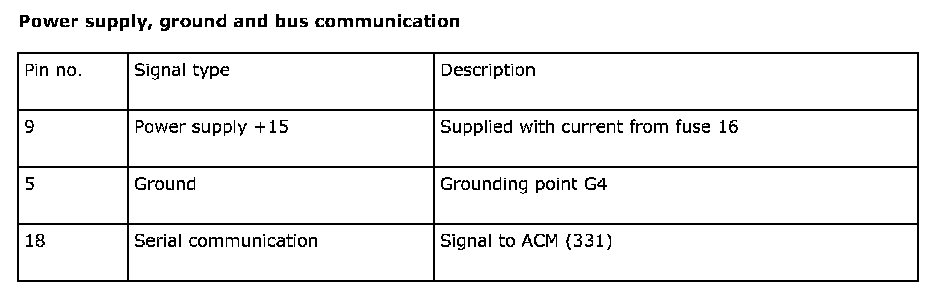

Wiring diagram, power supply
