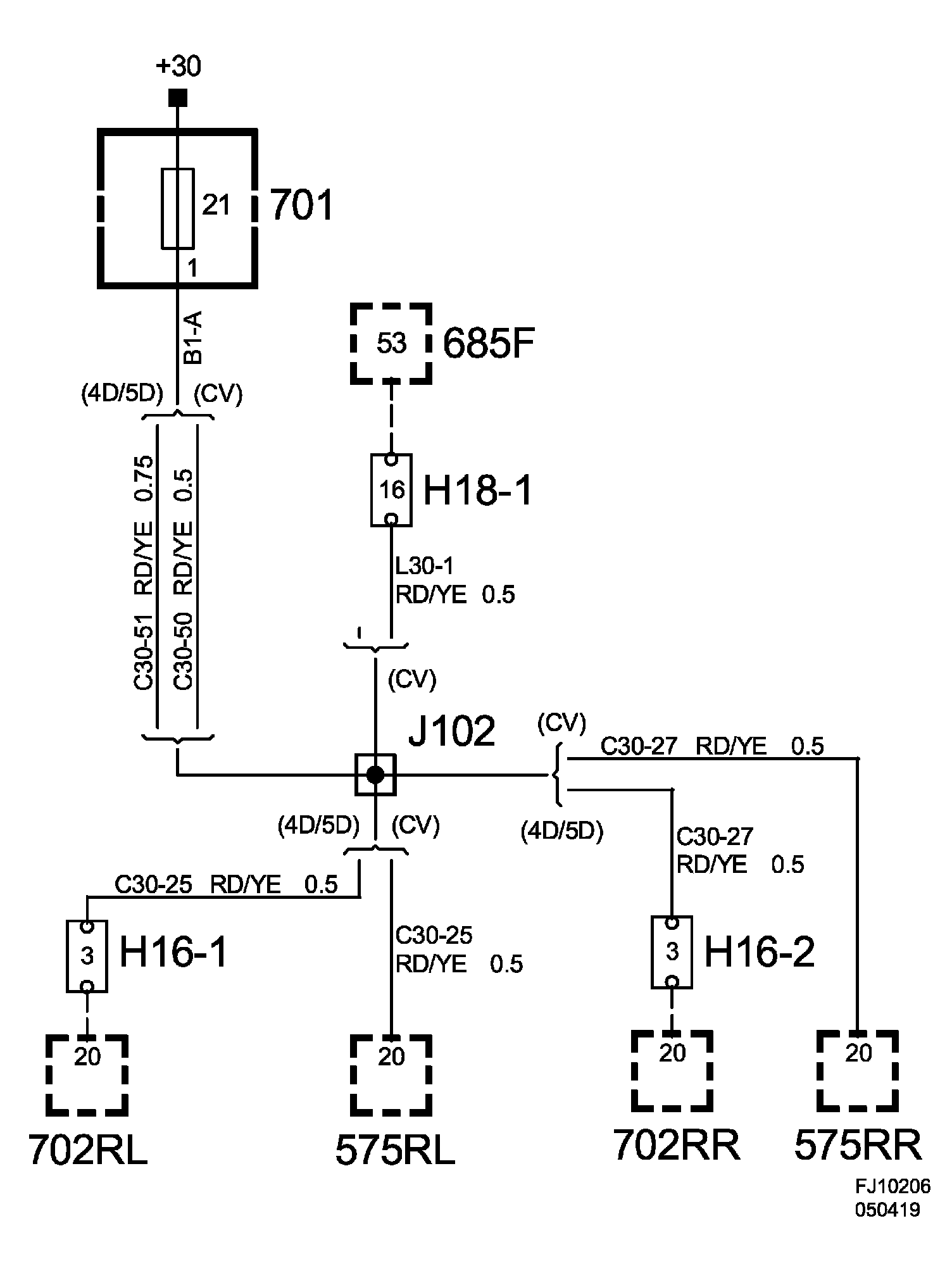

Crimp Connection J102, Main Wiring Harness

Location:

4D: --

5D: Approx. 280 mm from branching point seat belt tensioner, left-hand B-pillar, towards rear seat

CV: In the branching point to the forward amplifier
