Grounding Point G48, CV

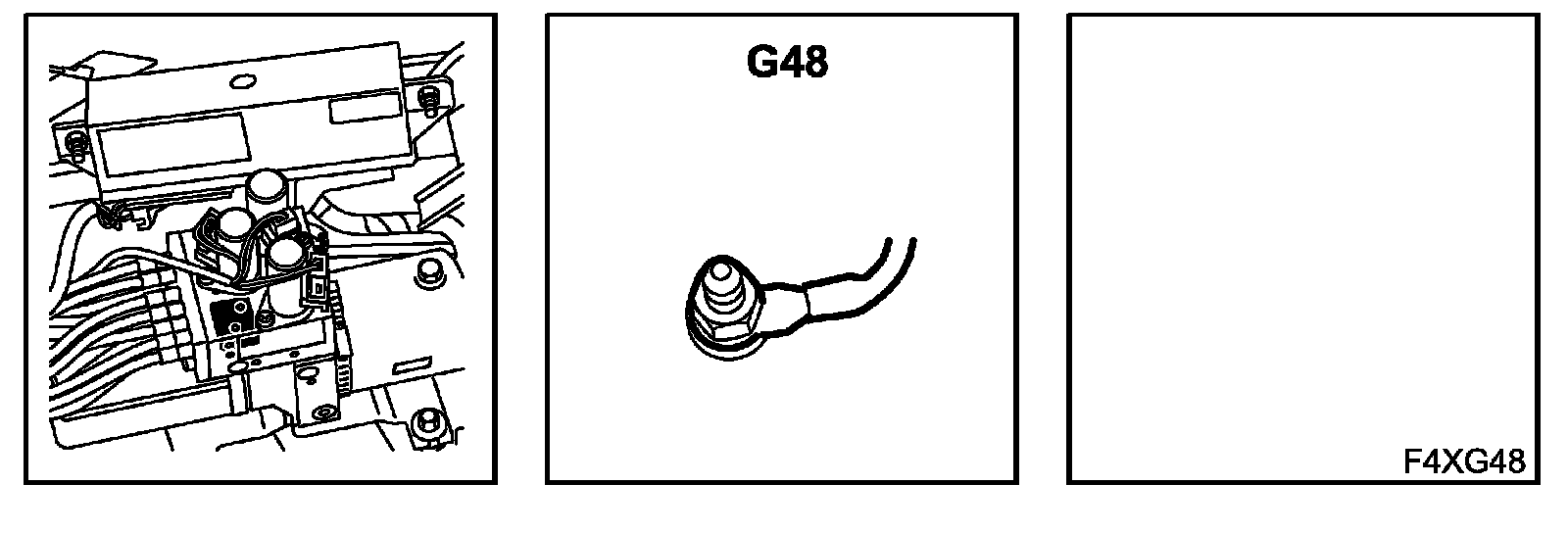

Location: by the STC control module

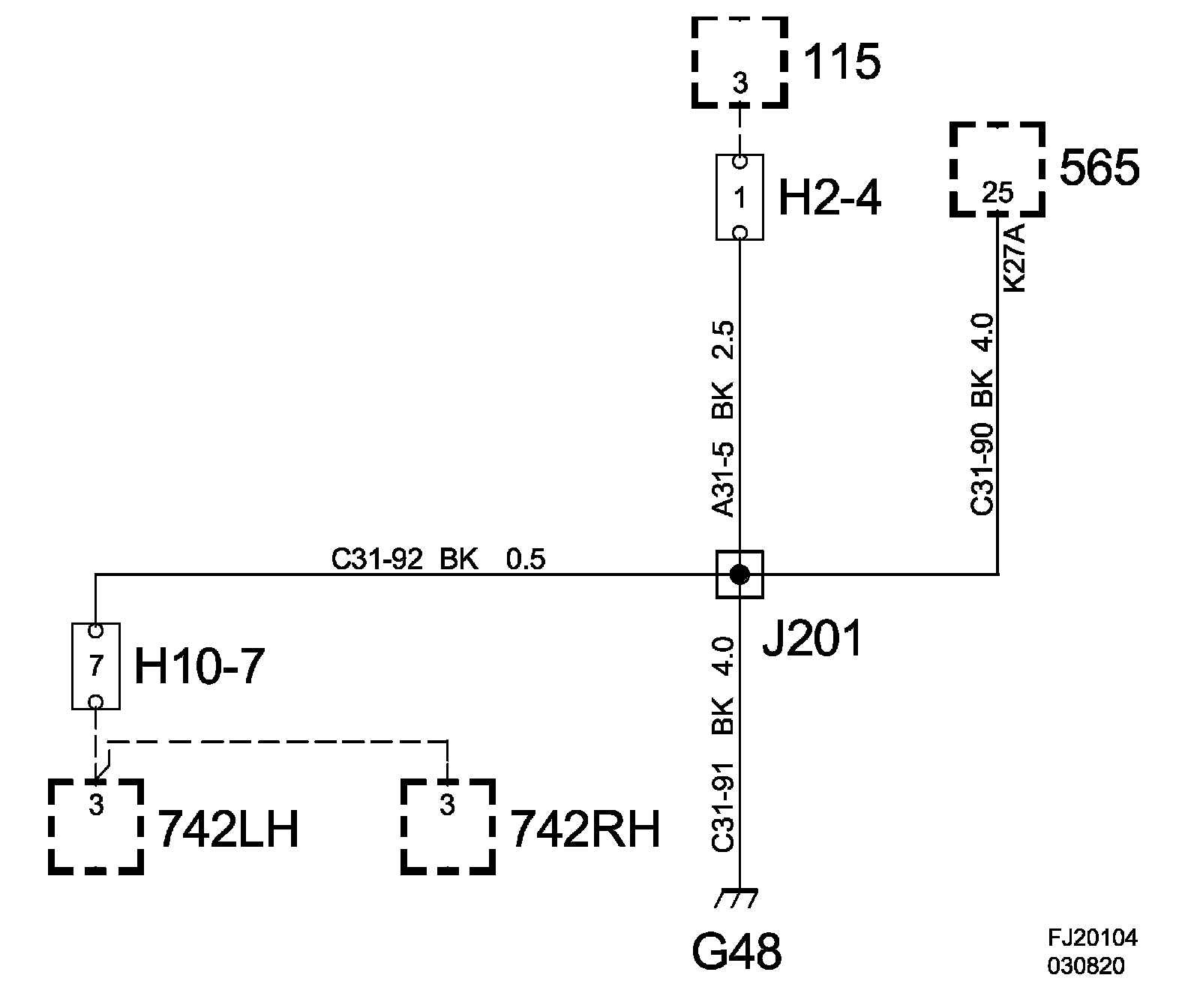

Grounding Point G48:

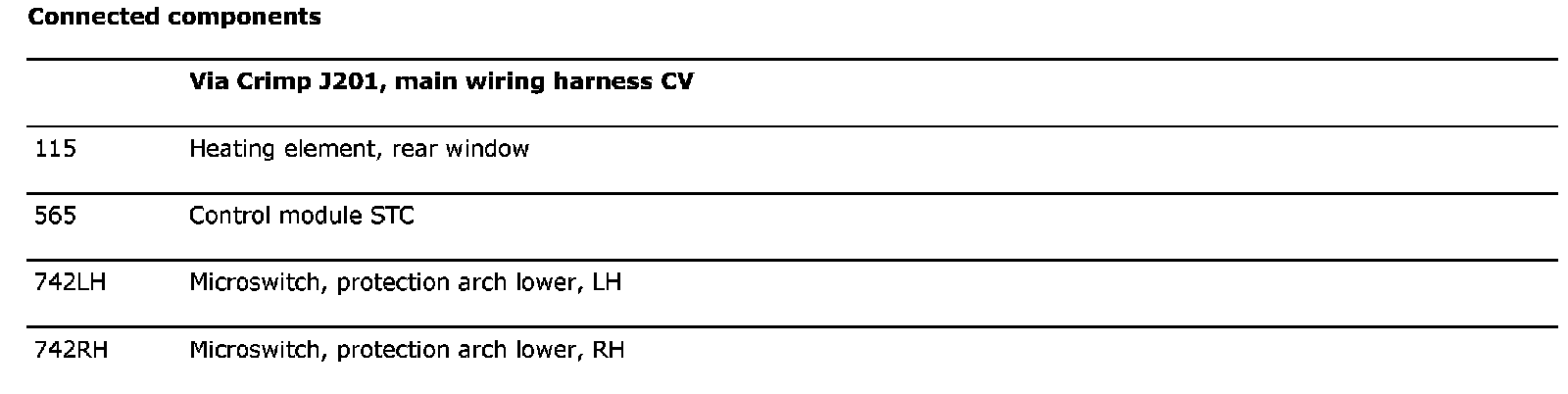

Connected Components:
