Lamp, Front Roof Lighting (50F), 4D/5D

Lamp, Front Roof Lighting (50F), 4D/5D

Main task
Used as general front roof lighting.

Type
Two lamps and a switch are integrated in the front roof console. The switch has three positions, 1, 0 and 2. In the center position (0), lighting is controlled automatically based on the doors and key position. In the rear position (1), the lights are off. Lights are continuously on in the front position (2).

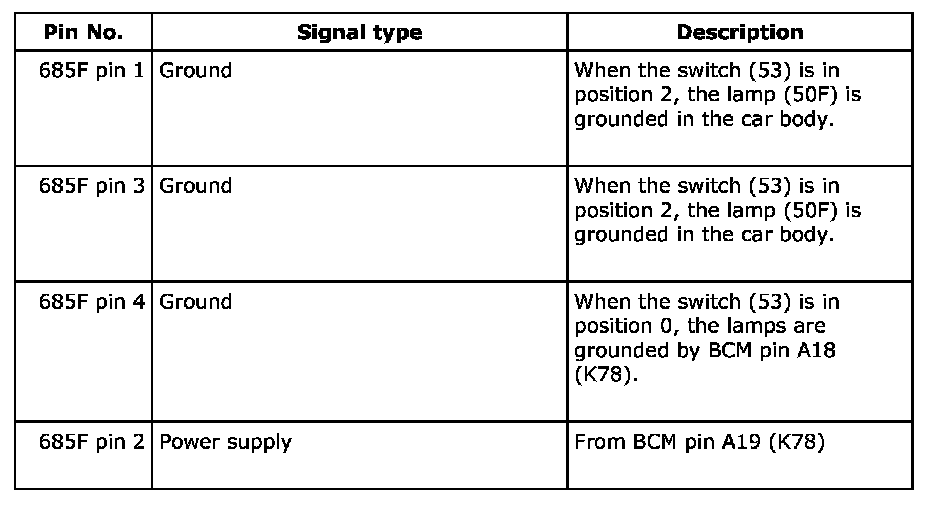

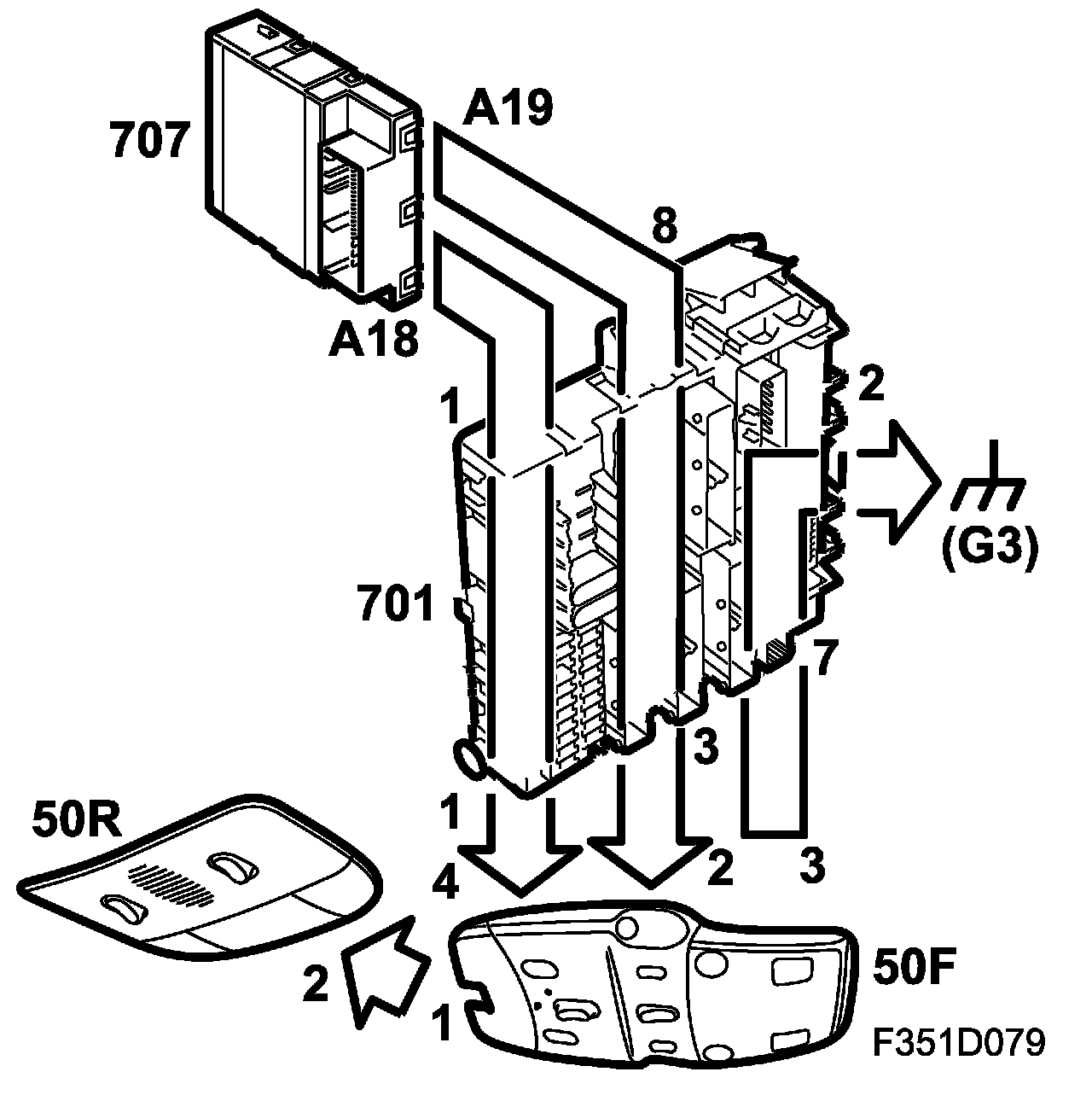

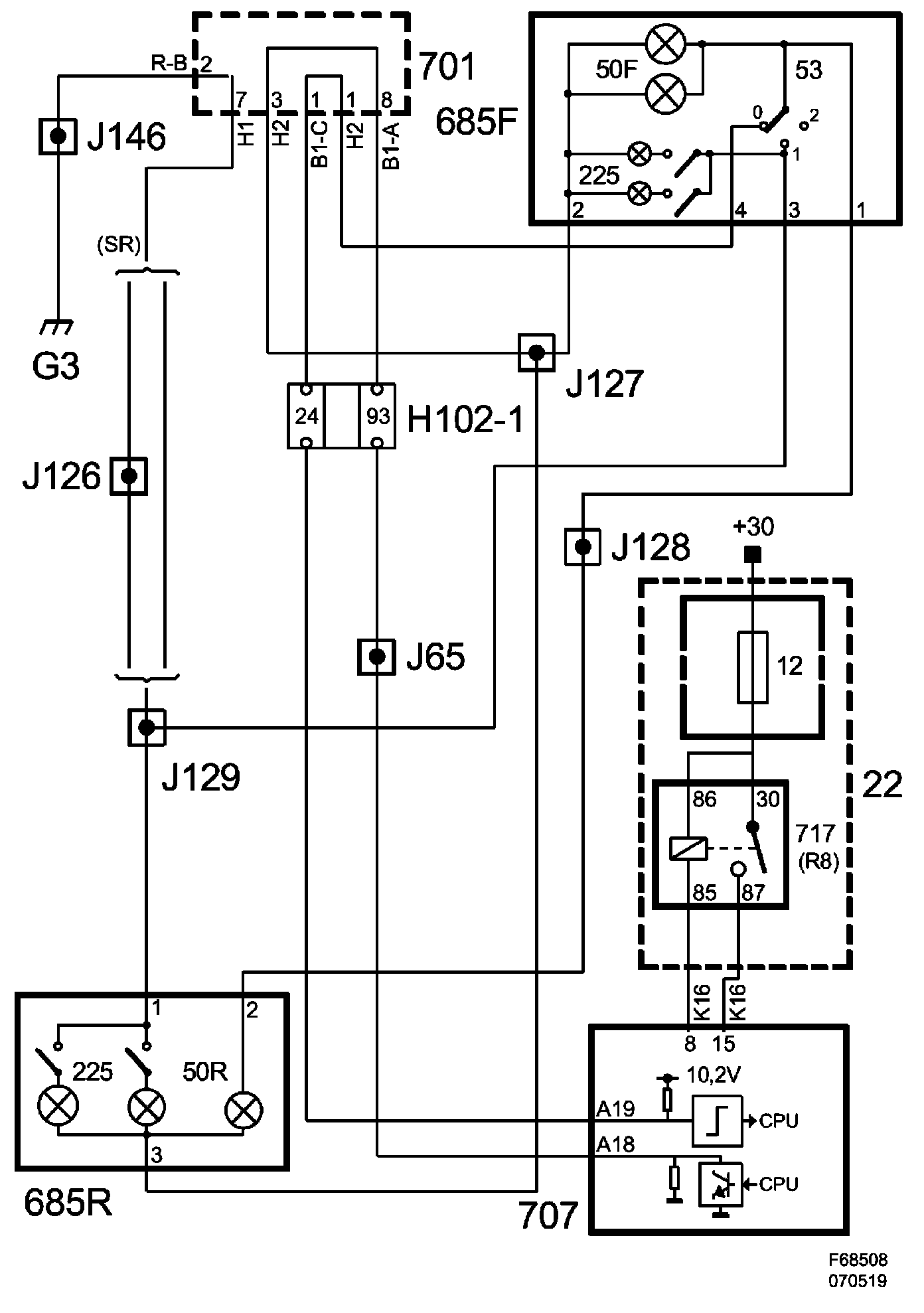

Connection
Two lamps and a switch are integrated in the front roof console. The switch has three positions, 1, 0 and 2. In the center position (0), lighting is controlled automatically based on the doors and key position. In the rear position (1), the lights are off. Lights are continuously on in the front position (2).
