Home >> Saab >> 2006 >> 9-3 (9440) L4-2.0L Turbo (2.0 T) >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Locations

Control Assembly: Locations



Automatic Climate Control (216)

Location: in the center of the dashboard

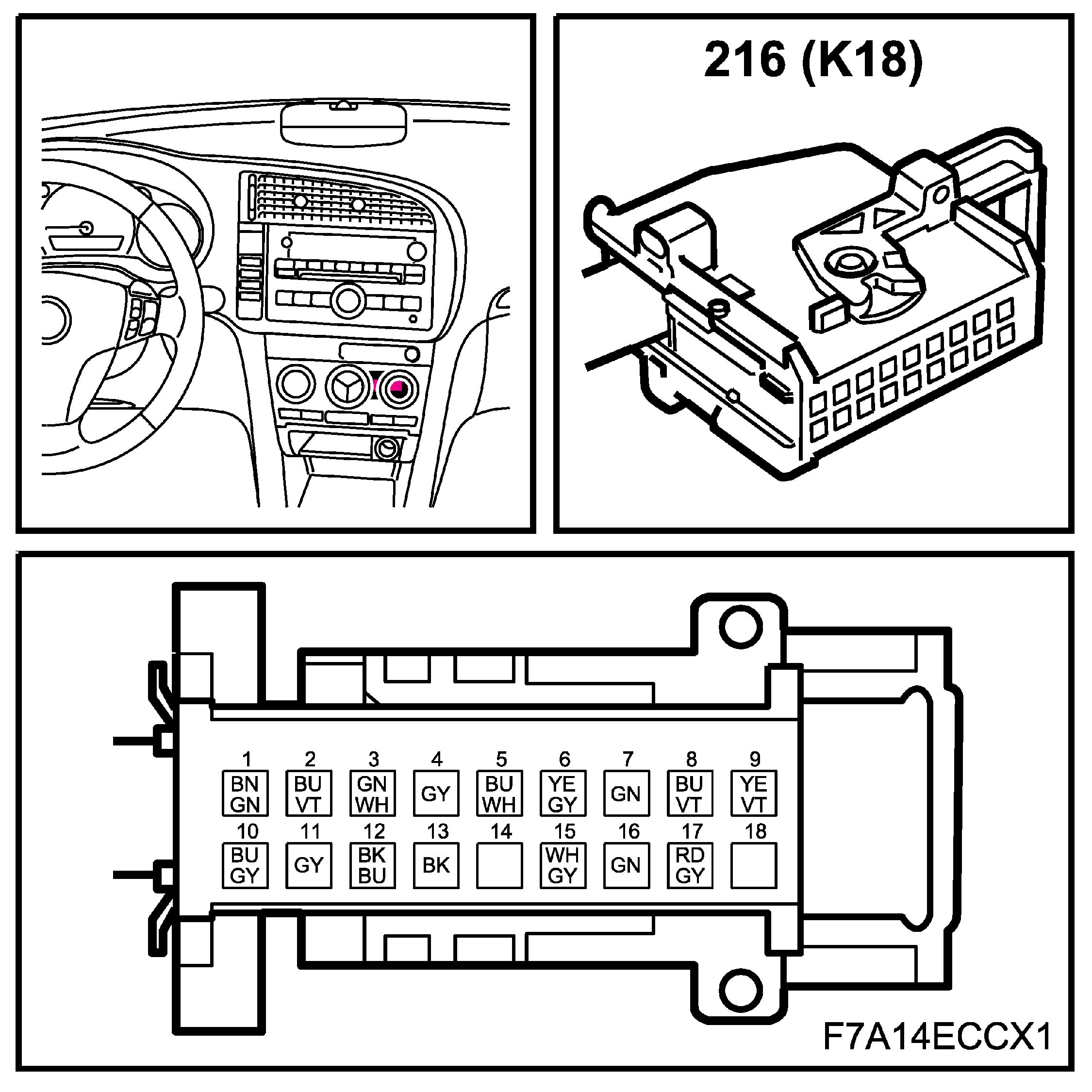

K18

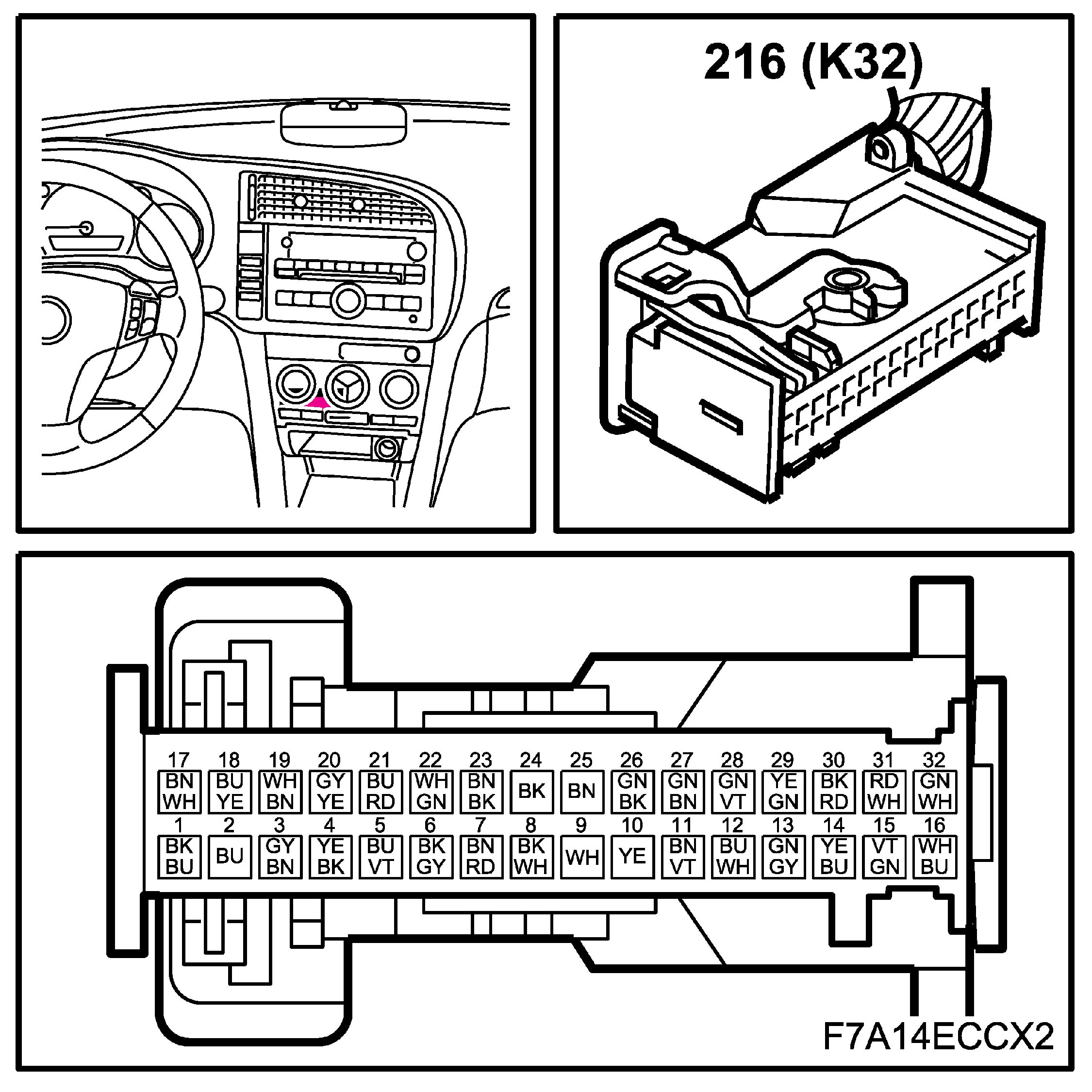

K32
