Control Assembly: Description and Operation

Automatic Climate Control (216)

Main task
The control module ensures that the cabin climate always corresponds to the desired user settings.

Type
Contains a microprocessor, see ACC, general description. Programmable with SPS (Service Program System).

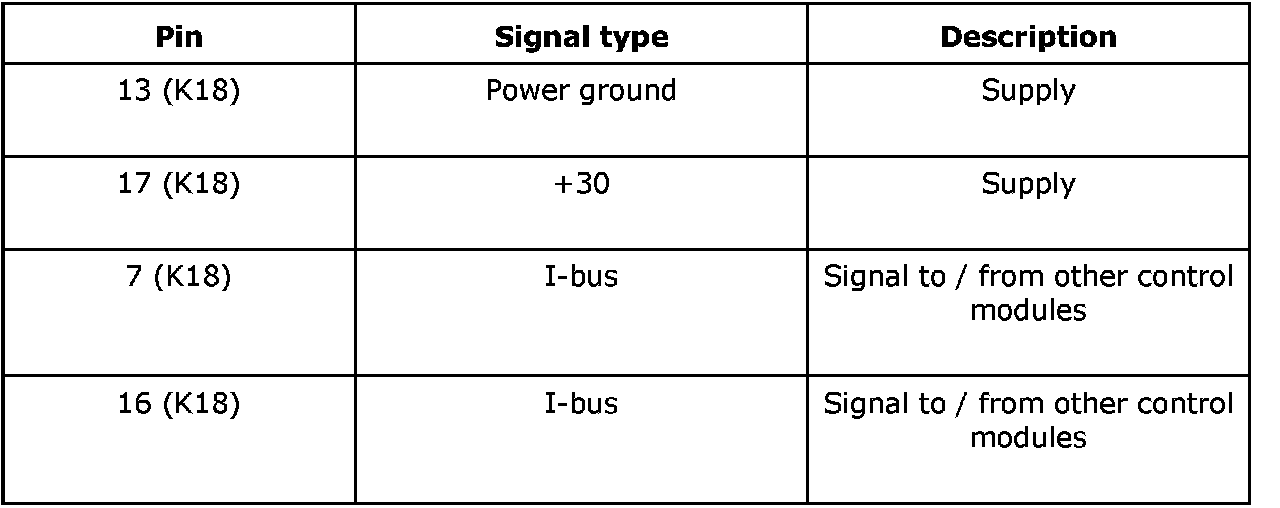

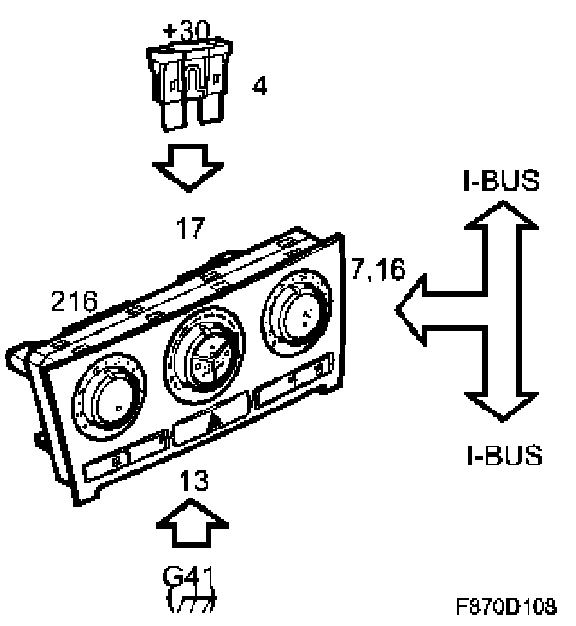

Connect
