Crimp Connection J146, Rear Harness




Location

4D: Approx. 490 mm from branching point grounding point G3 towards REC
5D: Approx. 50 mm from branching point grounding point G3 towards REC

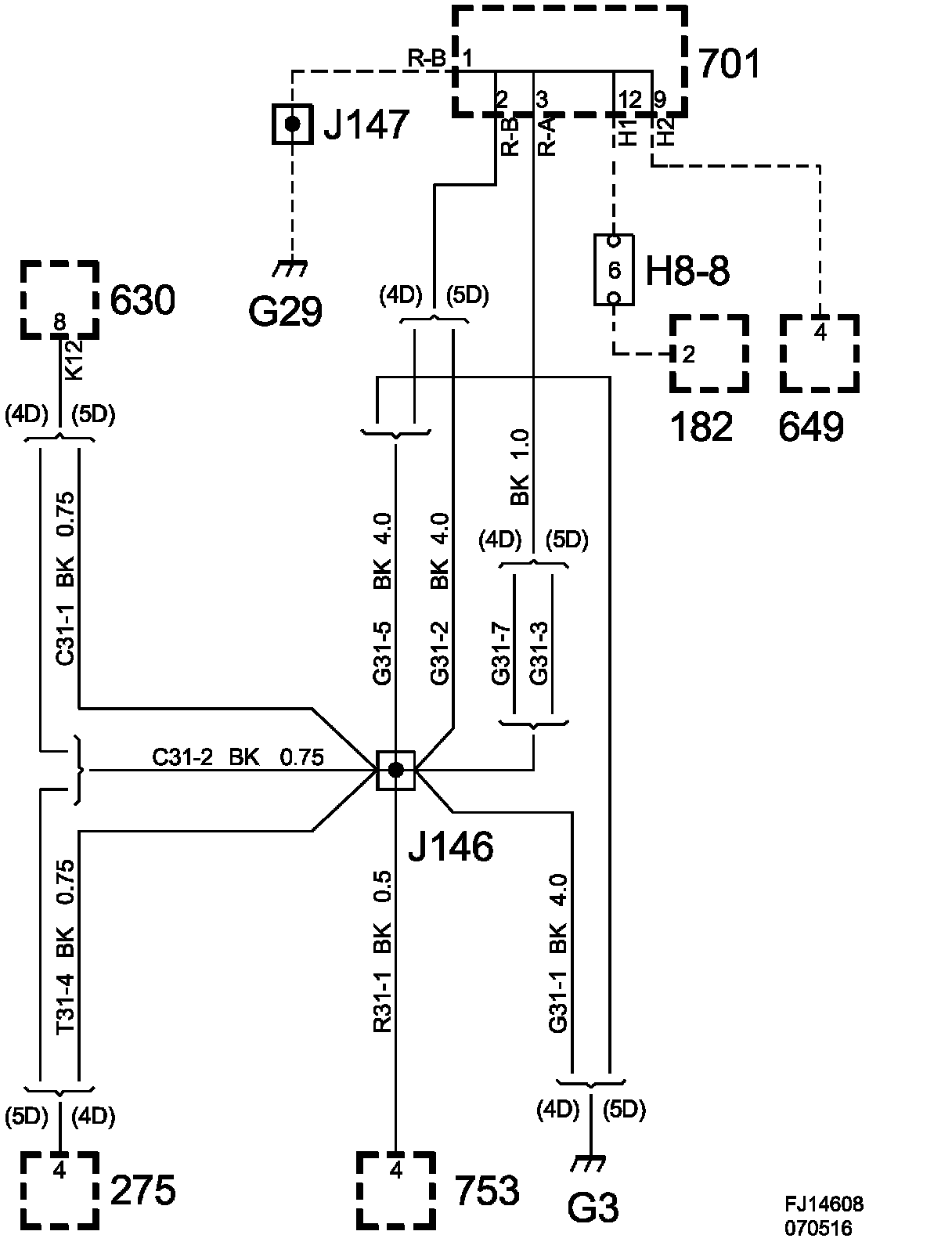

Crimp J146, Main Wiring Harness 4D/5D:

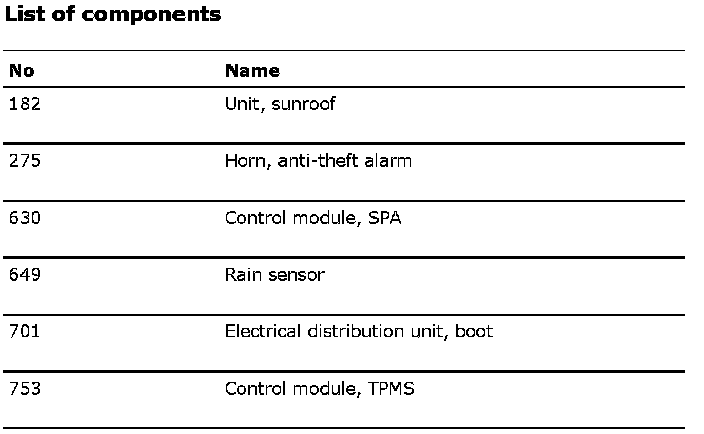

List Of Components:
