Crimp Connection J145, Boot Lid Harness, SportSedan/Convertible



Location:

4D: Approx. 80 mm from the branching point of the right tail light towards left tail light
CV: Approx. 110 mm from the branching point of the right tail light towards the left tail light

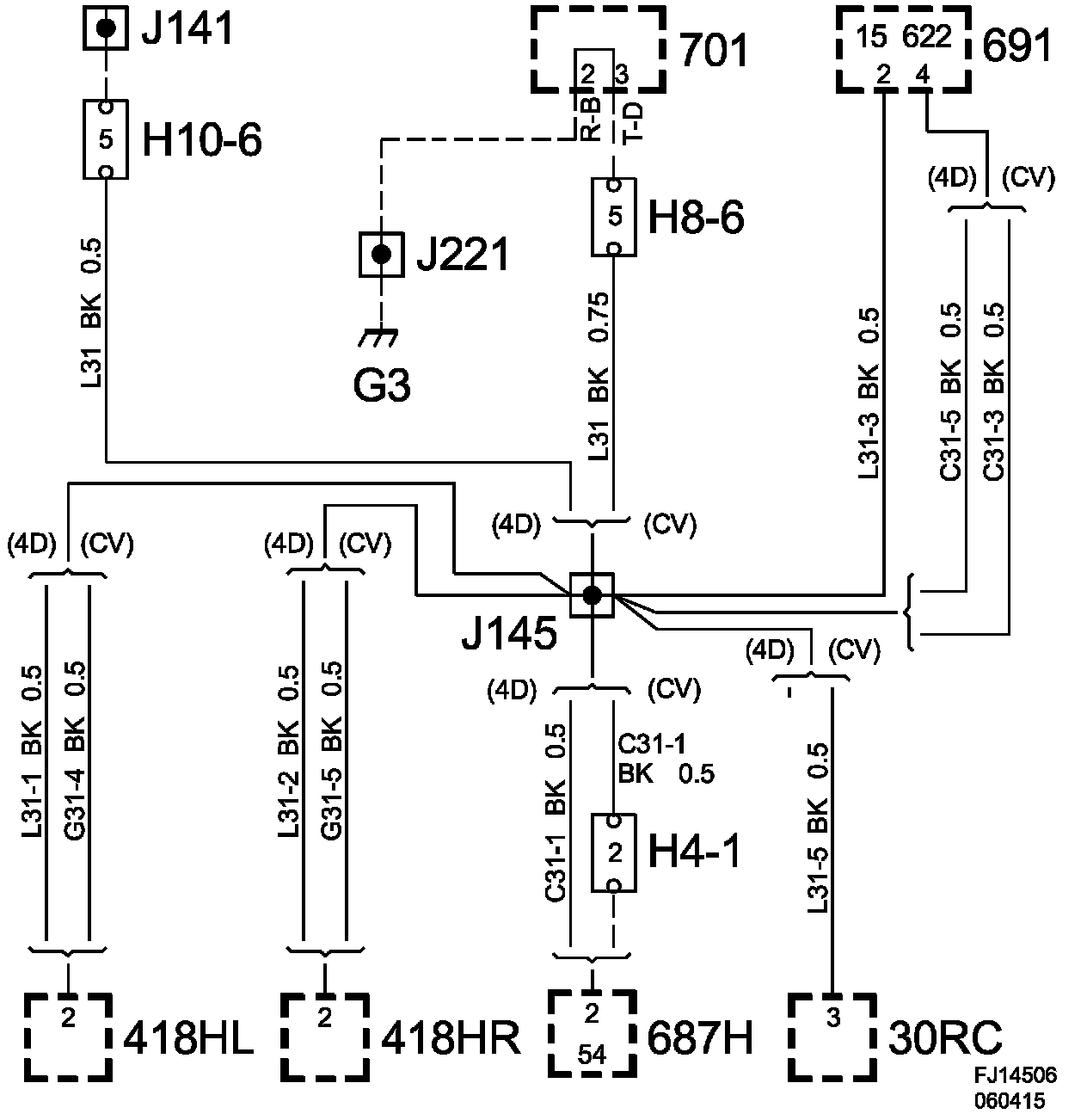

Crimp J145, Boot Lid Harness, 4D/CV:

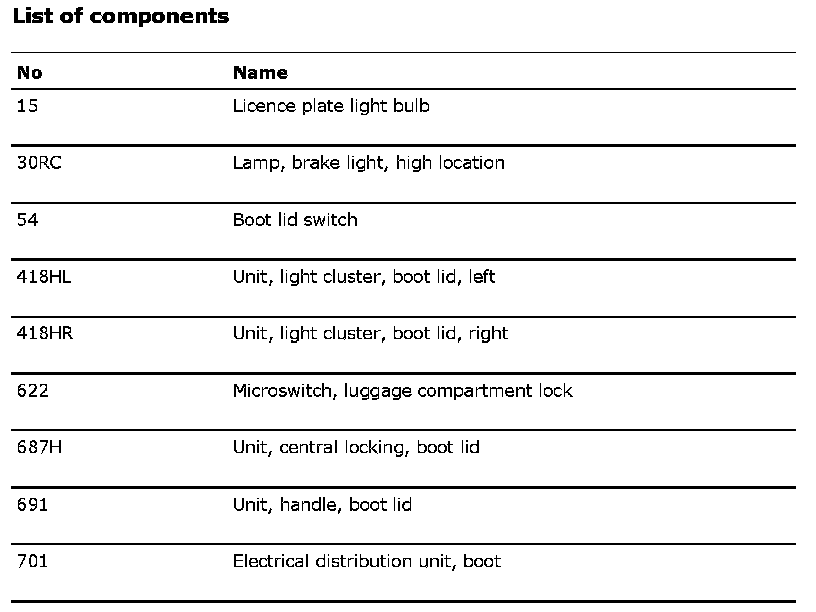

List Of Components:
