Grounds
>>
Grounding Point G7
Grounding Point G7

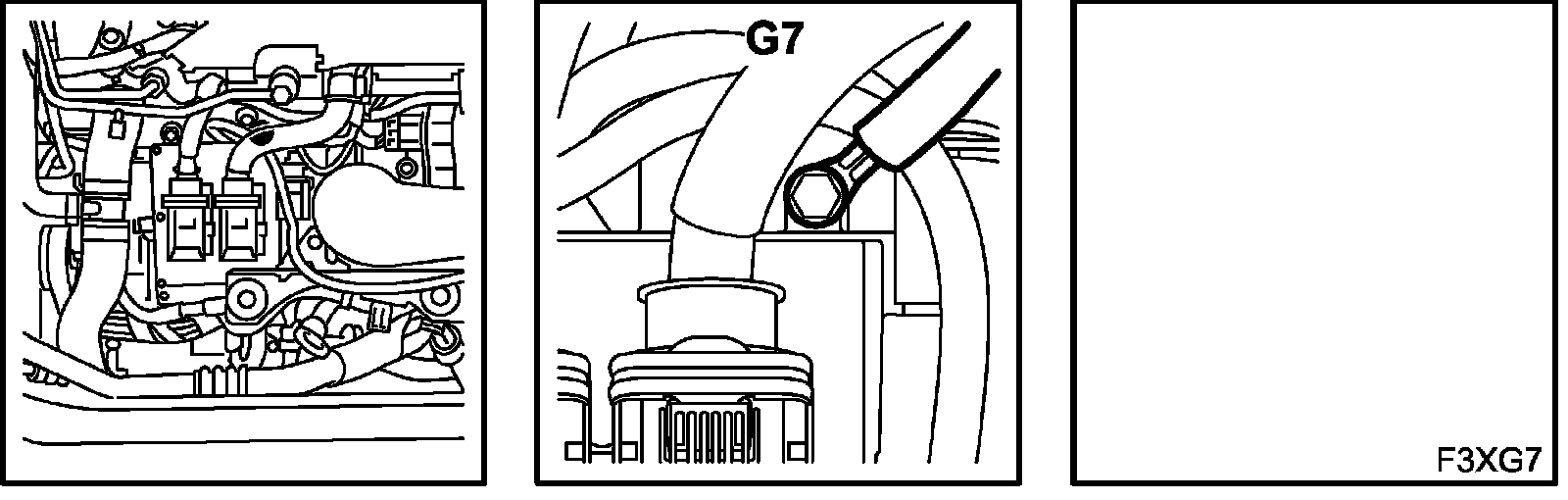

Location:
Above the upper RH engine control module attachment eye

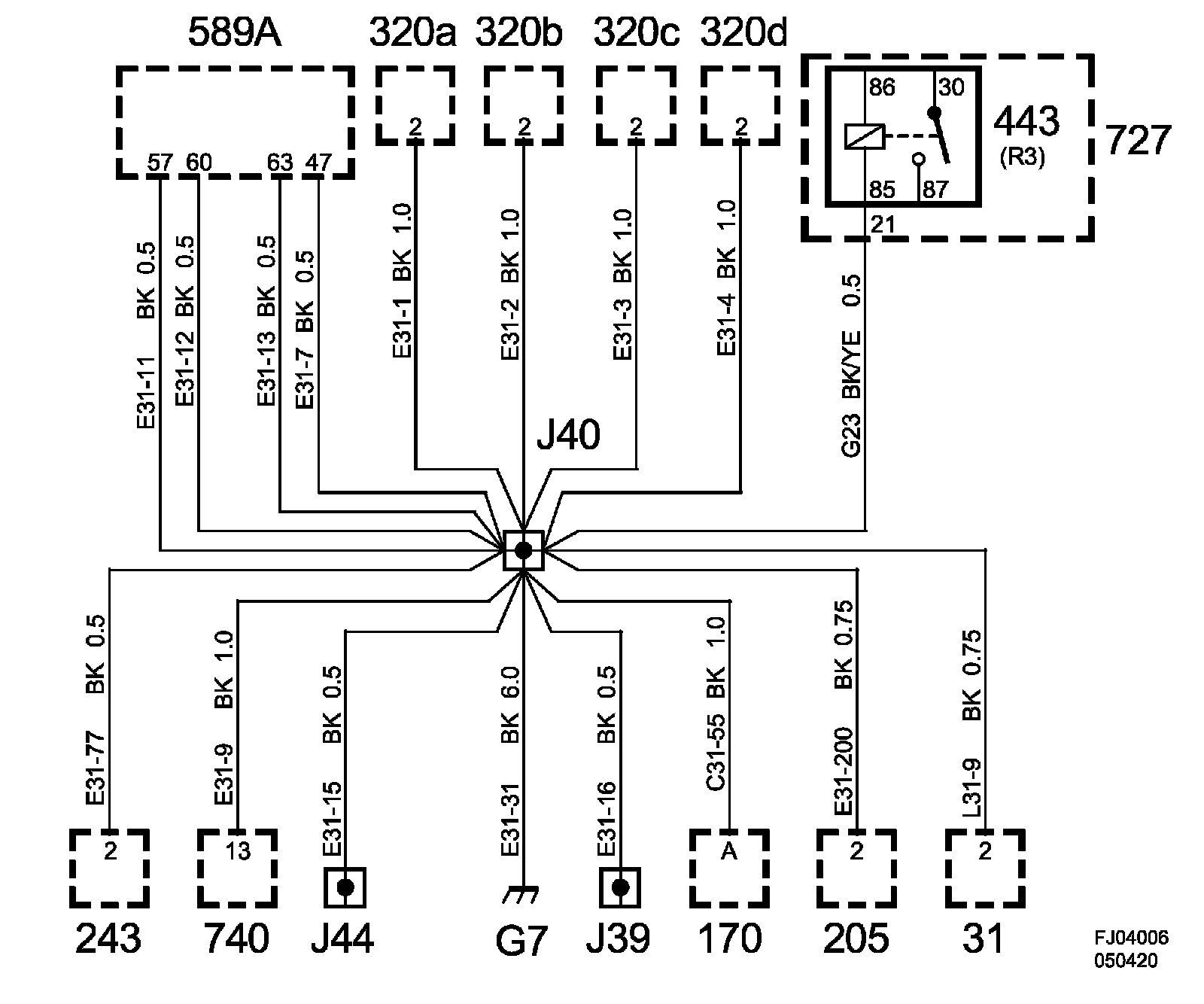

Grounding Point G7:

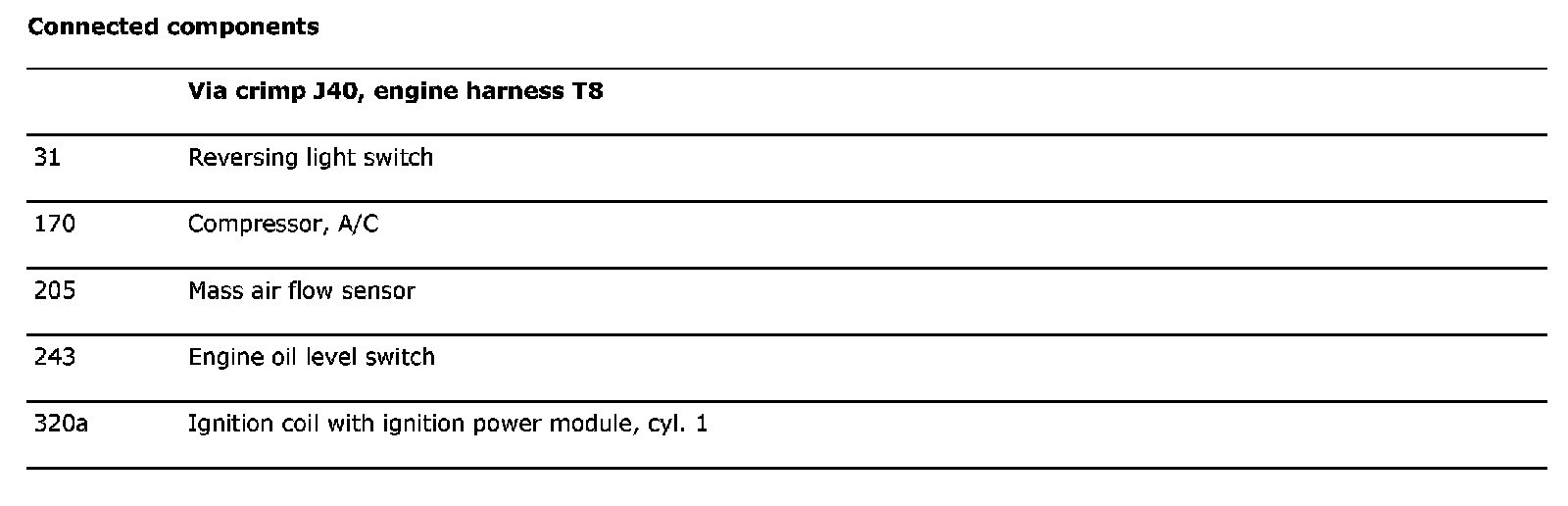

Connected Components (Part 1):

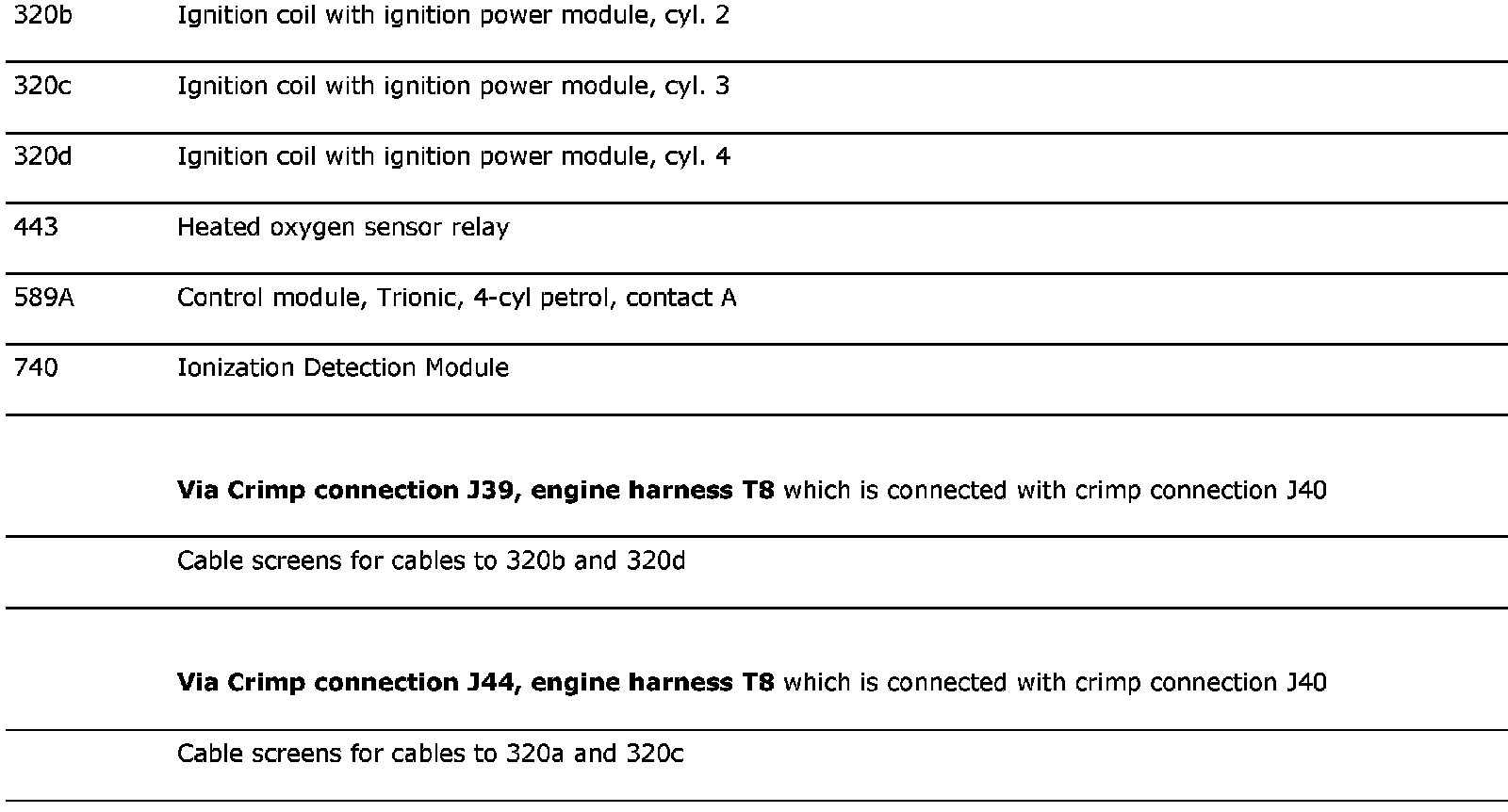

Connected Components (Part 2):
