Grounding Point G34S



Location: At the floor below the right A-pillar (BK/WH cable)

The grounding point is connected to grounding point G43 via the crimp connections J108 and J80.

Grounding Point G34S:

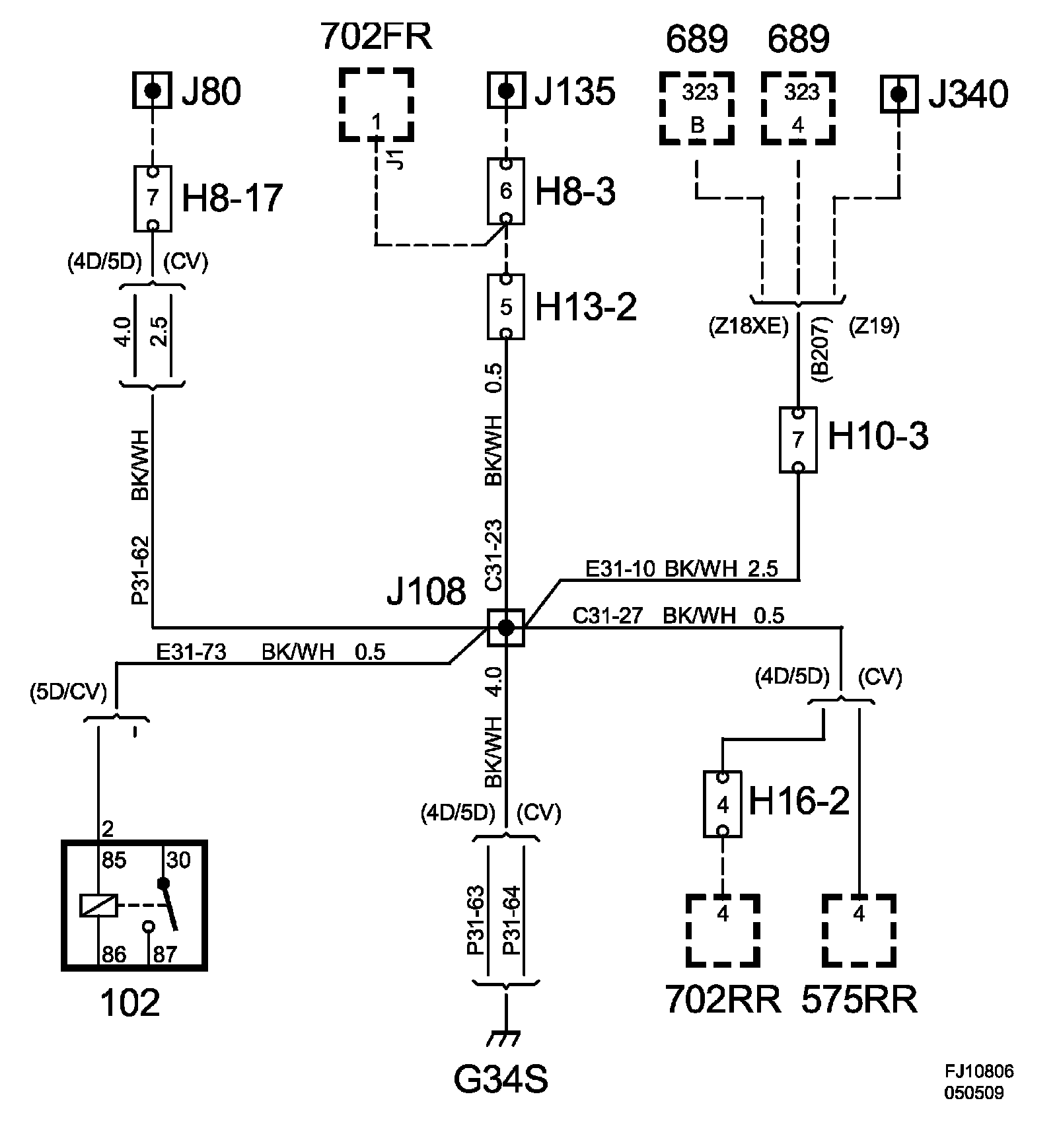

Crimp J108:

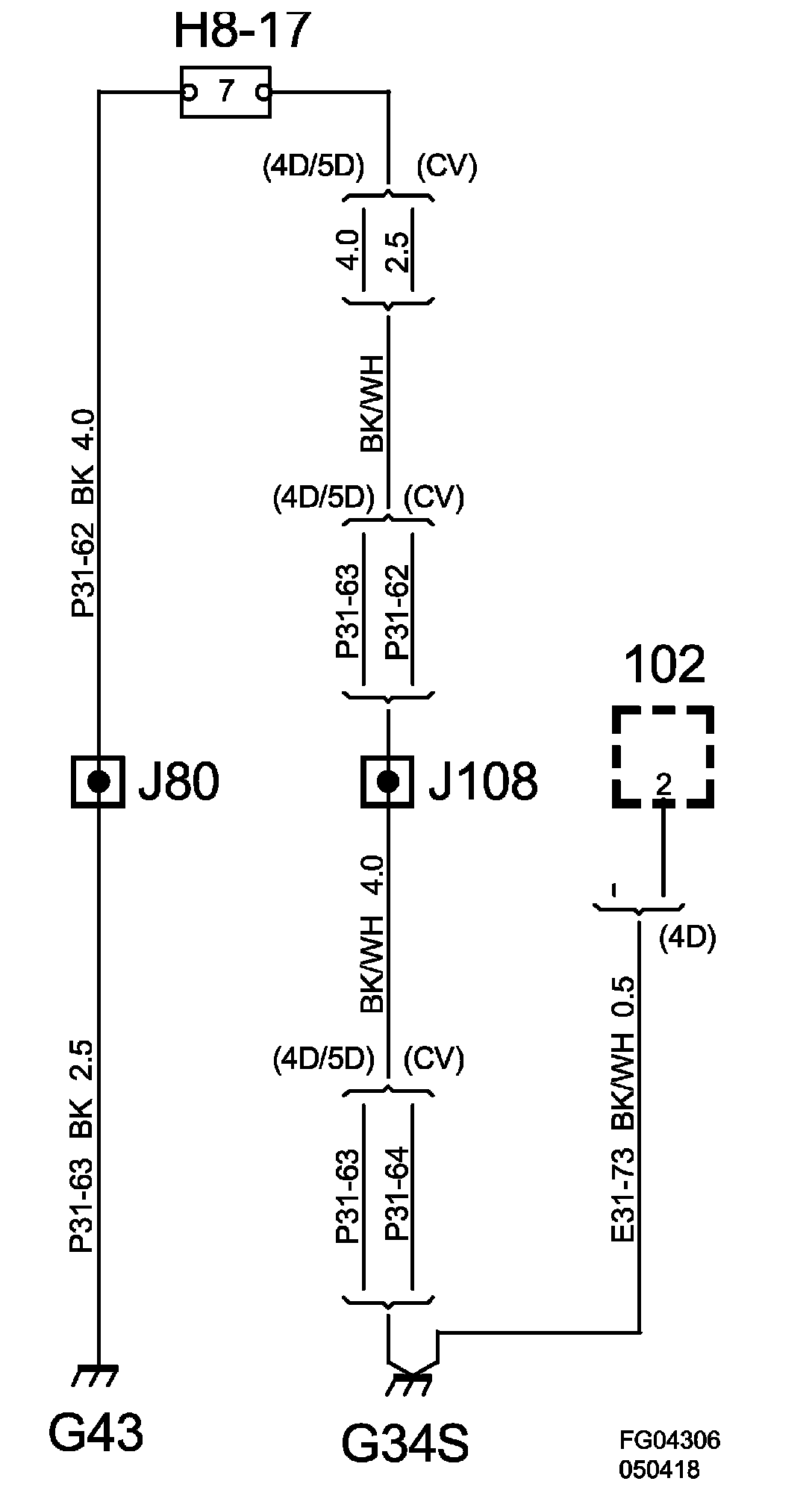

Connection To G43:

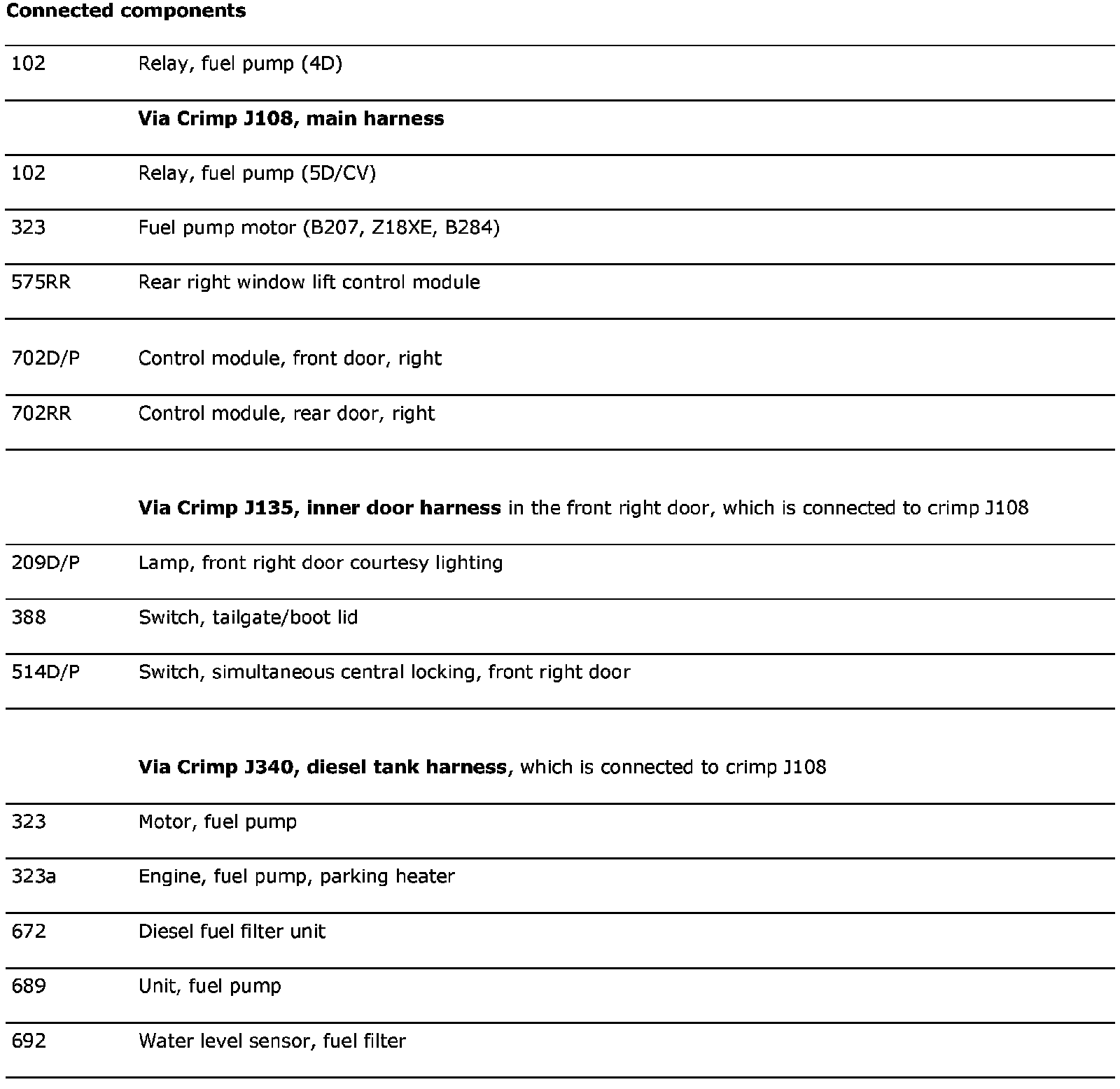

Connected Components:
