Home >> Saab >> 2006 >> 9-3 (9440) L4-2.0L Turbo (2.0 T) >> Repair and Diagnosis >> Diagrams >> Grounds >> Grounding Point G34P

Grounding Point G34P

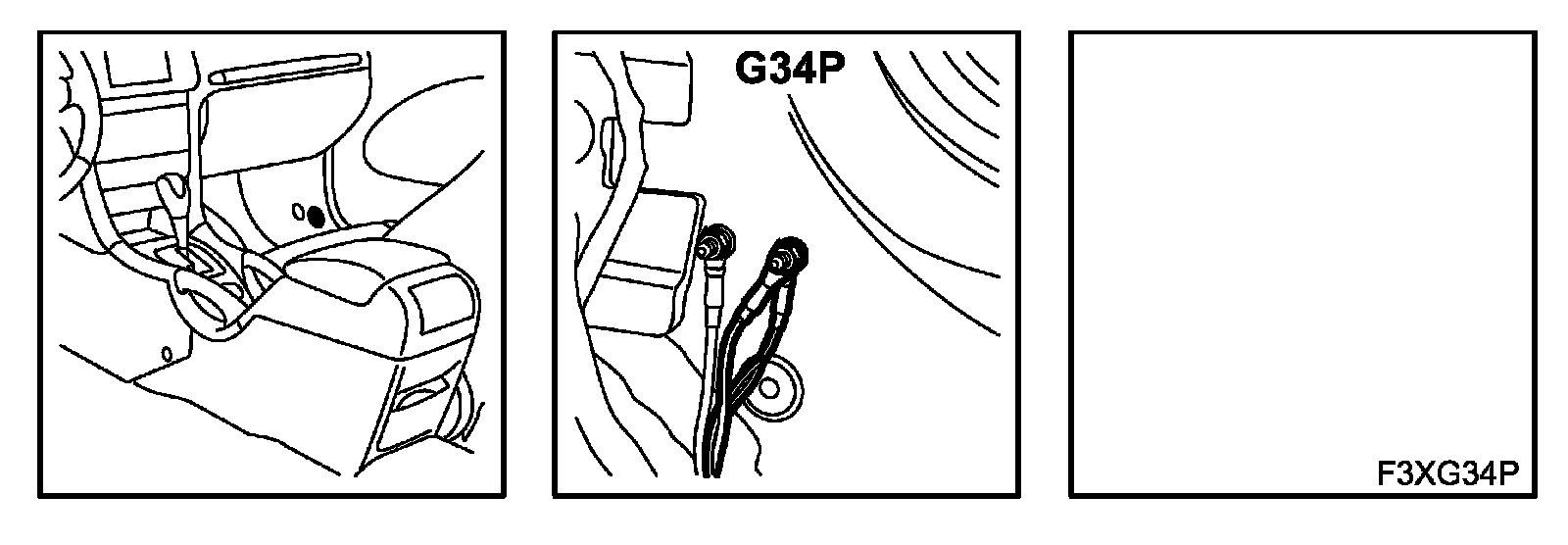

Location: By the floor below the right A-pillar (black tape)

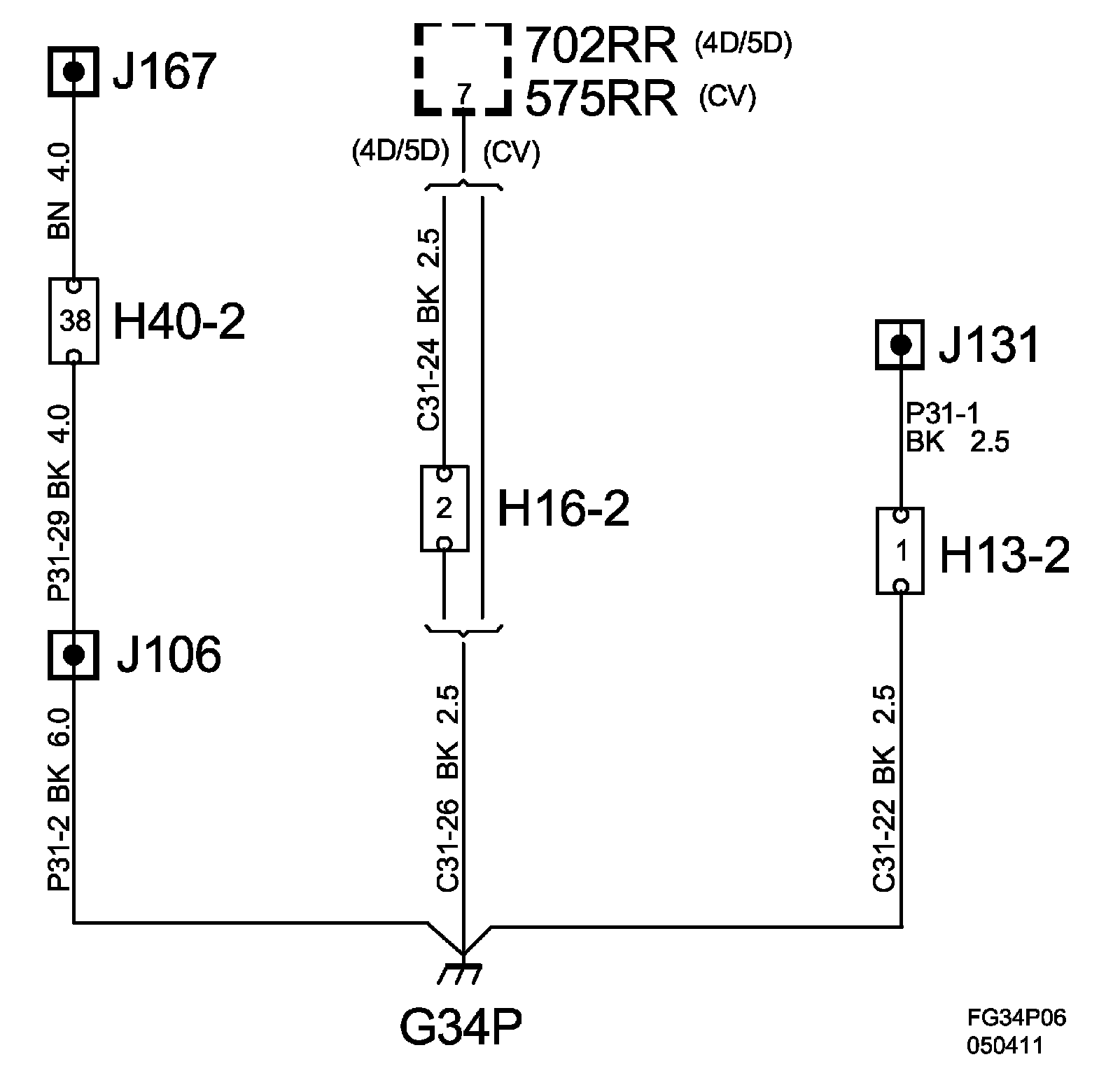

Grounding Point G34P:







Connected Components:
