Grounding Point G30A

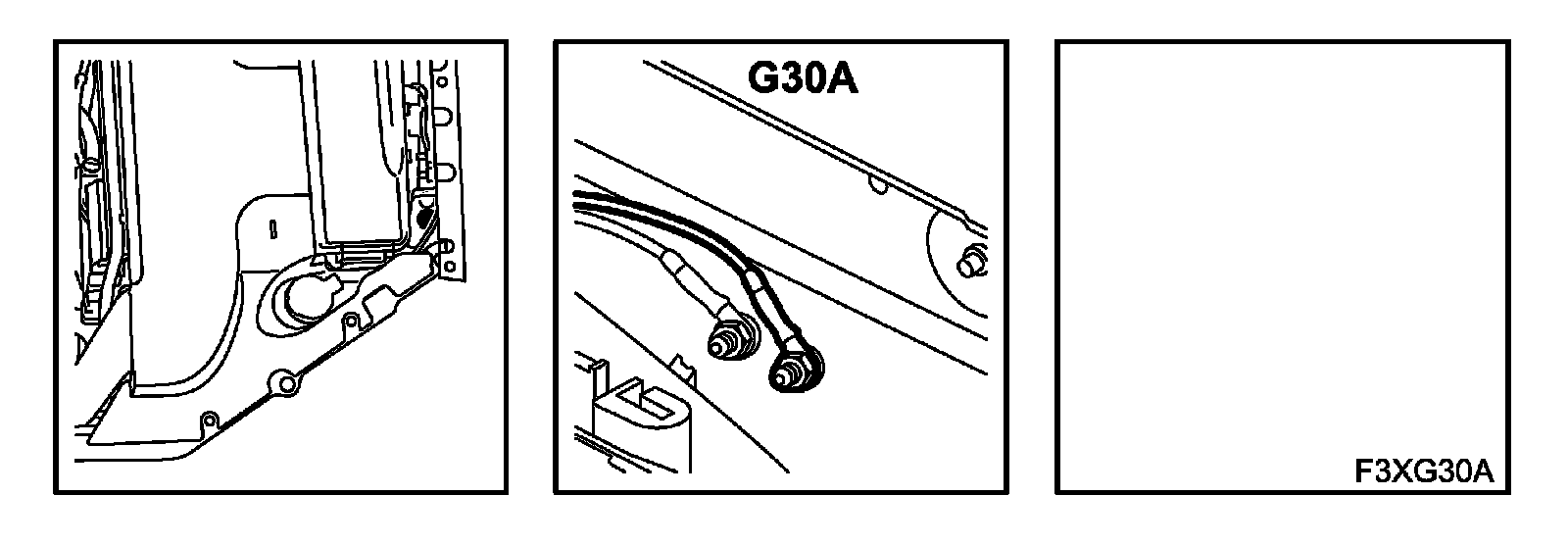

Location: Front grounding point on the side plate above the LH front wheel housing

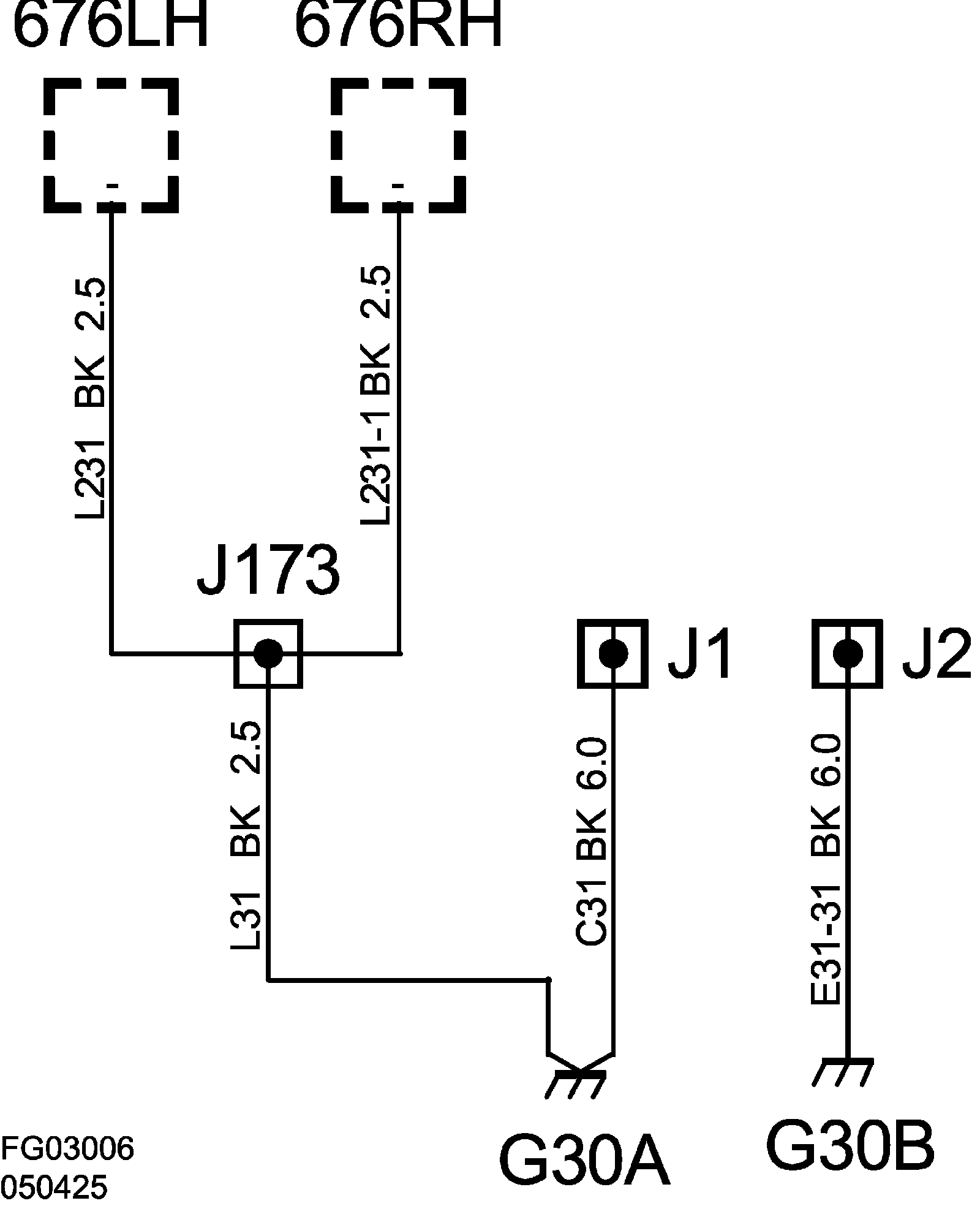

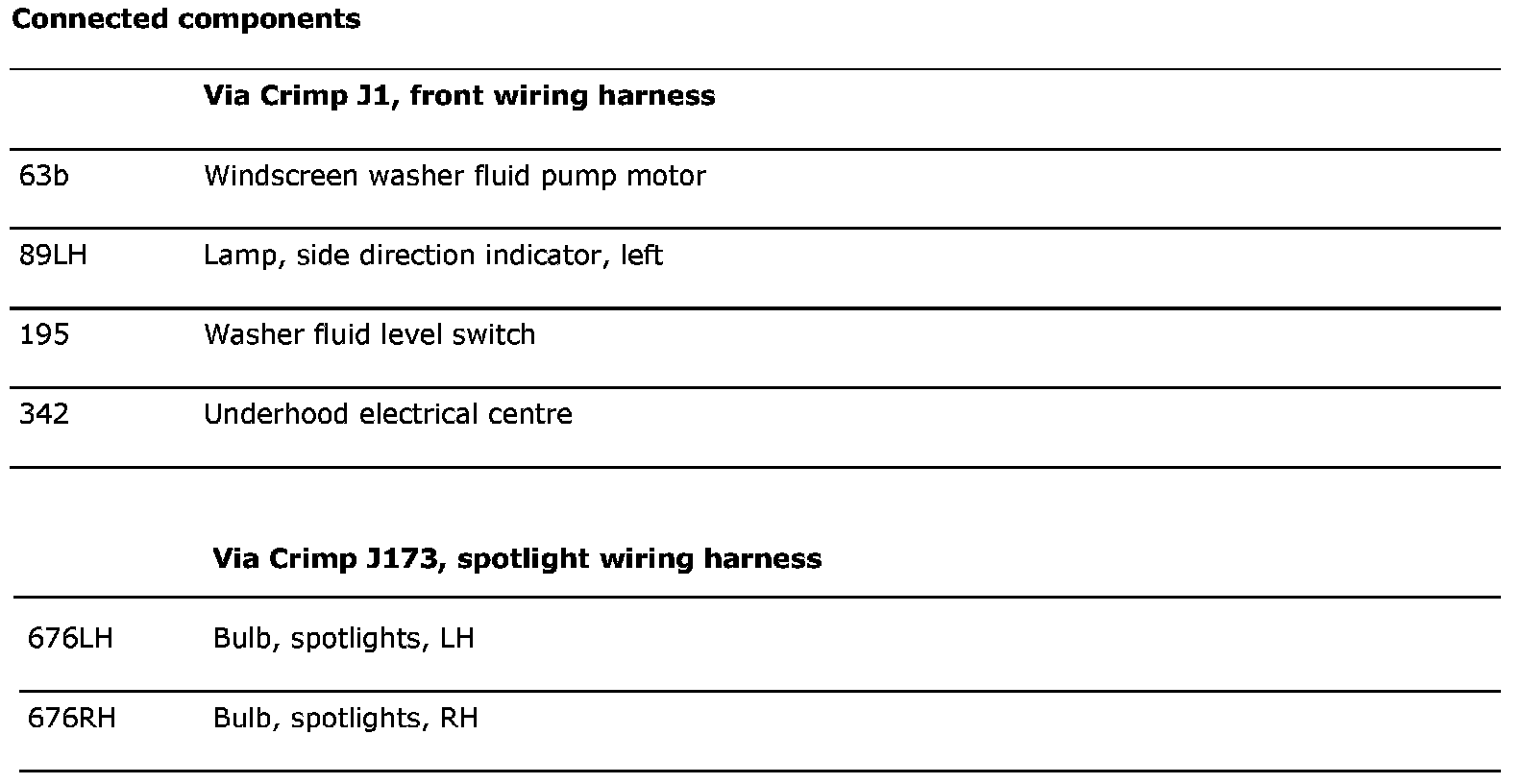

The grounding point is connected to grounding point G31 via crimp J1, the underhood electrical center 342 and crimp J9/J12.
