Crimp Connection J29, Engine Harness, Trionic



Location: Approx. 90 mm from branching point fuse box 727 towards the main fuse box.

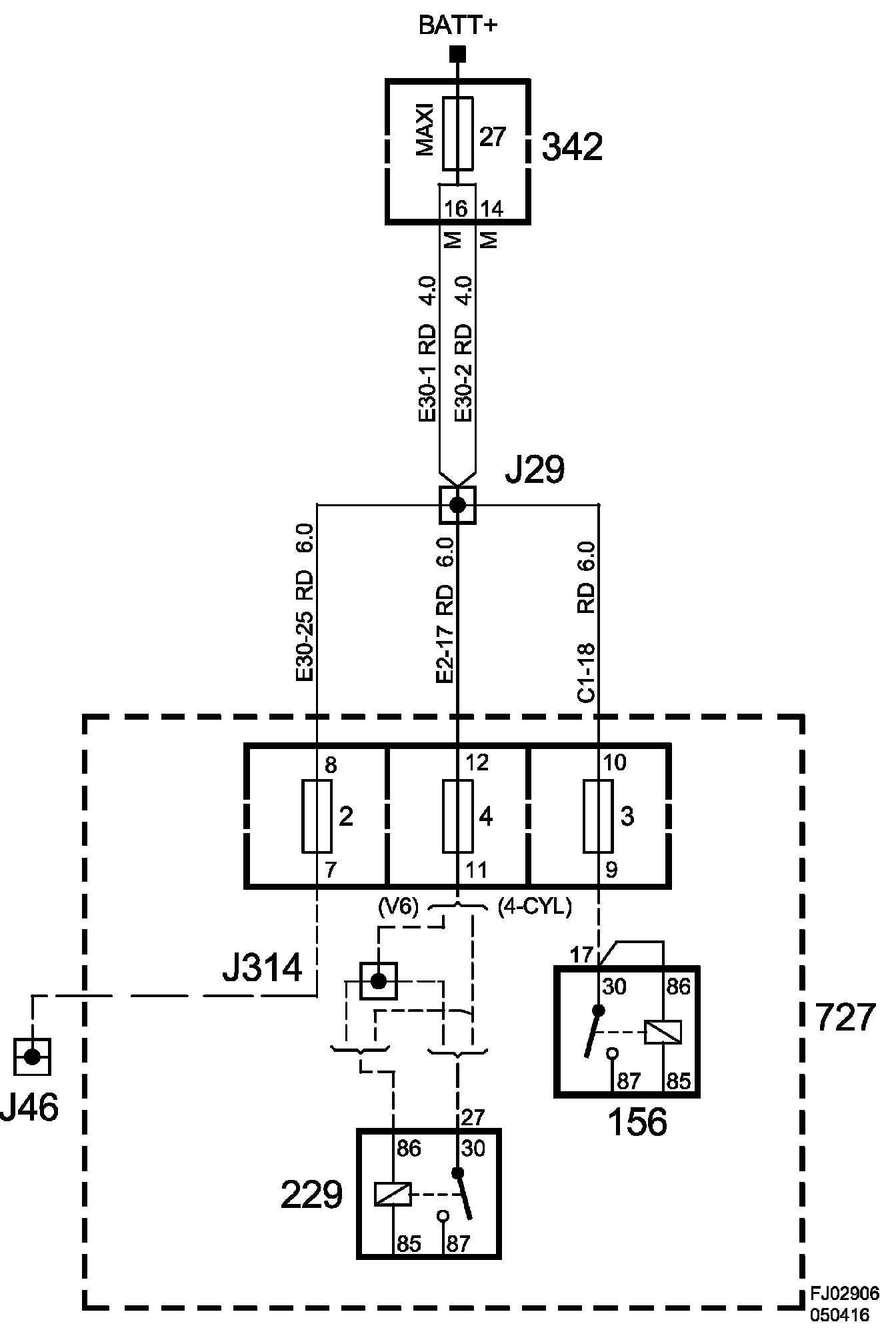

Crimp J29, Engine Harness, Trionic:

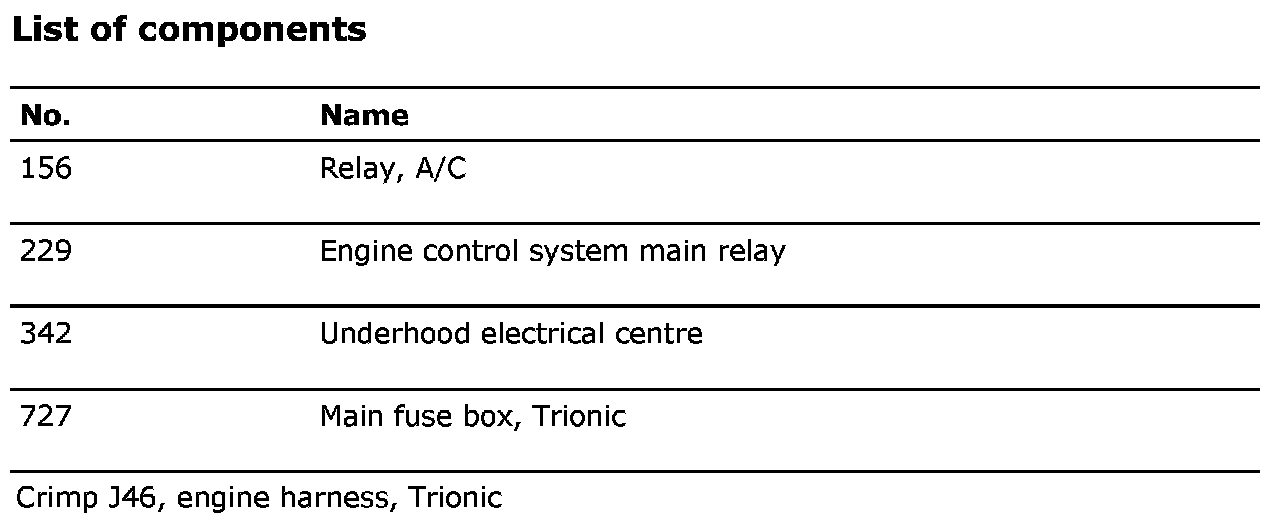

List Of Components:
