Crimp Connection J145, Boot Lid Harness, 4D/CV



Location:

4D: Approx. 80 mm from the branching point of the right tail light towards left tail light

CV: Approx. 110 mm from the branching point of the right tail light towards the left tail light

Crimp J145, Boot Lid Harness:

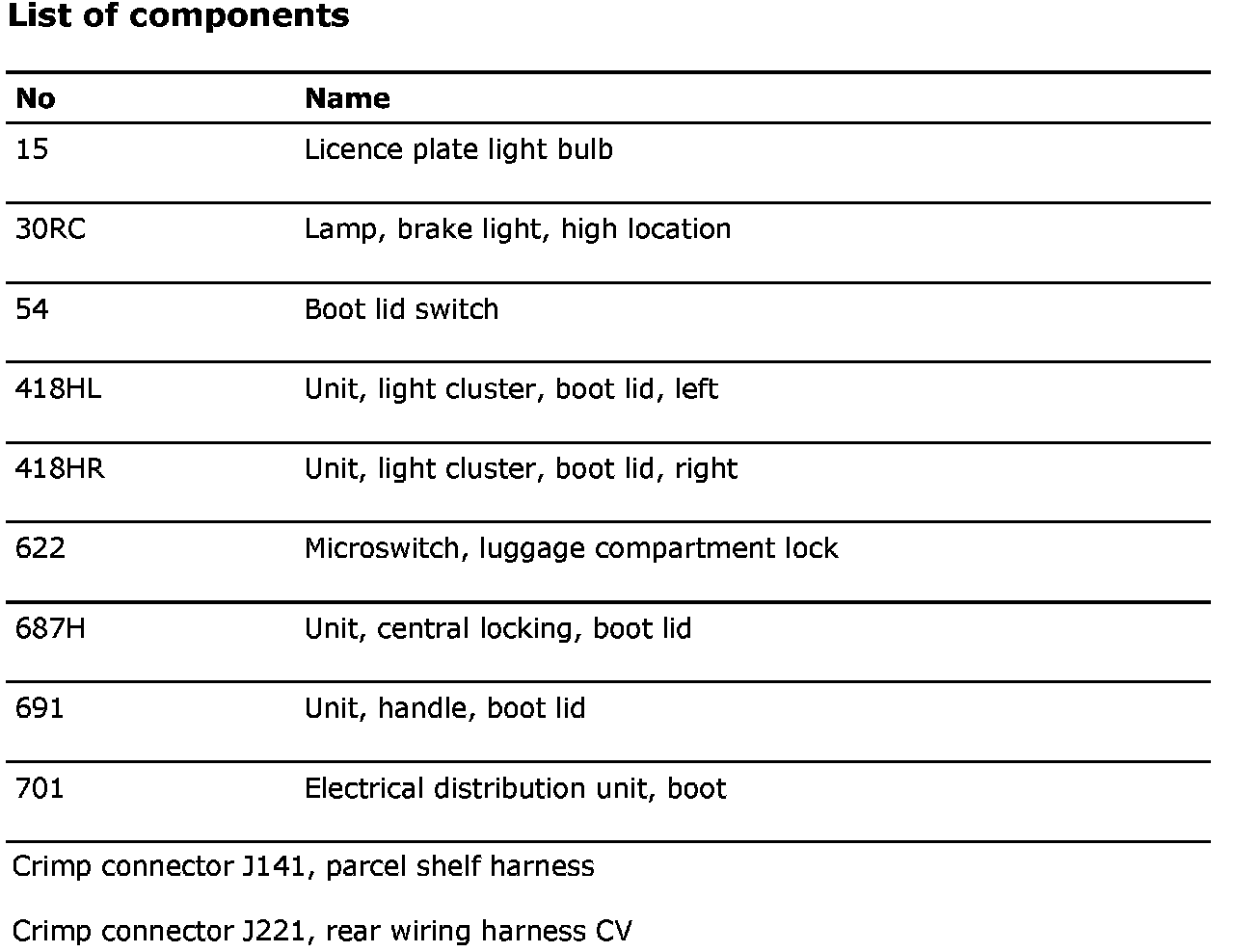

List Of Components:
