Crimp Connection J108, Main Wiring Harness

Location:

4D: in branching point grounding point G34

5D: Approx. 50 mm from branching point to grounding point G34P/S towards front right door

CV: Approx. 20 mm from branching point to grounding point G34P/S towards RH seat

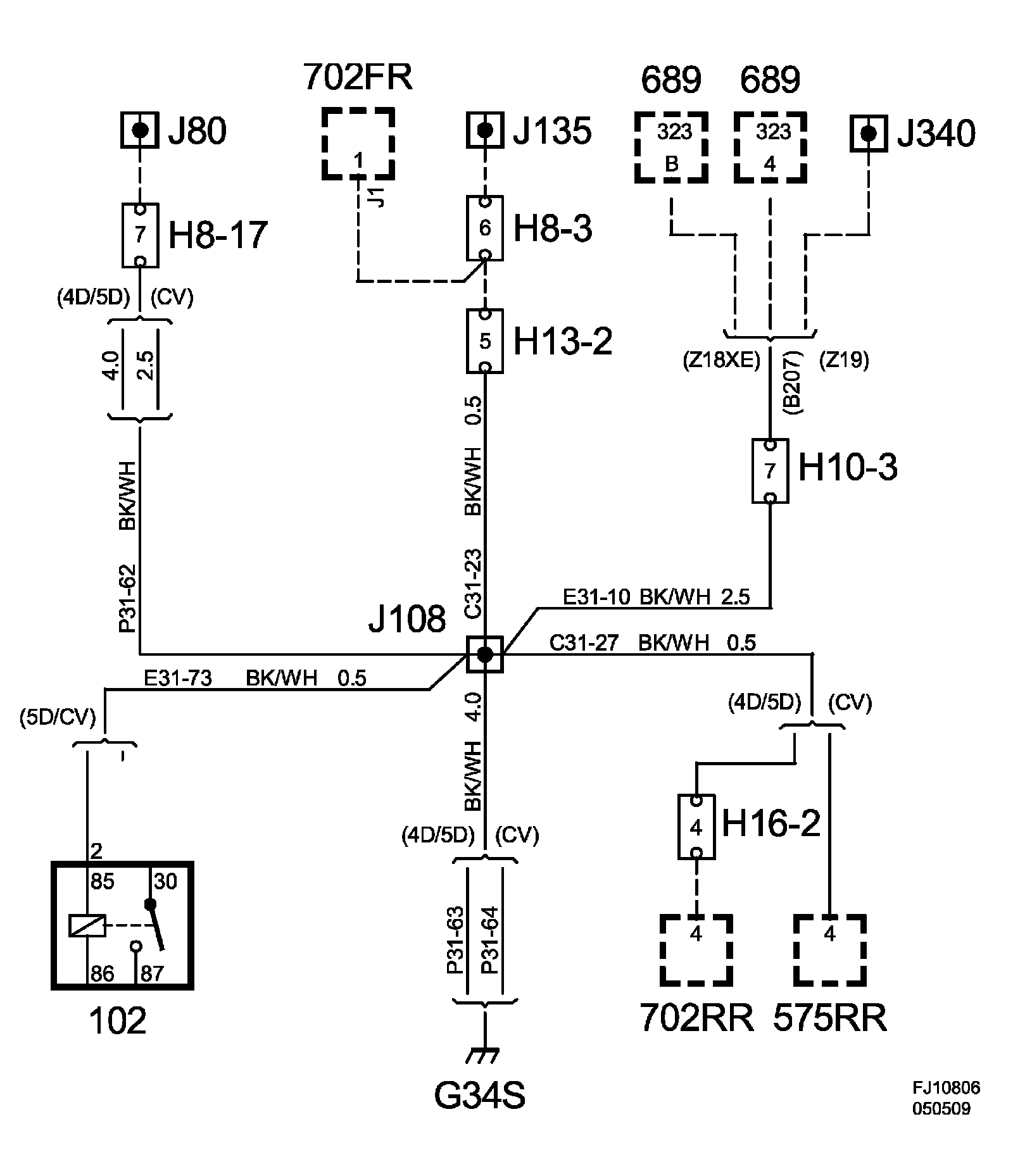

Crimp J108, Main Wiring Harness:

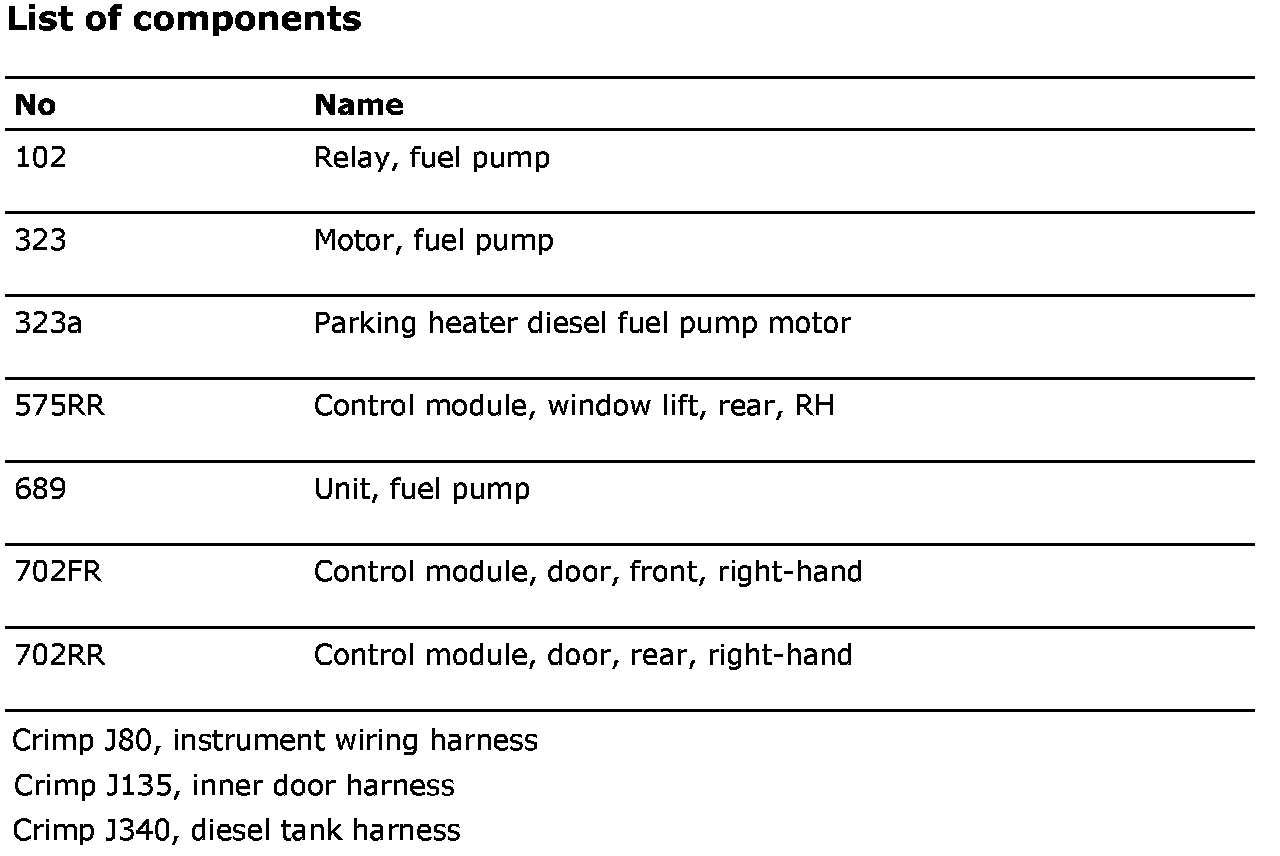

List Of Components:
