Home >> Saab >> 2006 >> 9-3 (9440) L4-2.0L Turbo (2.0 T) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> Fuse >> Engine Compartment >> Underhood Electrical Center (UEC) (342) >> Fuse 2

Fuse 2

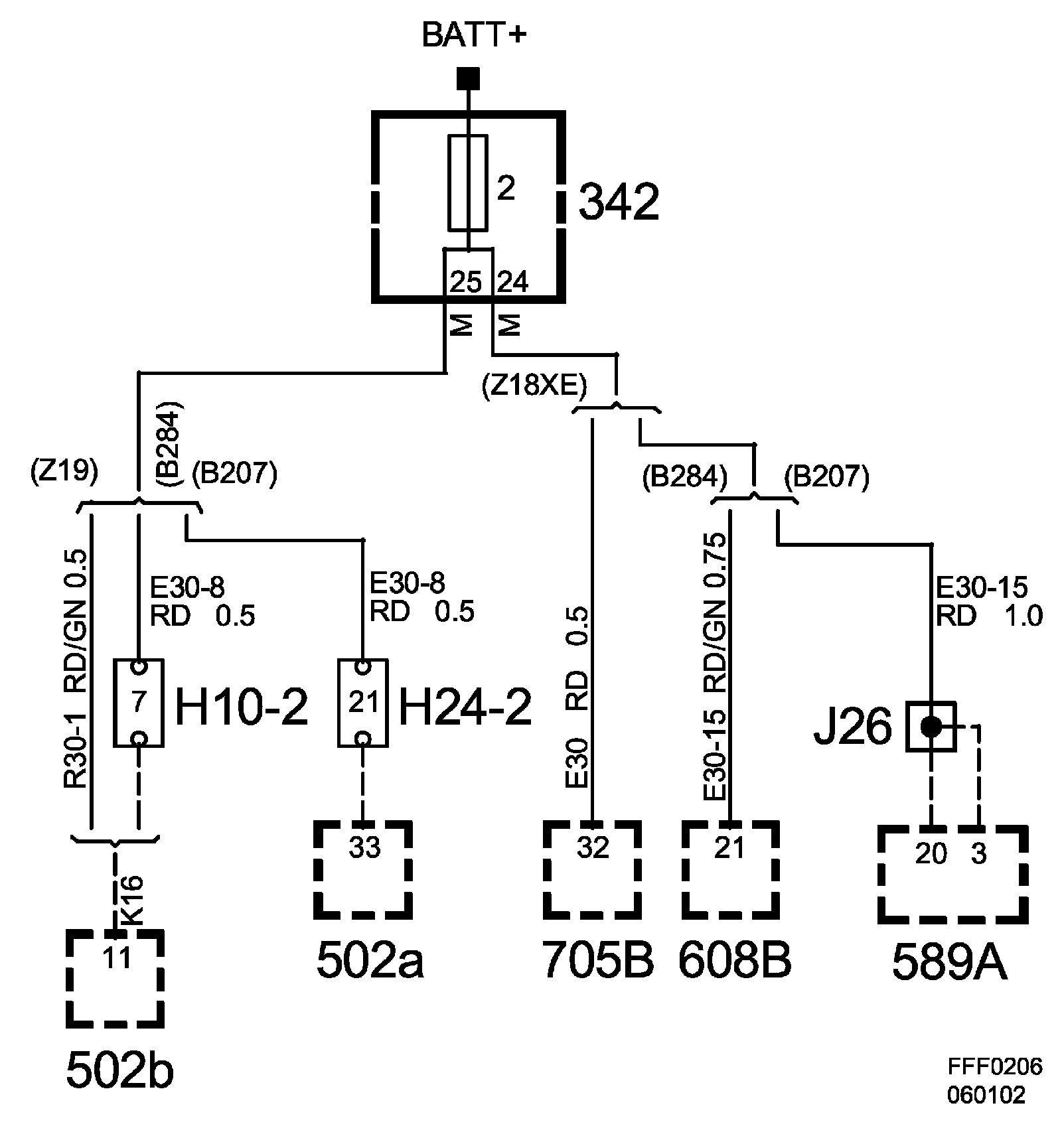

Fuse 2, Engine Bay Fuse Box 342:

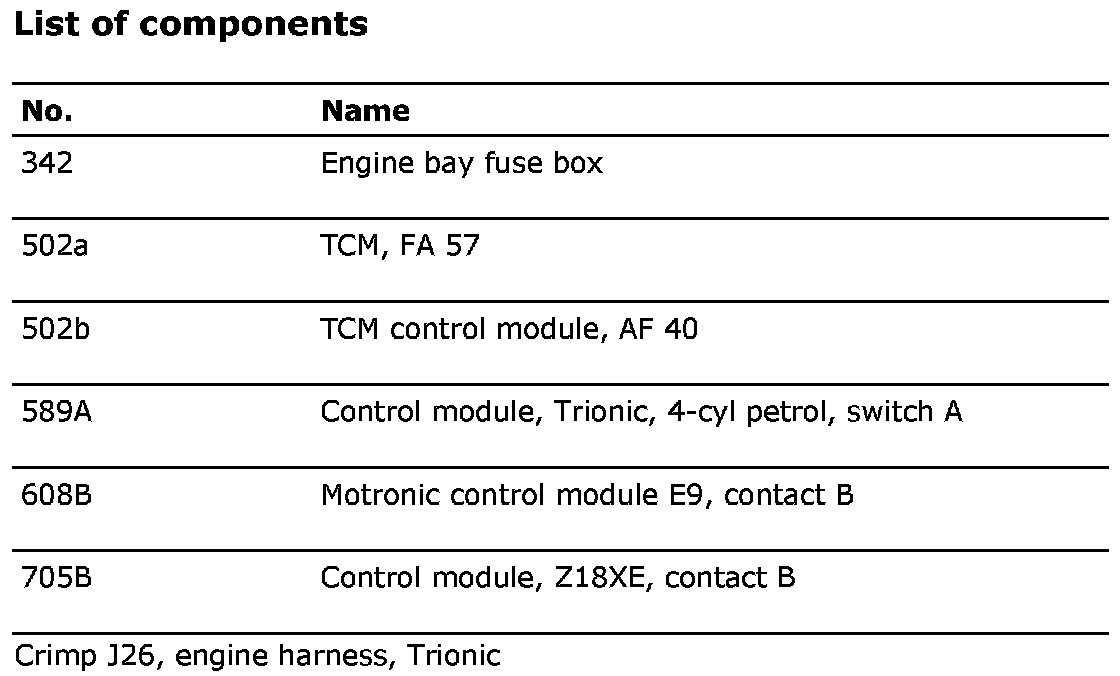

List Of Components:
