Home >> Saab >> 2006 >> 9-3 (9440) L4-2.0L Turbo (2.0 T) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> Fuse >> Engine Compartment >> Main Fuse Box, Engine Management System (727) >> Fuse 4

Fuse 4

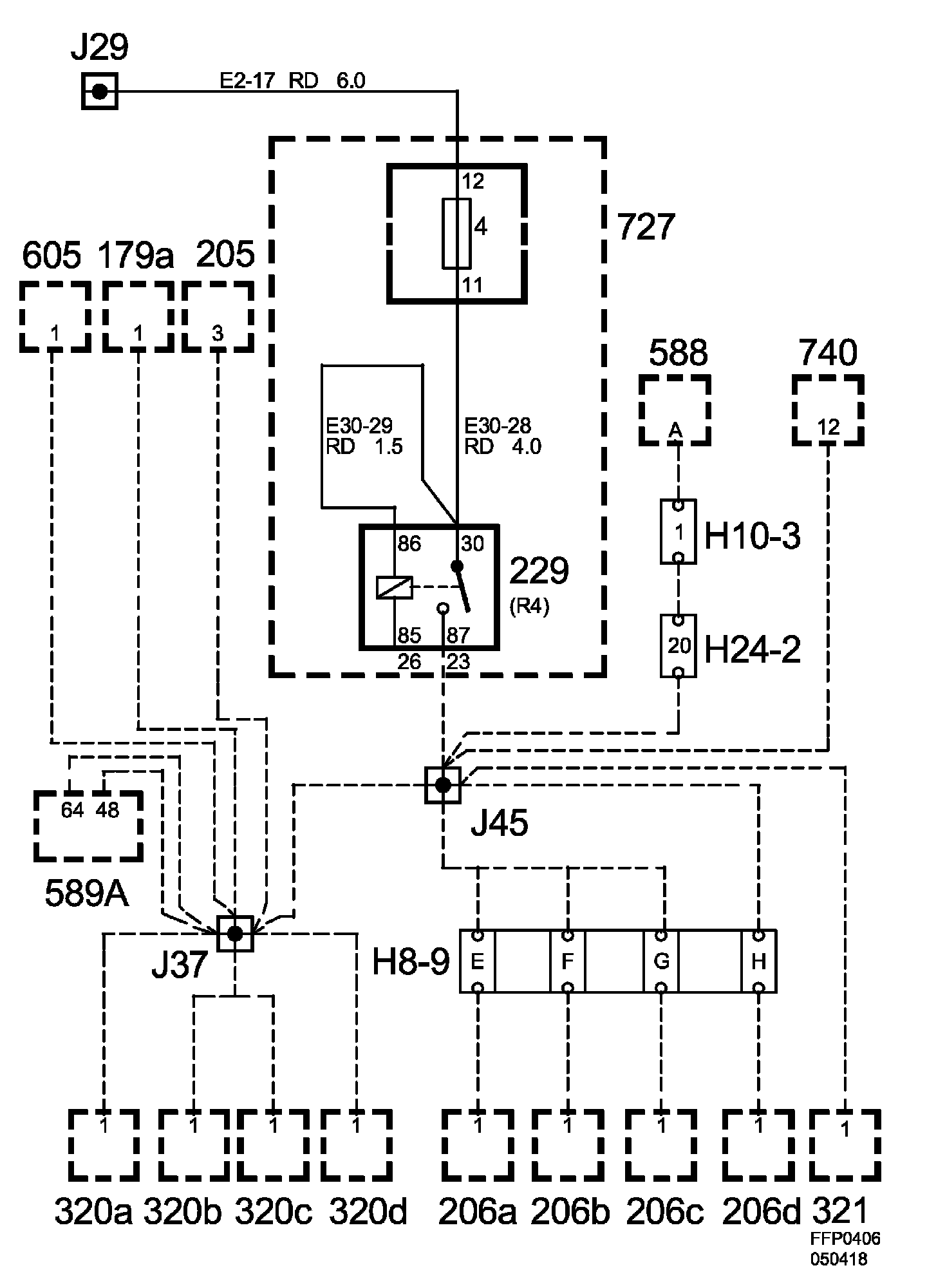

Fuse 4, Main Fuse Box 727:

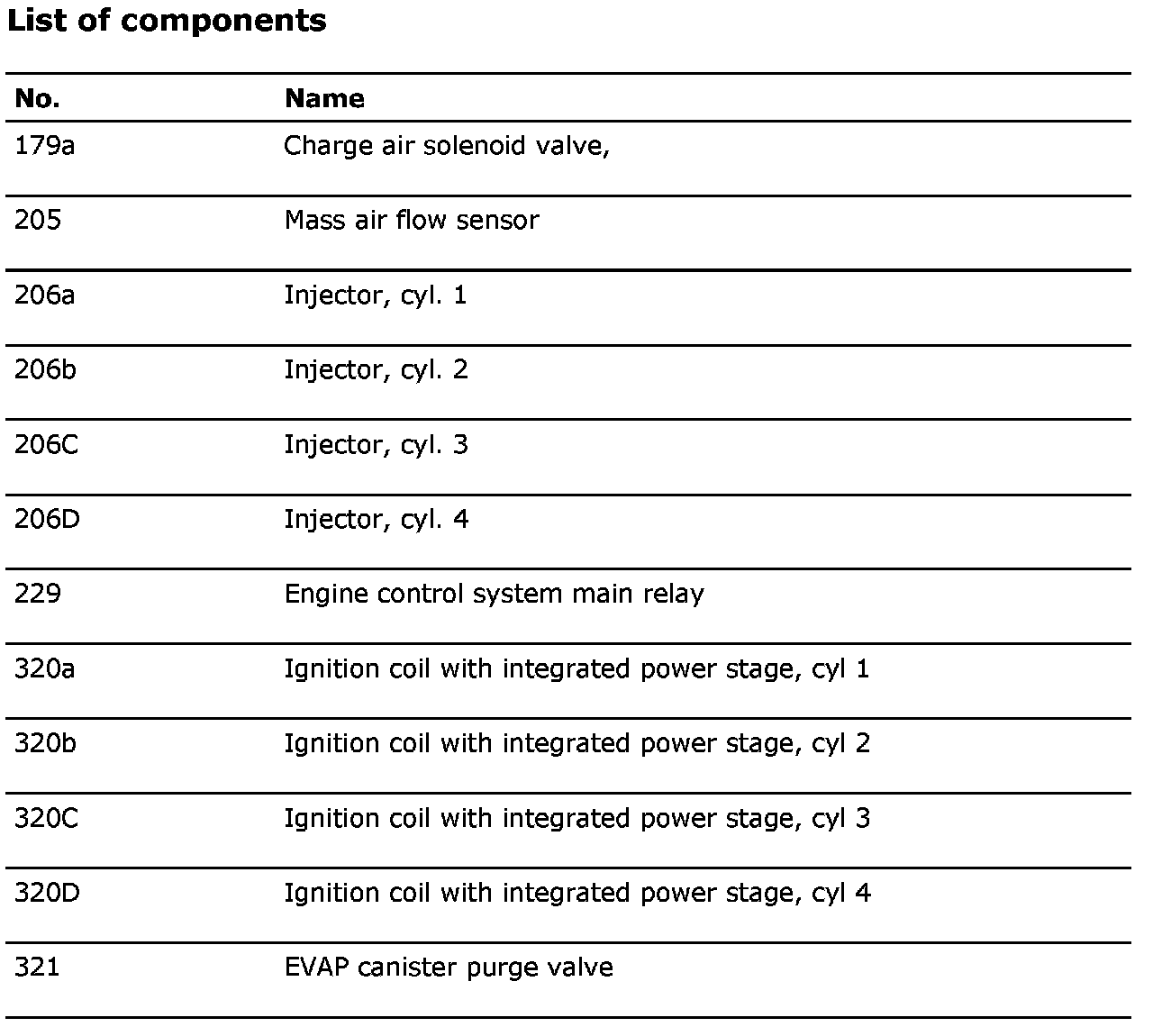

List Of Components (Part 1):

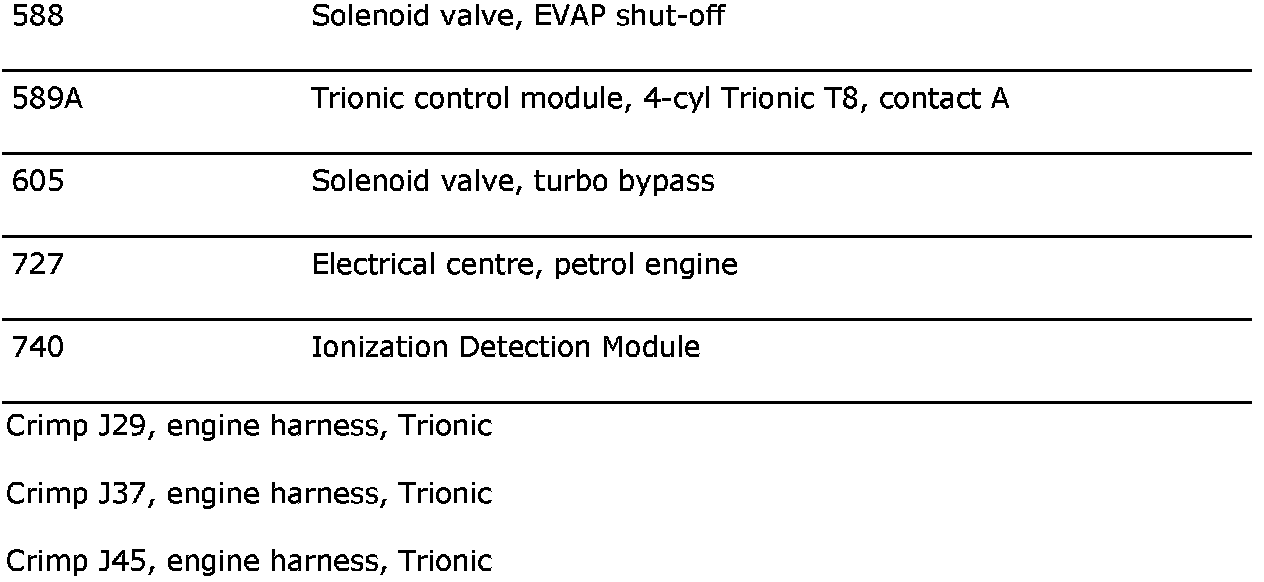

List Of Components (Part 2):
