Home >> Saab >> 2006 >> 9-3 (9440) L4-2.0L Turbo (2.0 T) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Tail Lamp >> Rear Right Parking Light Bulb (13RR) >> 4D

4D

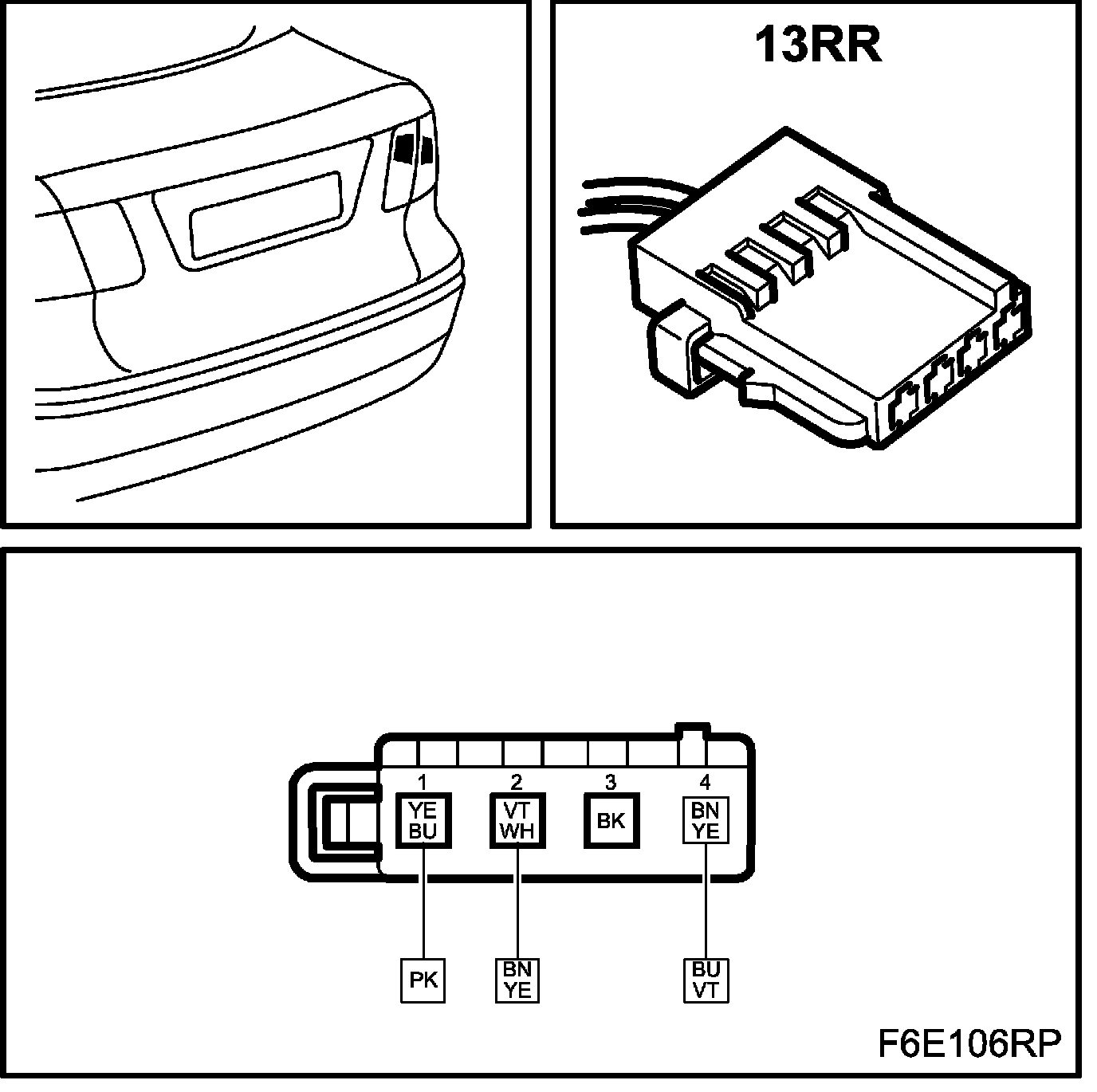

Rear Right Parking Light Bulb (13RR), 4D:
