Home >> Saab >> 2006 >> 9-3 (9440) L4-2.0L Turbo (2.0 T) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Tail Lamp >> Light Cluster Unit, Rear Wing, RH (418RR) >> CV

CV

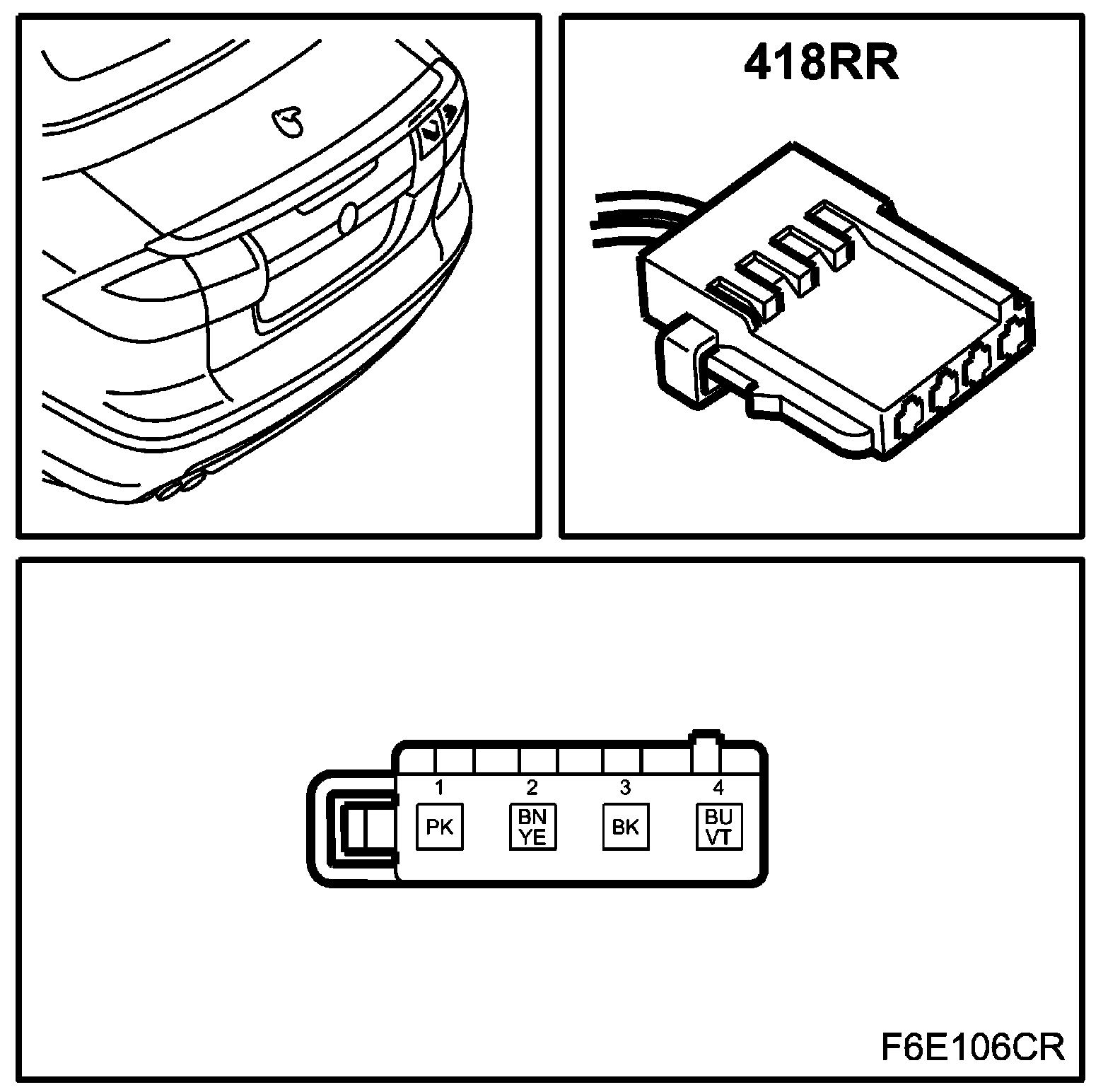

Light Cluster Unit, Rear Wing, RH (418RR), CV:
