Home >> Saab >> 2006 >> 9-3 (9440) L4-2.0L Turbo (2.0 T) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Radio, Stereo, and Compact Disc >> Amplifier, Sound System >> Amplifier, Rear Speakers (354R), 4D/CV

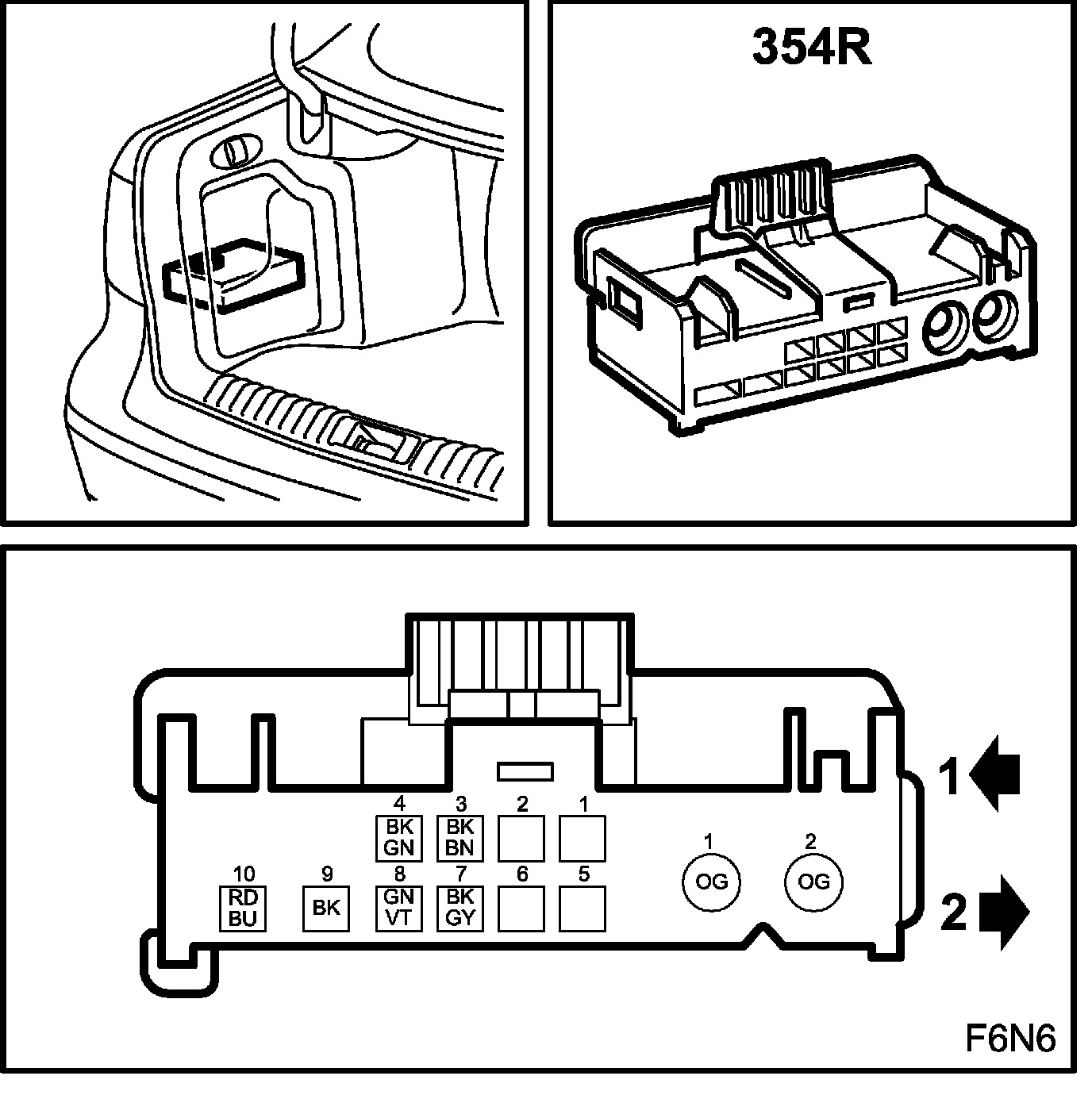

Amplifier, Rear Speakers (354R), 4D/CV

Amplifier, Rear Speakers (354R), 4D/CV:
