Home >> Saab >> 2006 >> 9-3 (9440) L4-2.0L Turbo (2.0 T) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Parking Lamp >> Parking Light Bulb >> Front Left Parking Light Bulb (13FL)

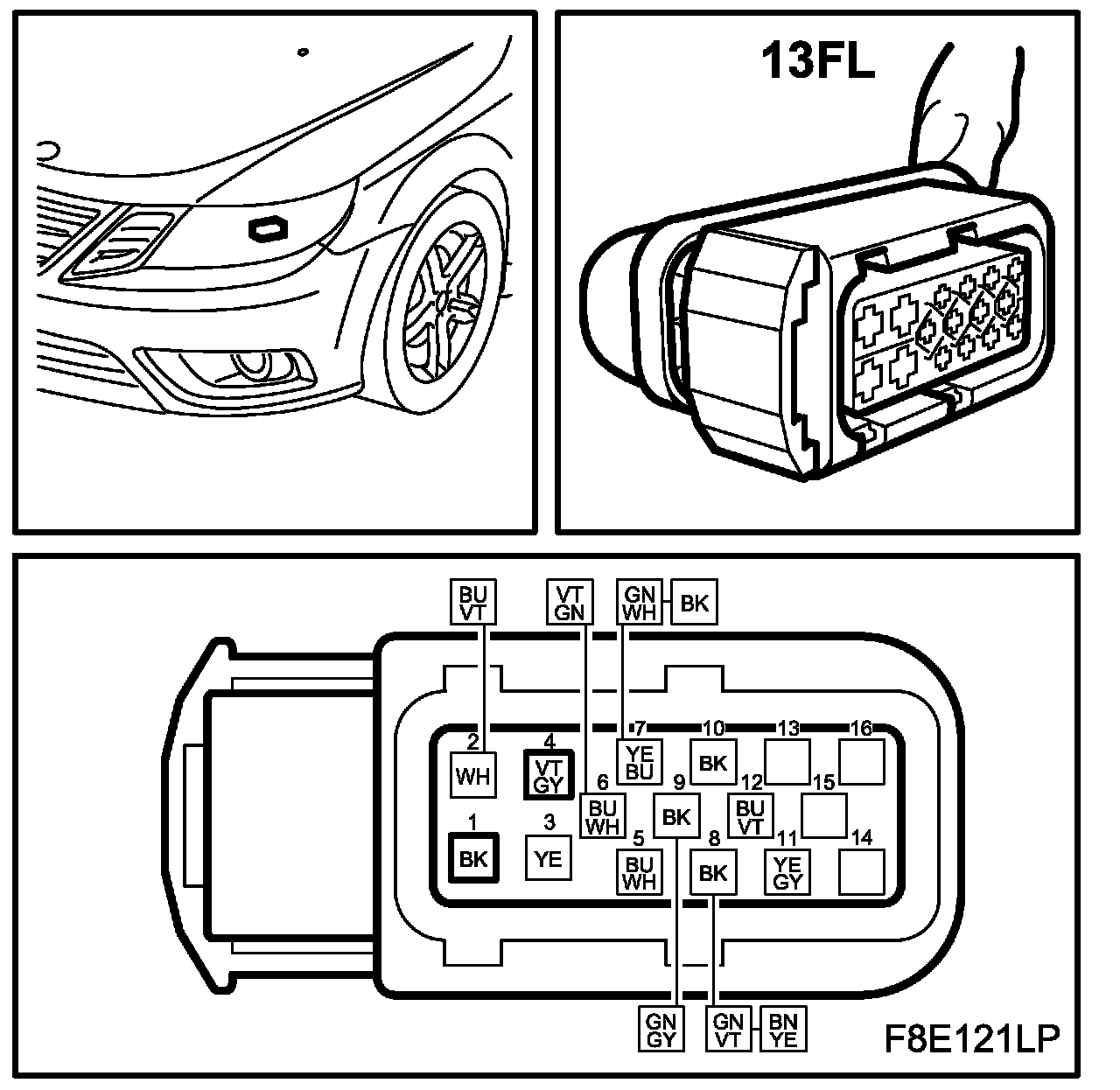

Front Left Parking Light Bulb (13FL)

Front Left Parking Light Bulb (13FL):
