Home >> Saab >> 2006 >> 9-3 (9440) L4-2.0L Turbo (2.0 T) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Oxygen Sensor >> Front Heated Oxygen Sensor (592)

Front Heated Oxygen Sensor (592)



Location:

B207

Component: before the catalytic converter

Connector: blue connector on the console between the power steering pump and the vacuum pump

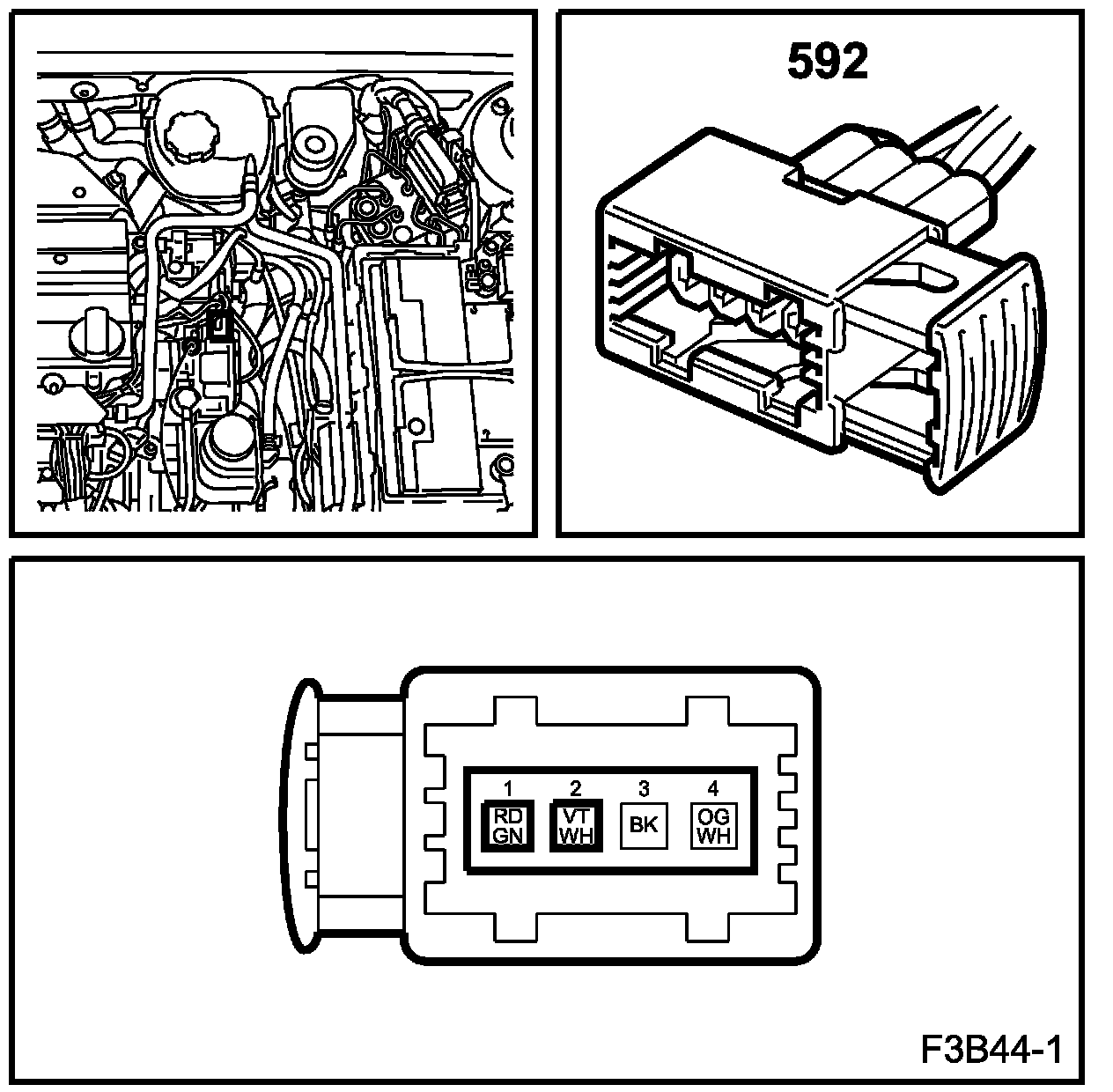

Front Heated Oxygen Sensor (592):
