Saab
>>
2006
>>
9-3 (9440) L4-2.0L Turbo (2.0 T)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Oxygen Sensor Relay
Oxygen Sensor Relay

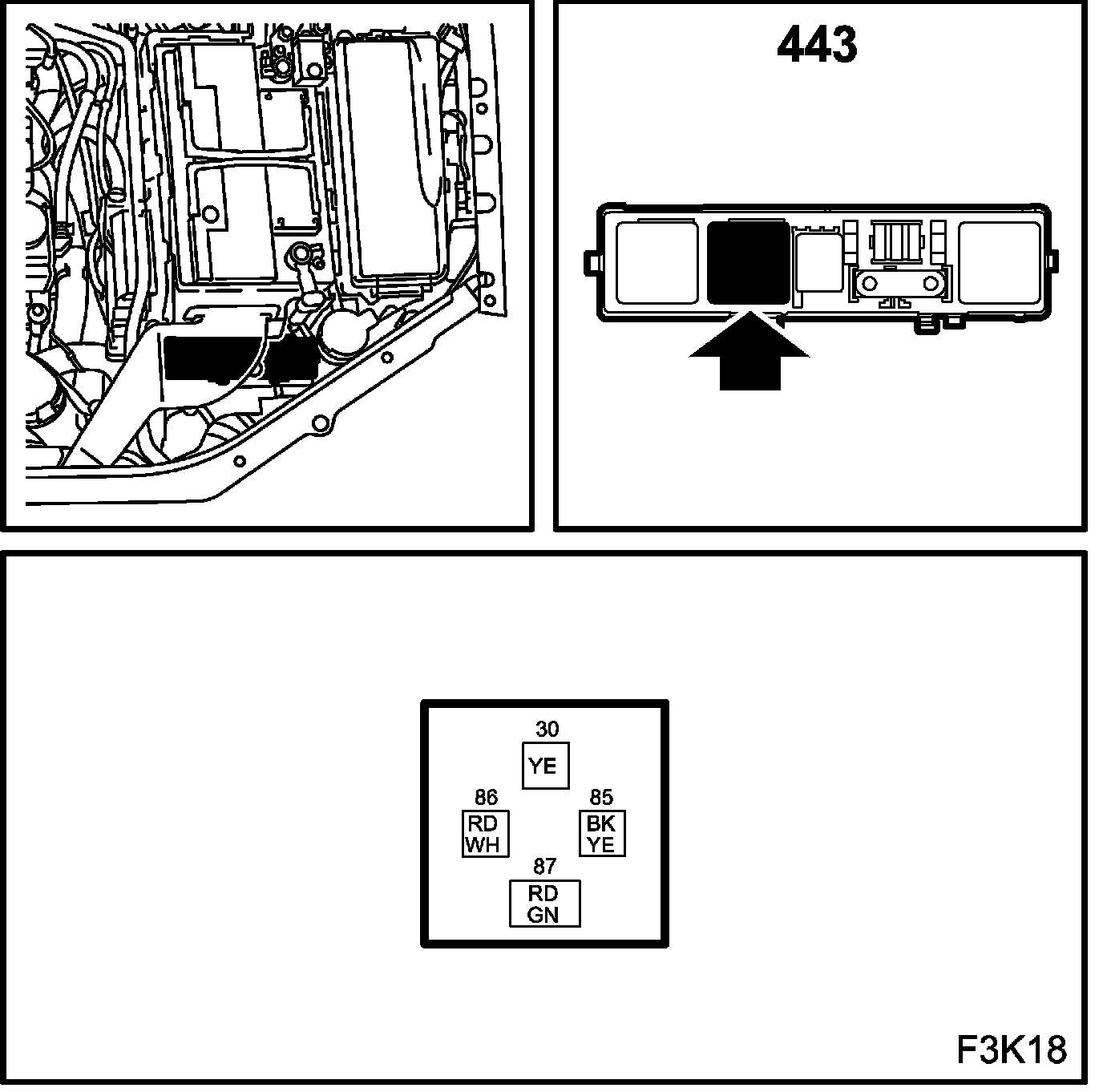

Location:
in the main fuse box in front of battery
Heated Oxygen Sensor Relay (443):
