FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Saab
>>
2006
>>
9-3 (9440) L4-2.0L Turbo (2.0 T)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

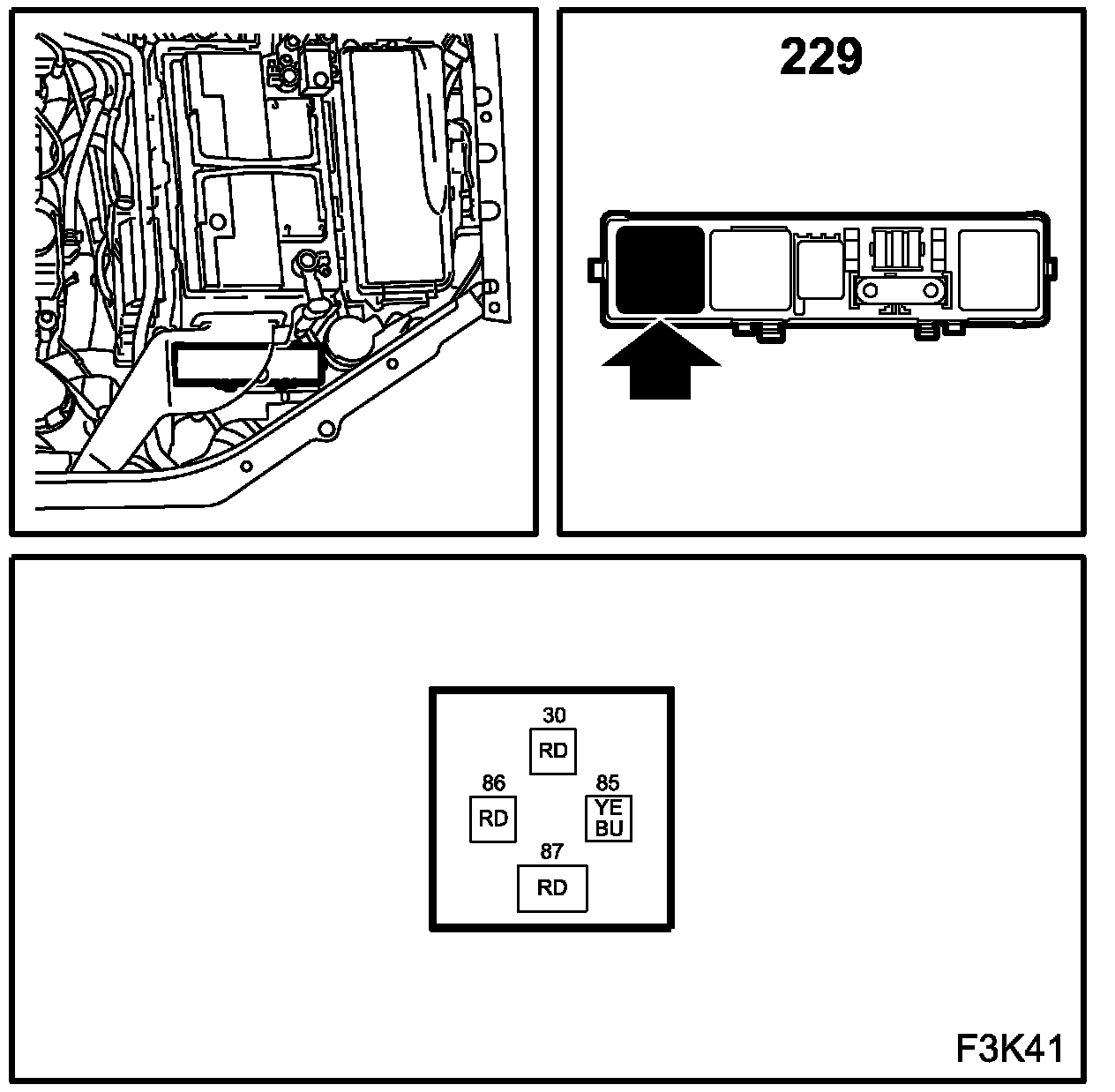

Main Relay (Computer/Fuel System)
Main Relay (Computer/Fuel System)
Location:
in the main fuse box in front of battery
T8
Main Relay, Engine Control System (229):
