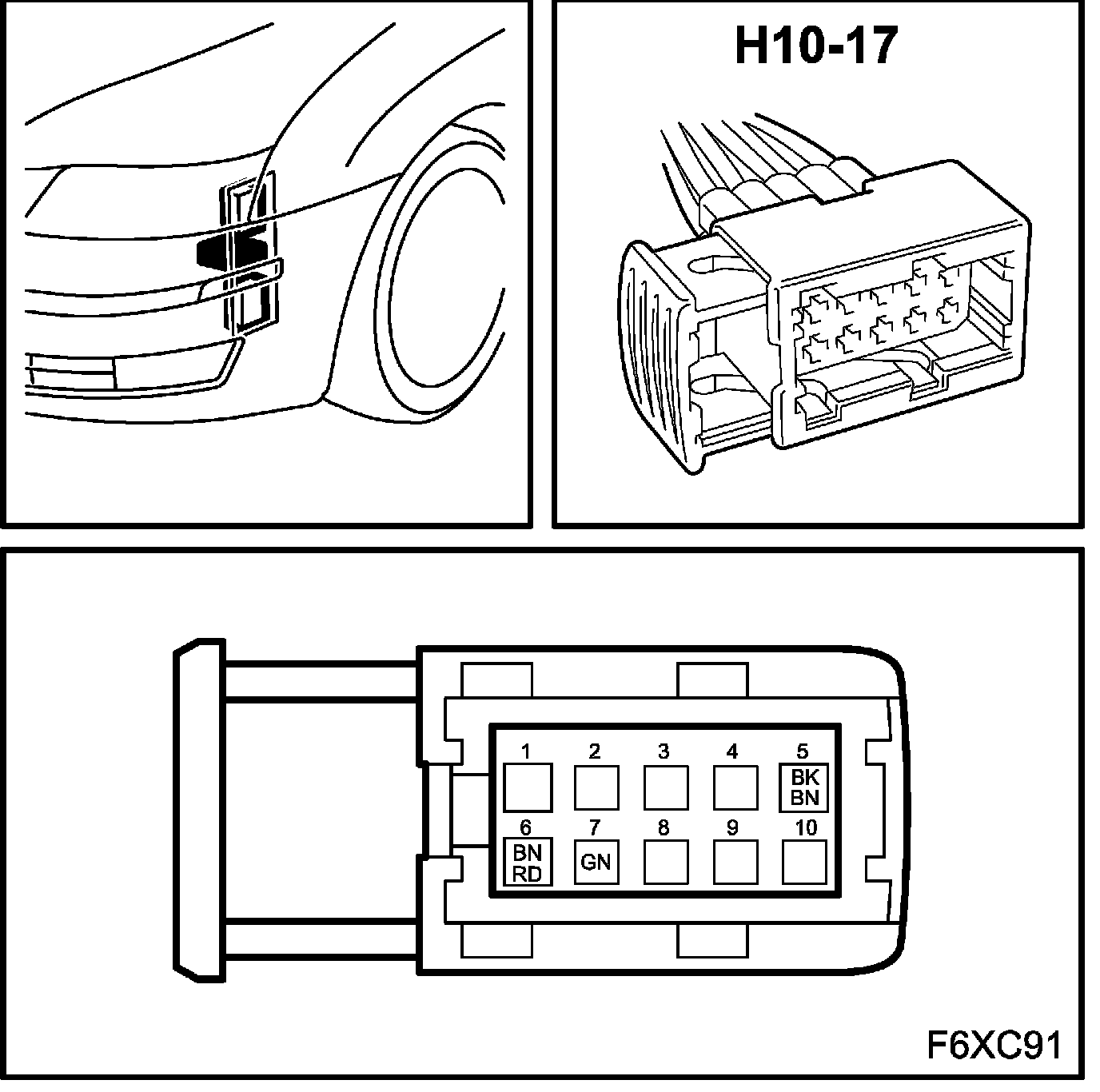

Connector H10-17
Connector H10-17
Location:
Blue connector on bracket in front of battery on side of left structural member
Connector H10-17:
