Steering Wheel Contact Unit Airbag (336) - From Instrument Loom,

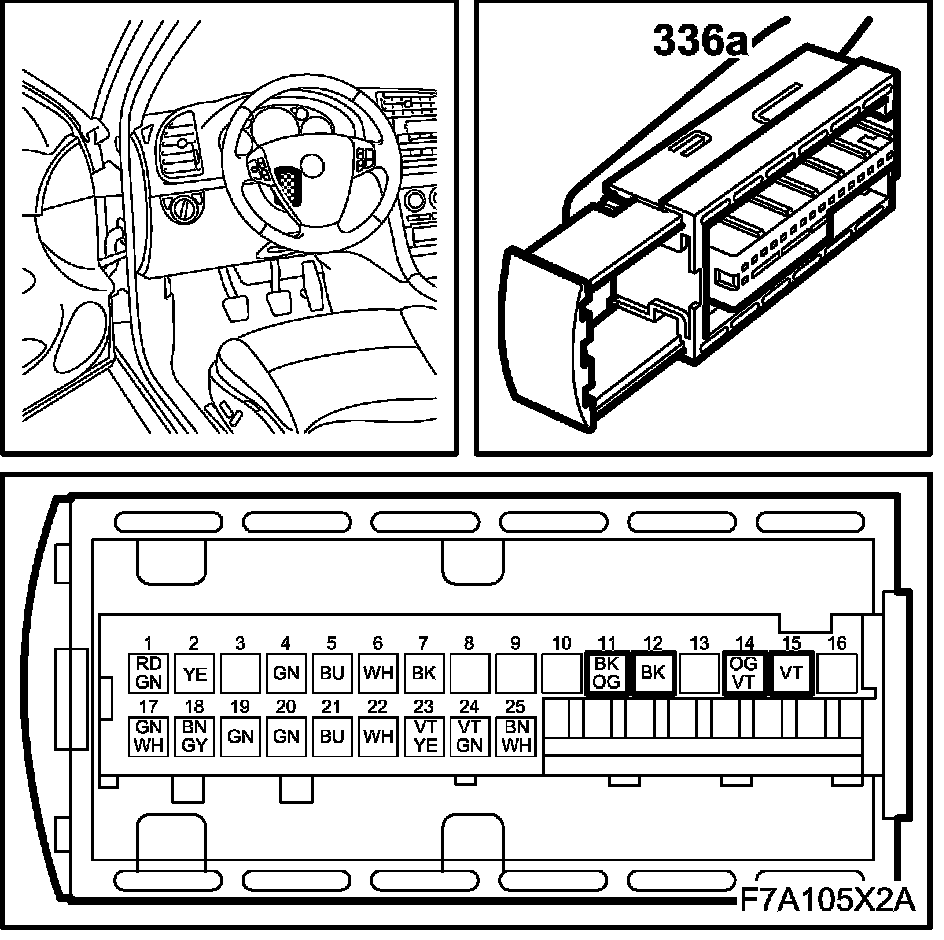

Steering Wheel Contact Unit, Airbag (336a)

Location: Integrated in steering wheel assembly unit. Connection from the instrument loom.
