Home >> Saab >> 2006 >> 9-3 (9440) L4-2.0L Turbo (2.0 T) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Clockspring Assembly / Spiral Cable, Air Bag >> Steering Wheel Contact Unit (336A) - From the Instrument Harness

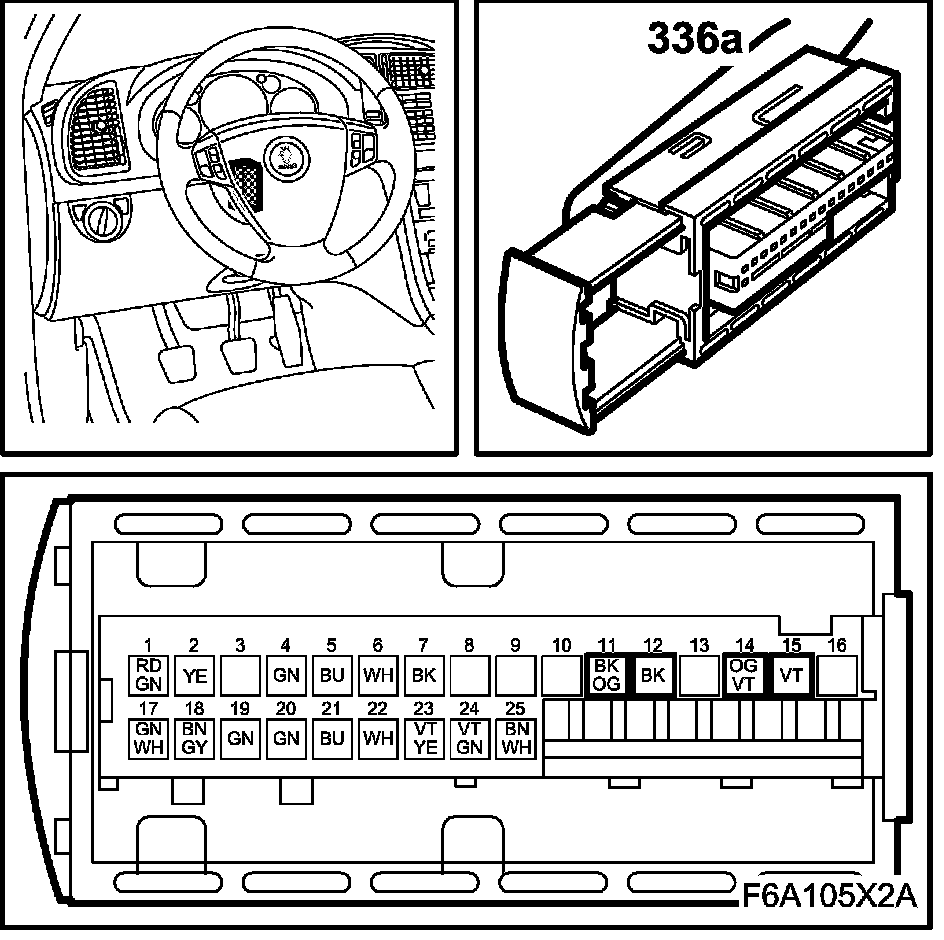

Steering Wheel Contact Unit (336A) - From the Instrument Harness





Steering Wheel Contact Unit (336)

Location: Integrated in steering column unit. Connection from the instrument wiring harness.
