Air Bag Control Module
>>
Airbag Control Module (331)
Airbag Control Module (331)

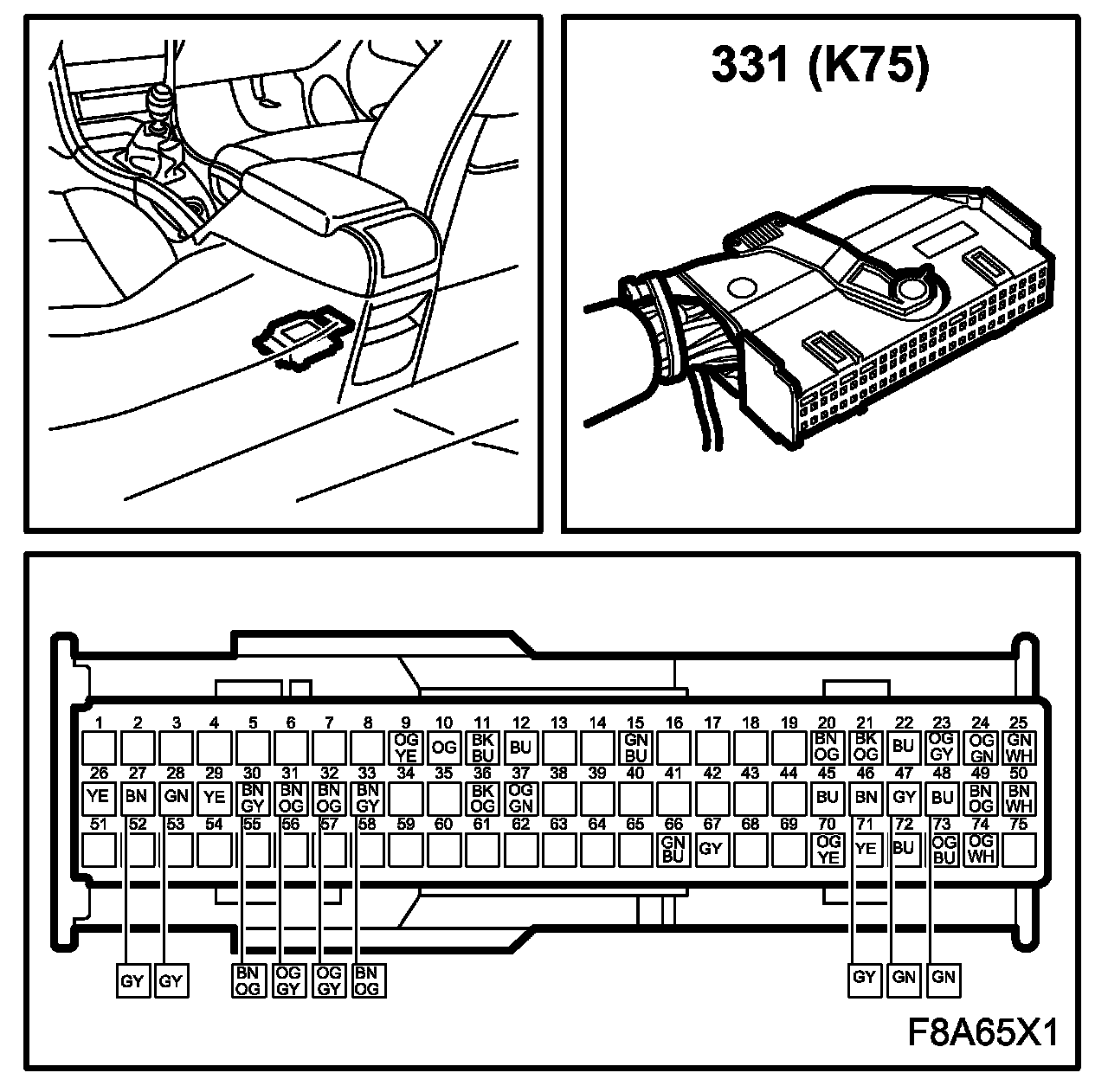

Location:
on the center tunnel behind the gear selector unit
K30
Airbag control module (331):
K75
Airbag control module (331):
