Speaker: Description and Operation

Speaker (266)

Main task
To convert electric impulses to sound from the audio system in the car.

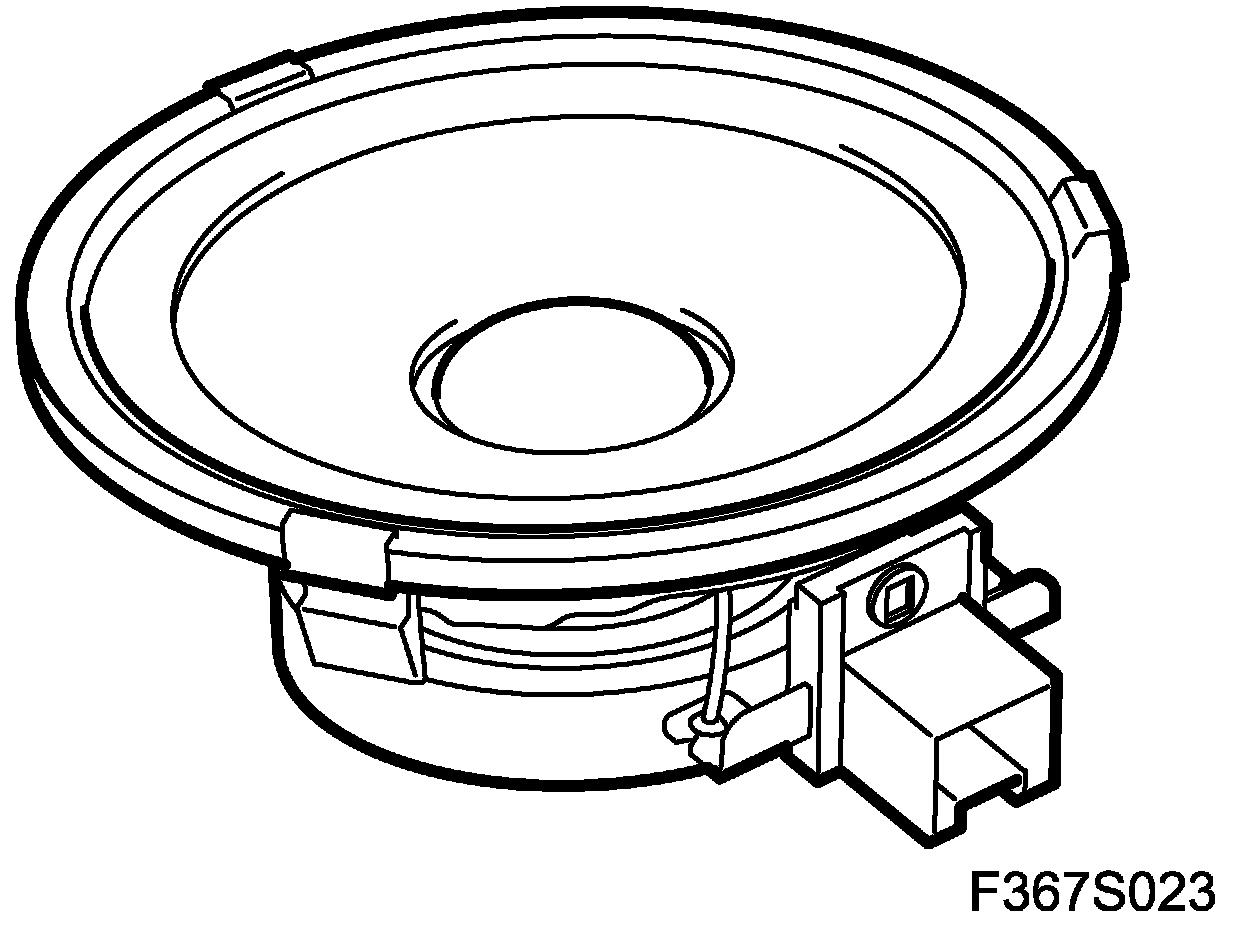

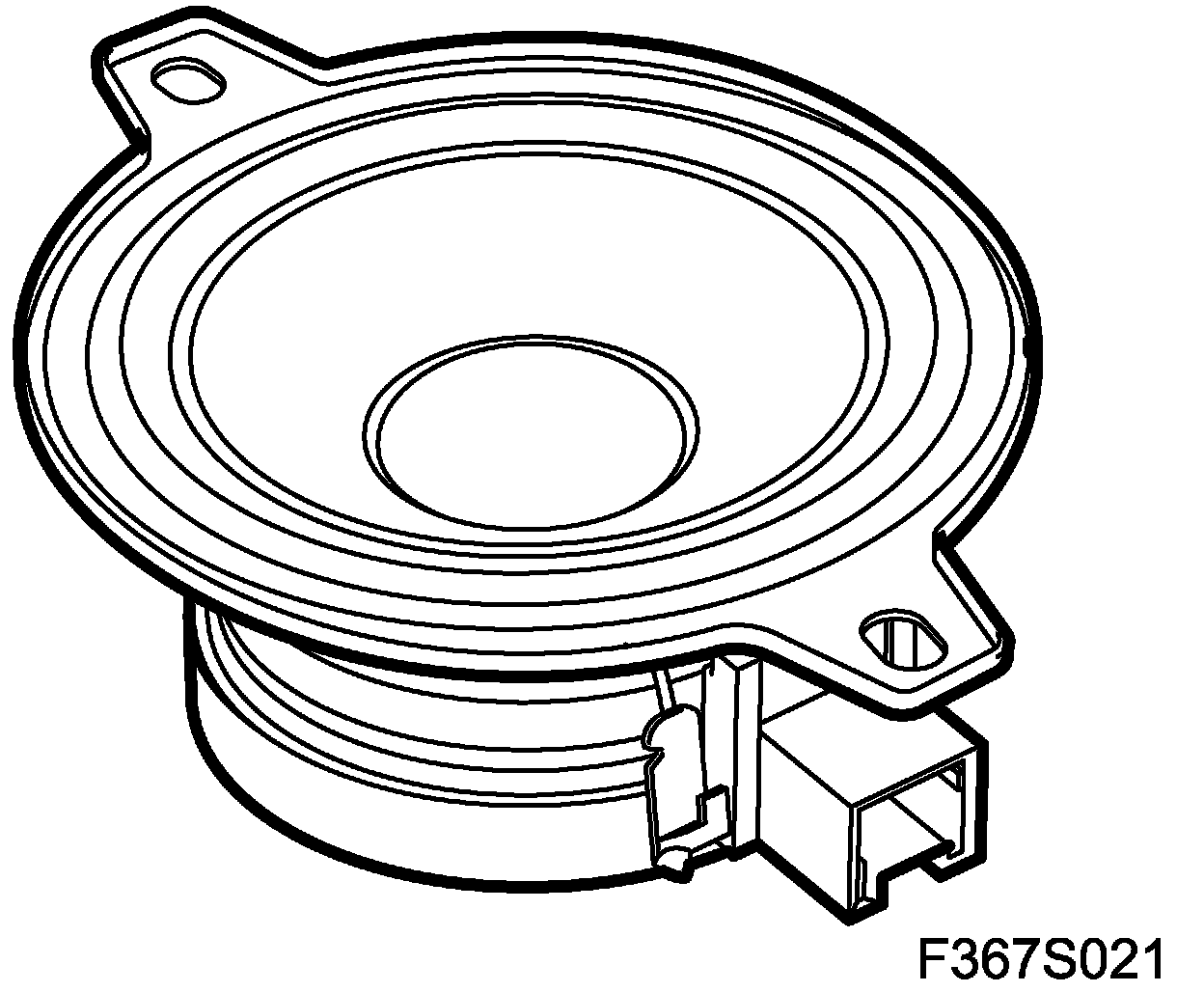

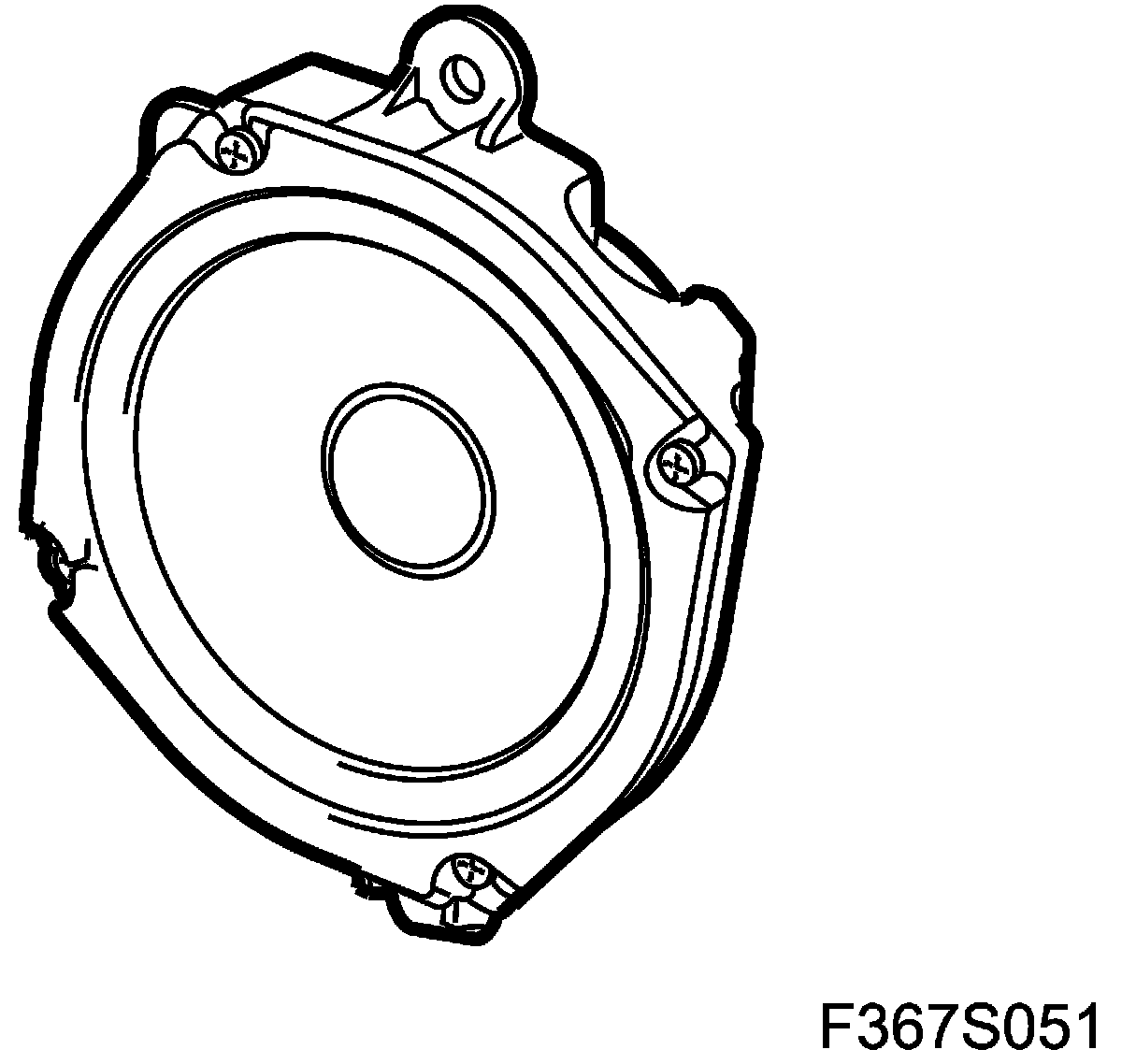

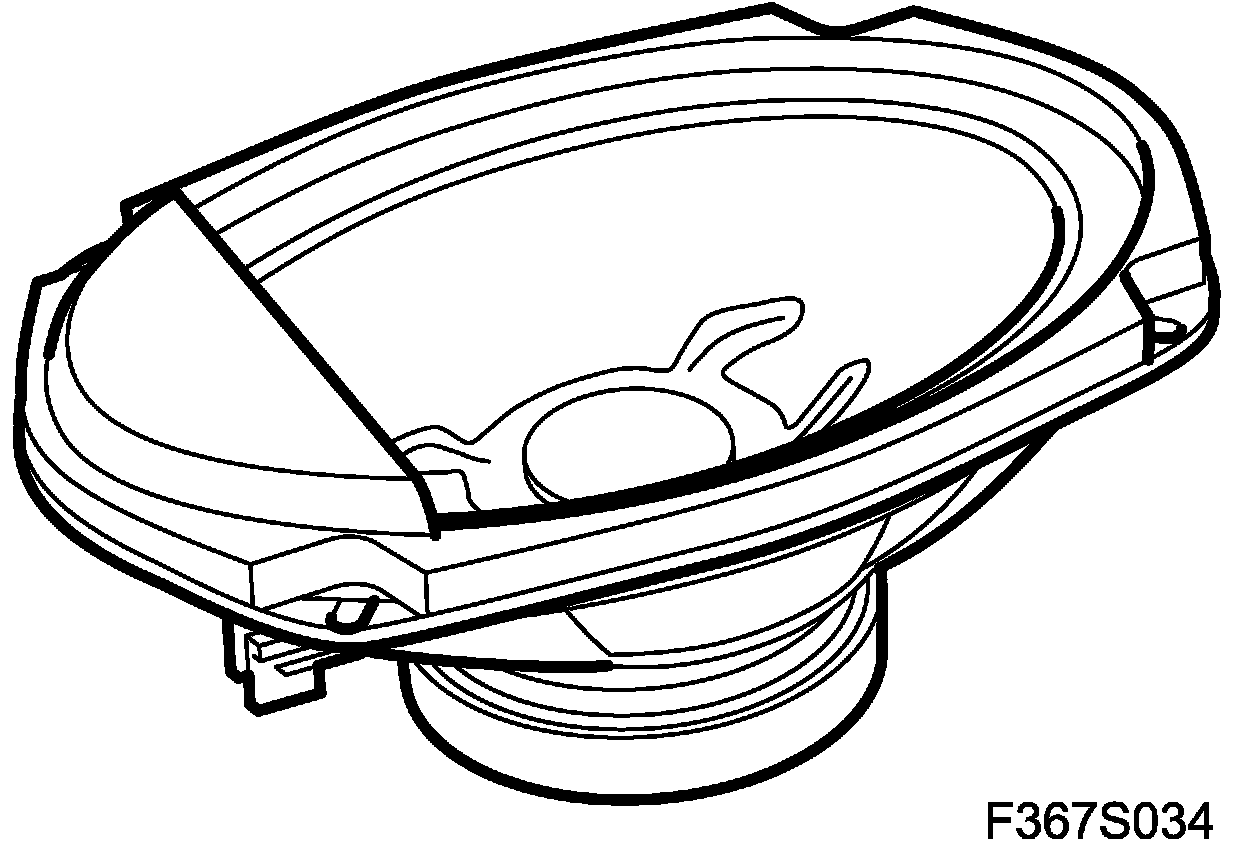

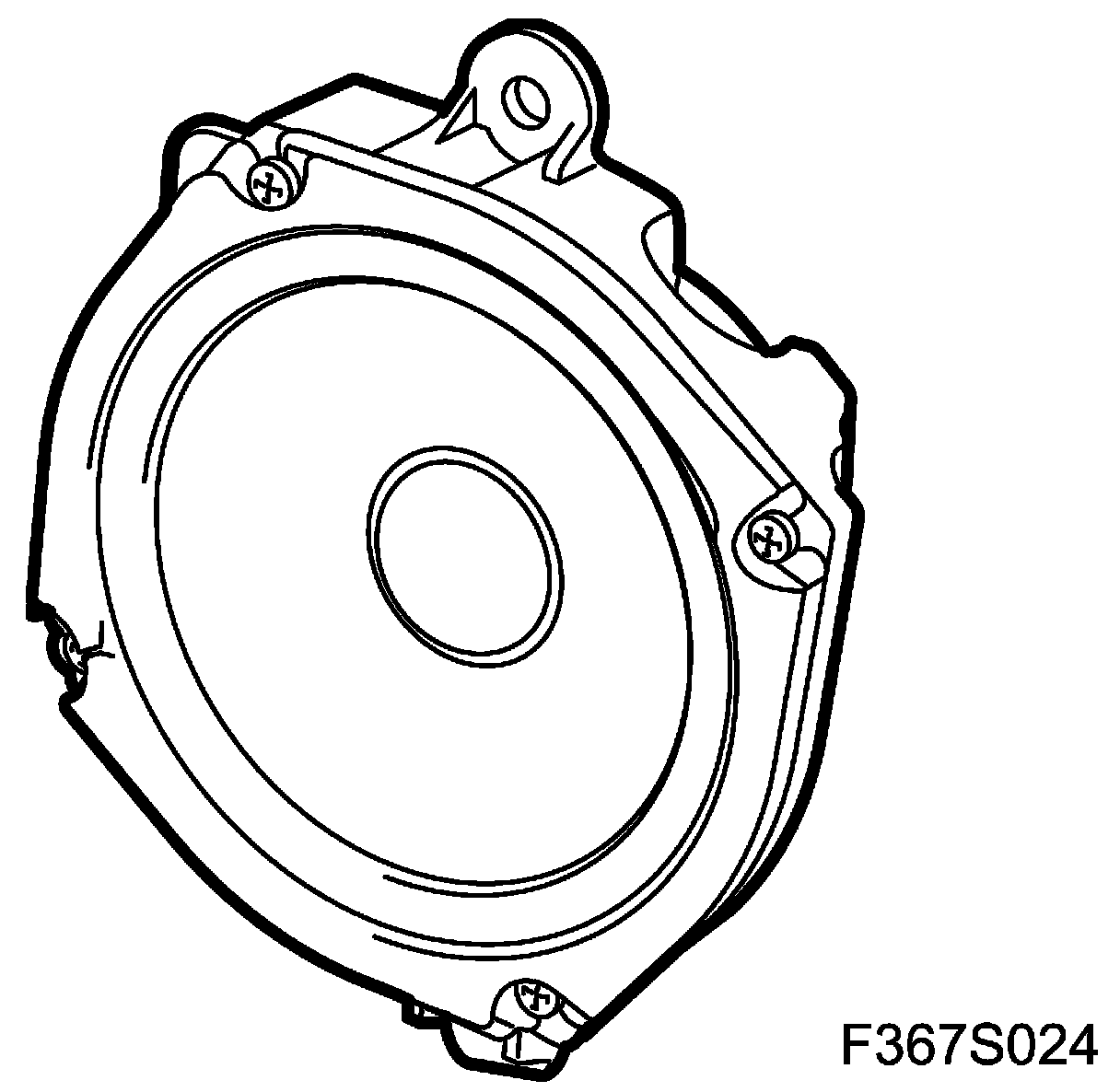

Type

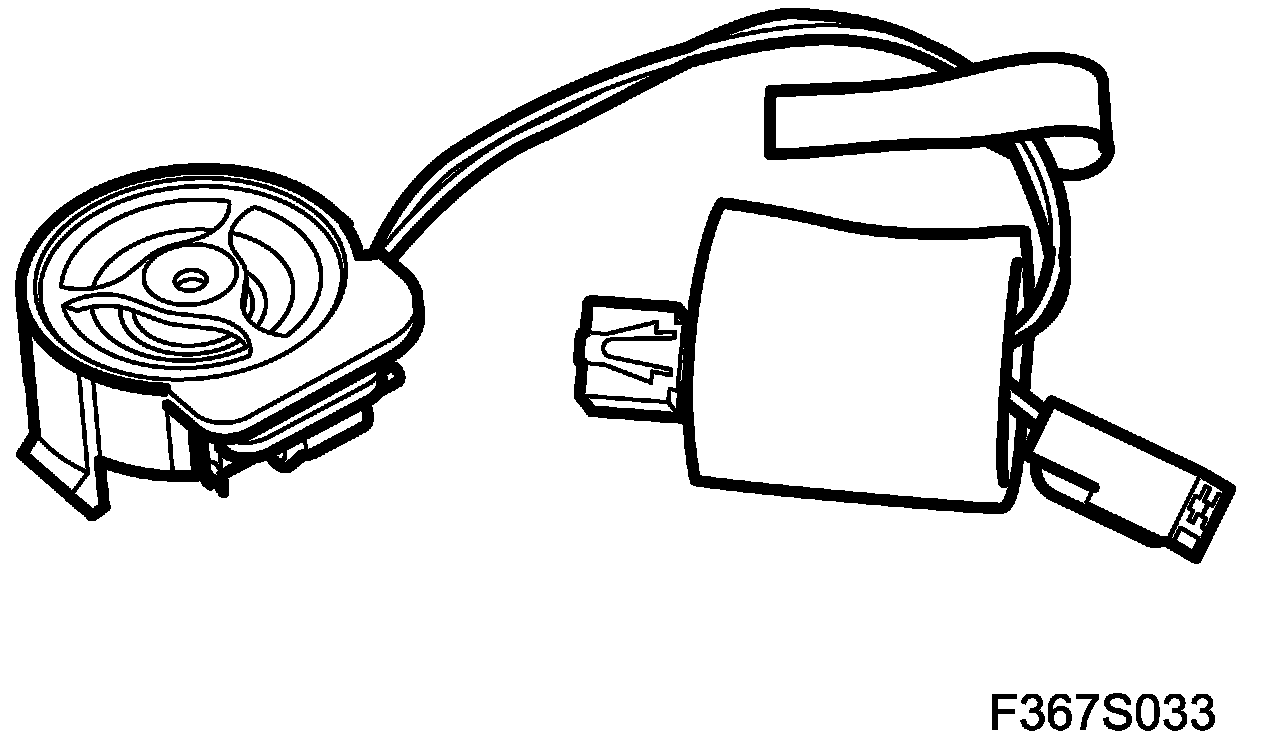

Tweeter





Mid-range speaker








Bass speaker





Speaker, bass/mid-range





Bass speaker/woofer





The car has four different equipment levels:
Speakers, Premium 70
Speakers, Premium 150
Speakers, Prestige 300
Speakers, Bose (R) Centerpoint (R) Surround System

Connection
Speaker connection:
+ to pin 2
- to pin 1
Subwoofer connection
right channel: - to pin 1, + to pin 2
left channel: - to pin 3, + to pin 4
Wiring diagram, connection:
Audio amplifier (354)
Audio amplifier, bass speaker (354S)
Audio, Bose (R) Centerpoint (R) Surround System (part 1/2)
Audio, Bose (R), Centerpoint (R) Surround System (part 2/2)
