Main Components

Main components

4D

Premium 150 / Bose (R) Sound System








Bose (R) Centerpoint (R) Surround System

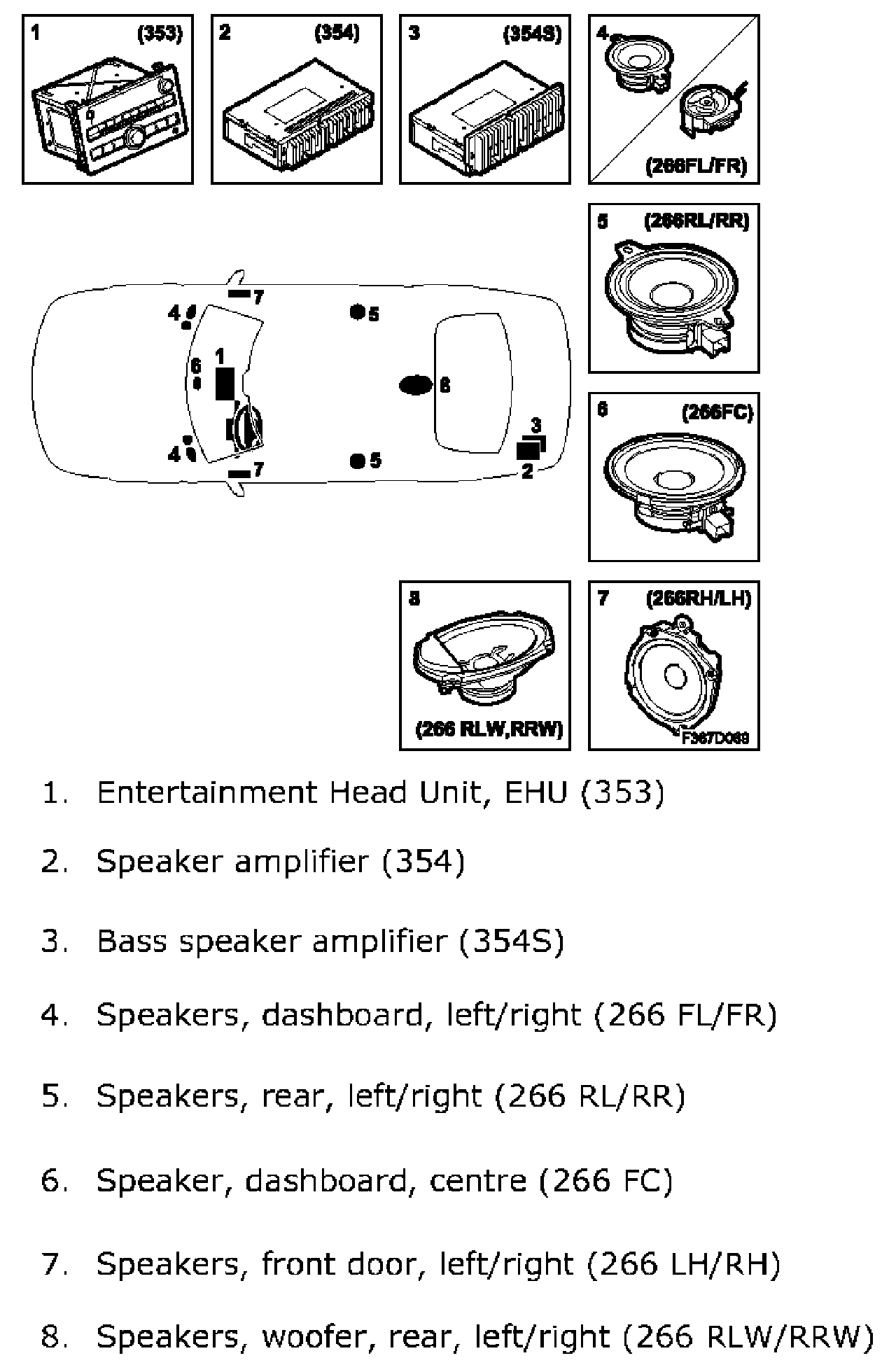

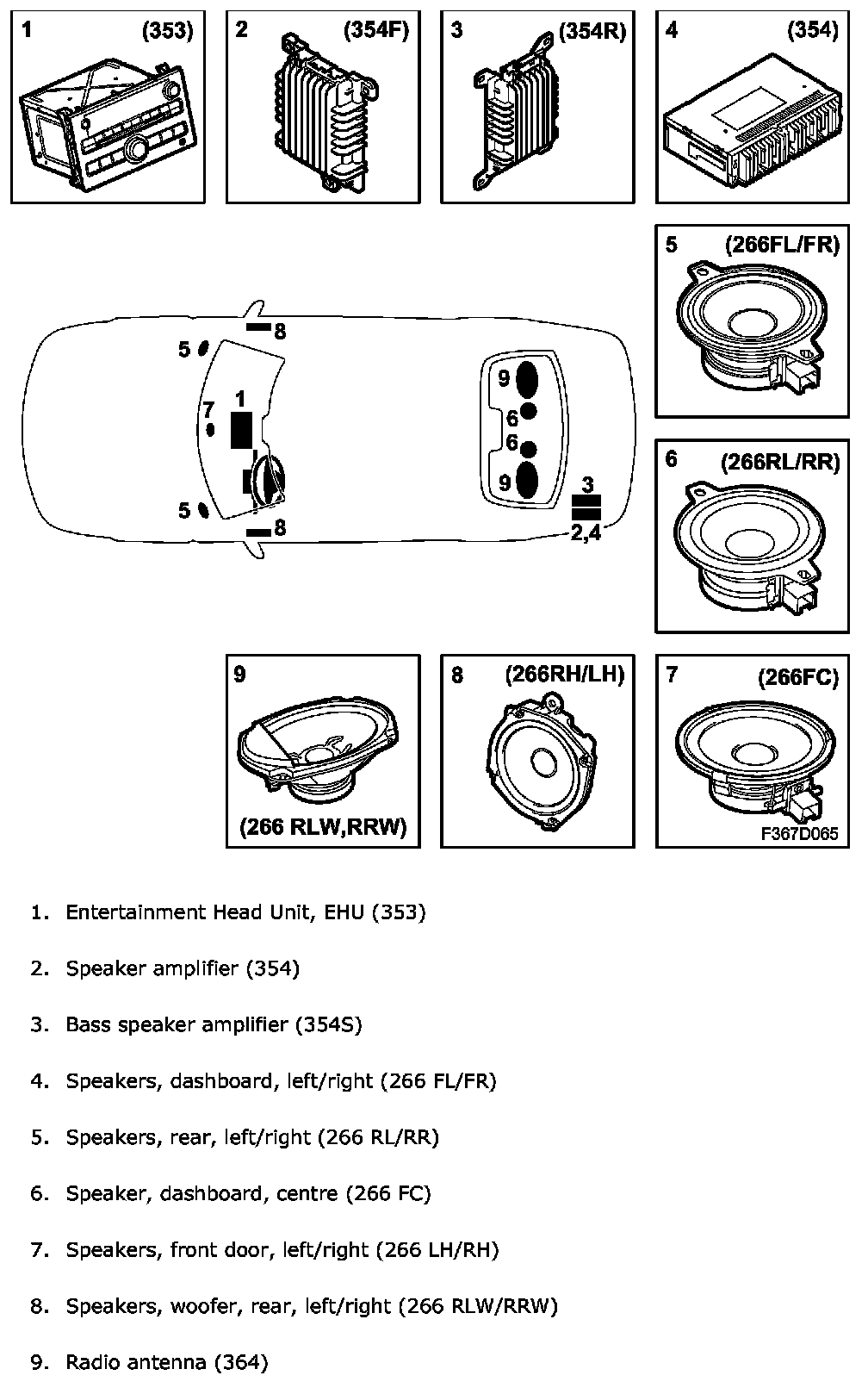

^ Entertainment Head Unit, EHU (353)
^ Amplifier, speakers (354SM)
^ Speakers, dashboard, left/right (266 FL/FR)
^ Speakers, rear, left/right (266 RL/RR)
^ Speaker, dashboard, center (266 FC)
^ Speakers, front door, left/right (266 LH/RH)
^ Speakers, woofer, rear, left/right (266 RLW/RRW)
^ Speakers, rear door, left/right (266 RPL/RPR)
^ Antenna (625)
^ Antenna amplifier, radio (624)
^ Antenna filter (644)
^ Steering wheel controls (633)
^ Column Integration Module, CIM (703)

Premium 150 / 300








Bose (R) Centerpoint (R) Surround System

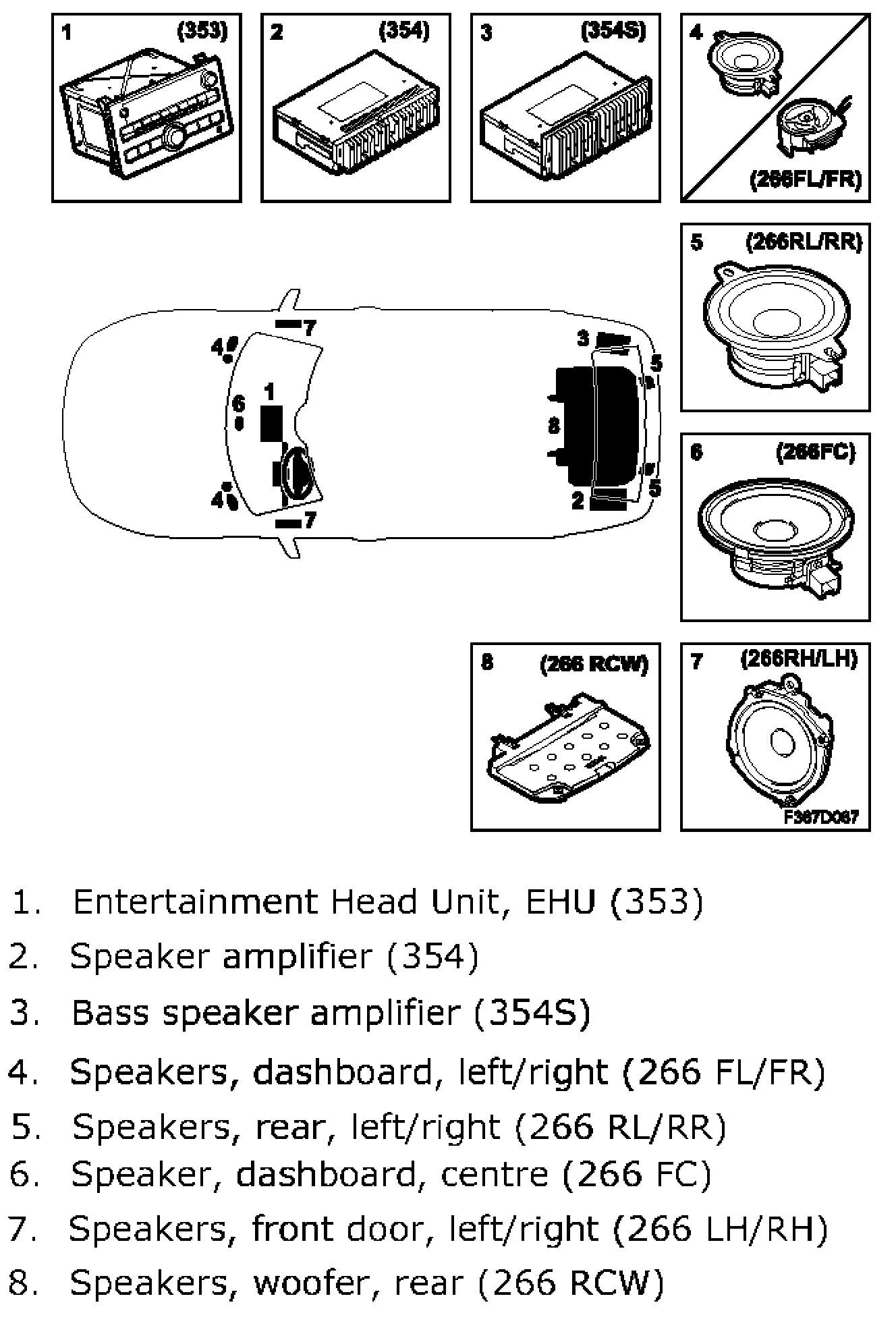

^ Entertainment Head Unit, EHU (353)
^ Amplifier, speakers, (354SM)
^ Speakers, dashboard, left/right (266 FL/FR)
^ Speakers, rear, left/right (266 RL/RR)
^ Speaker, dashboard, center (266 FC)
^ Speakers, front door, left/right (266 LH/RH)
^ Speakers, woofer, rear (266 RCW)
^ Speakers, rear door, left/right (266 RPL/RPR)

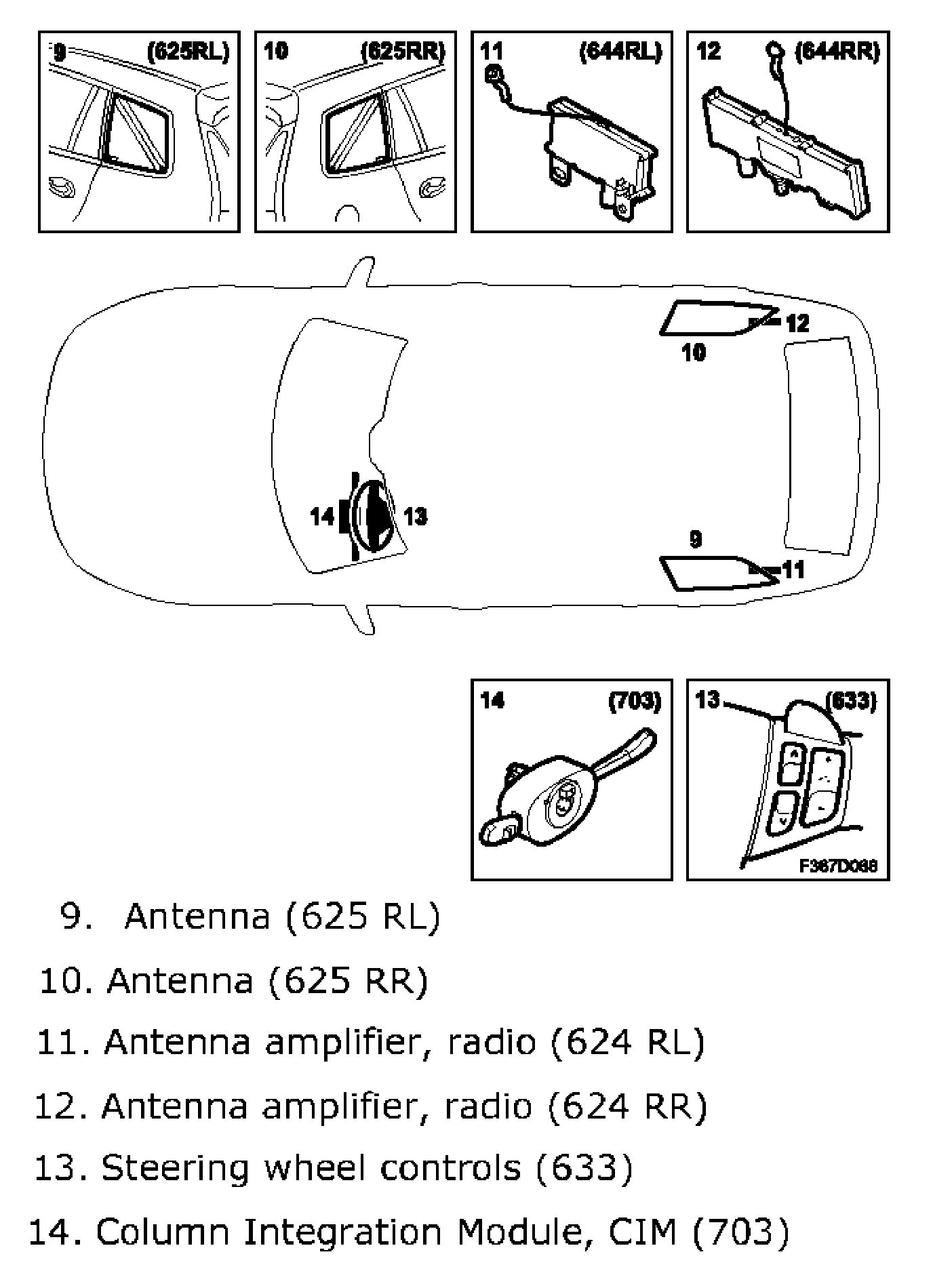

^ Antenna (625 RL)
^ Antenna (625 RR)
^ Antenna amplifier, radio (624 RL)
^ Antenna amplifier, radio (624 RR)
^ Steering wheel controls (633)
^ Column Integration Module, CIM (703)

Premium 150/300
