Amplifier (354), 4D, CV, Premium 150

Amplifier (354), 4D, CV, Premium 150

To remove

WARNING: The amplifiers may be very hot so extreme caution must be exercised.

1. Carry out actions before removing control module.
2. CV: Remove the side trim on the left-hand side of the luggage compartment.

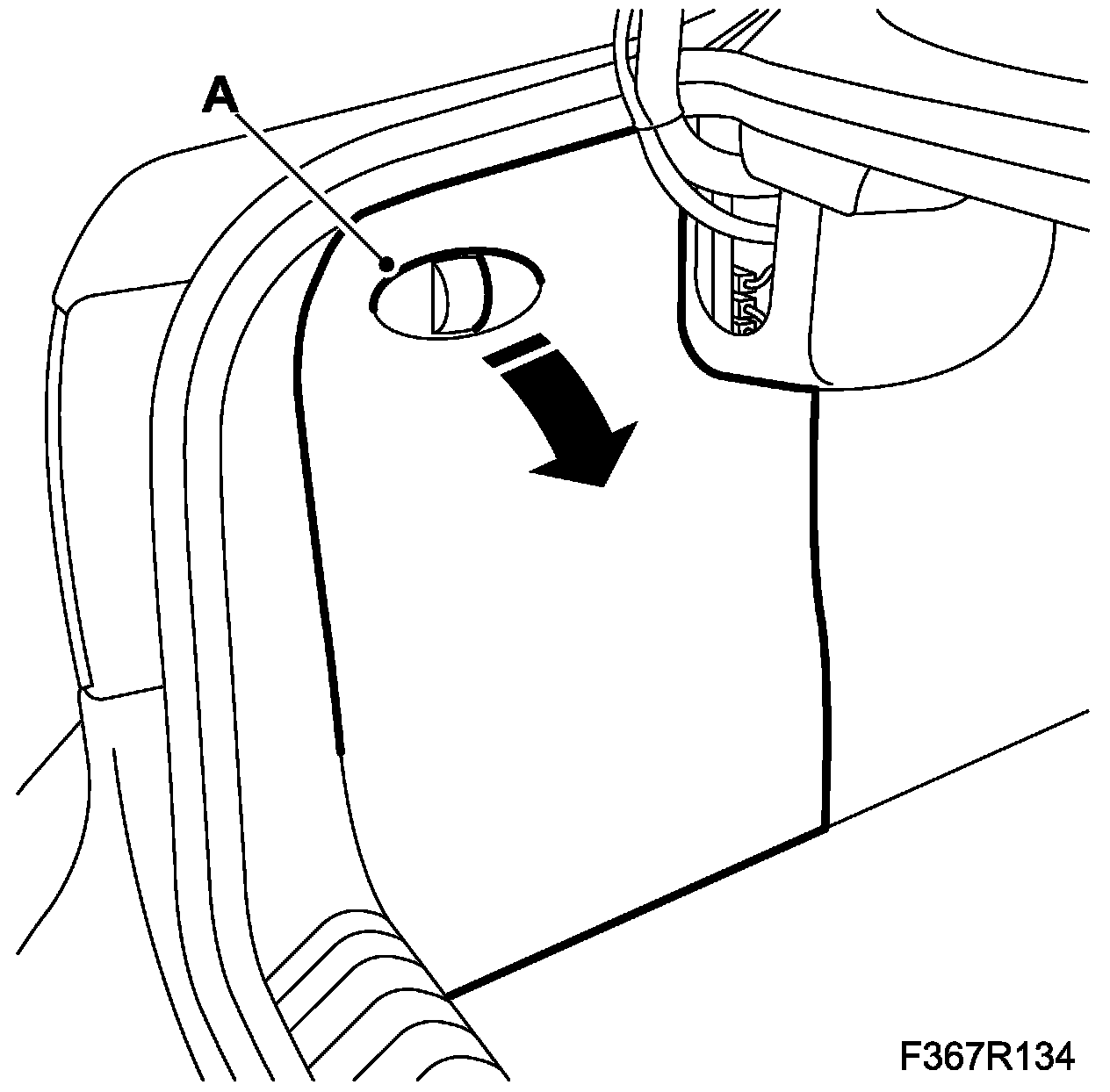

4D: Open the left side hatch (A) in the luggage compartment.

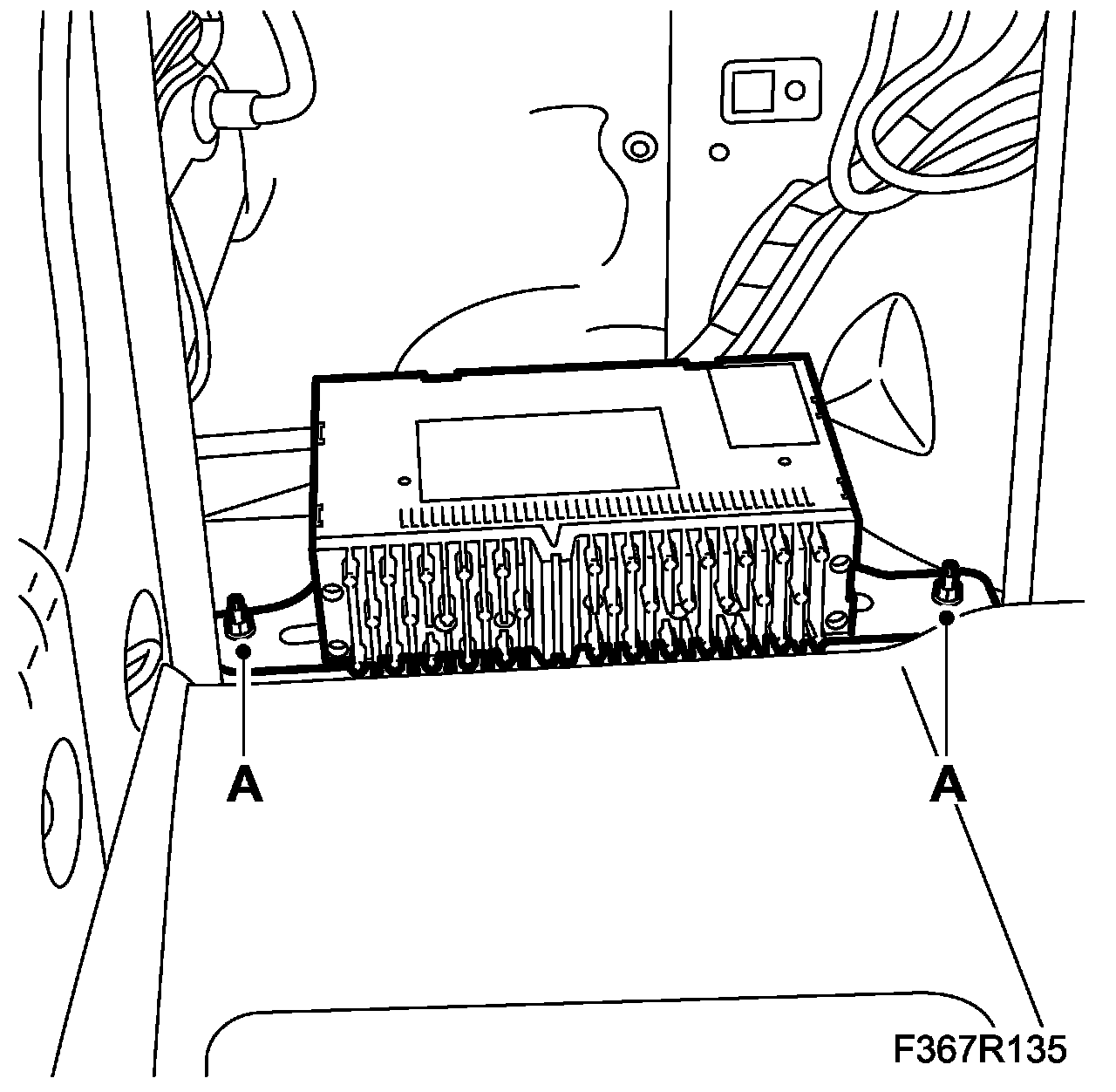

3. Remove the amplifier nuts (A).

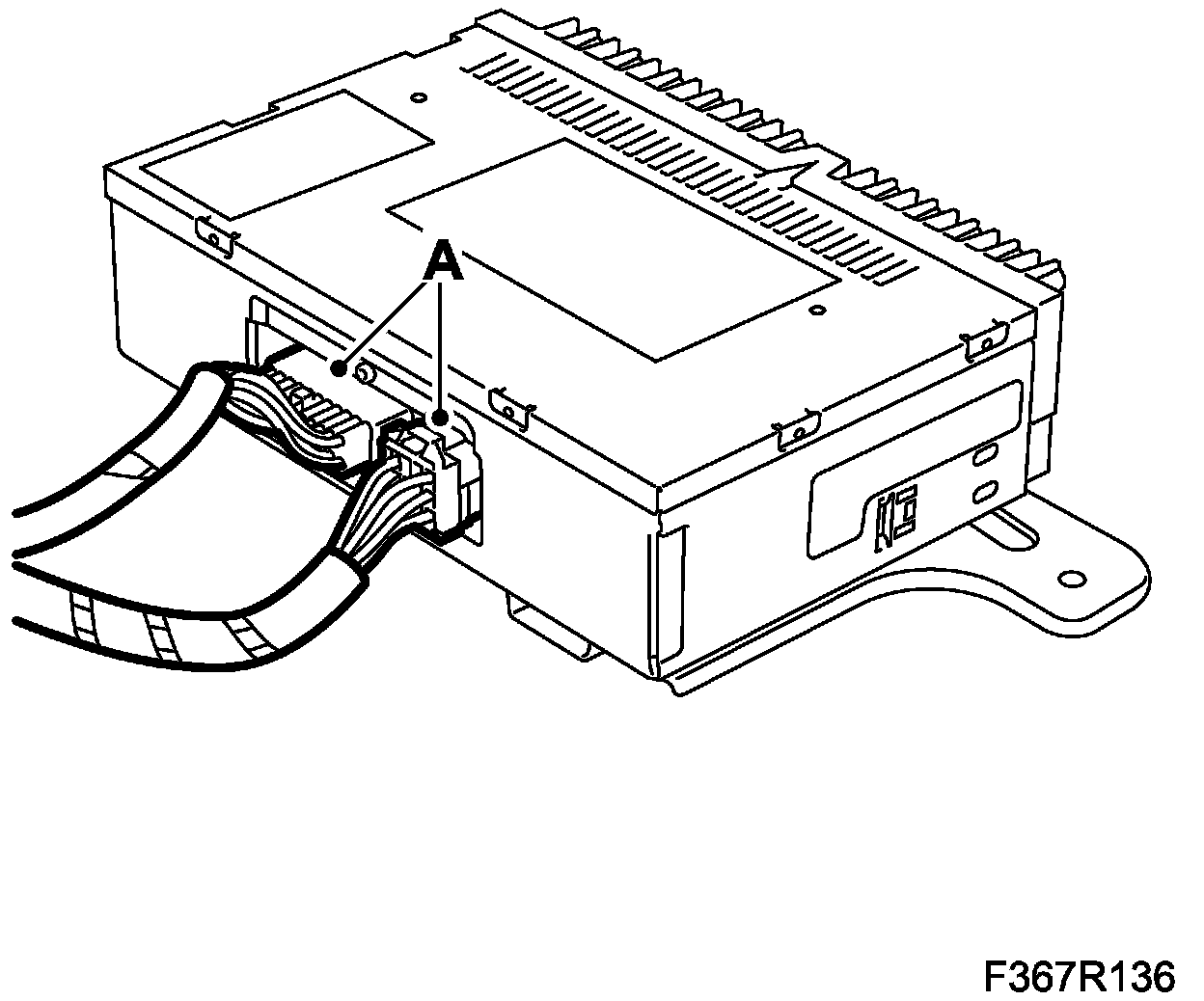

4. Lift out the amplifier and unplug the connectors (A).

IMPORTANT: Take care when releasing the locking mechanism on the connector so as not to damage the connector. Pull the halves straight apart to avoid bending the pins.

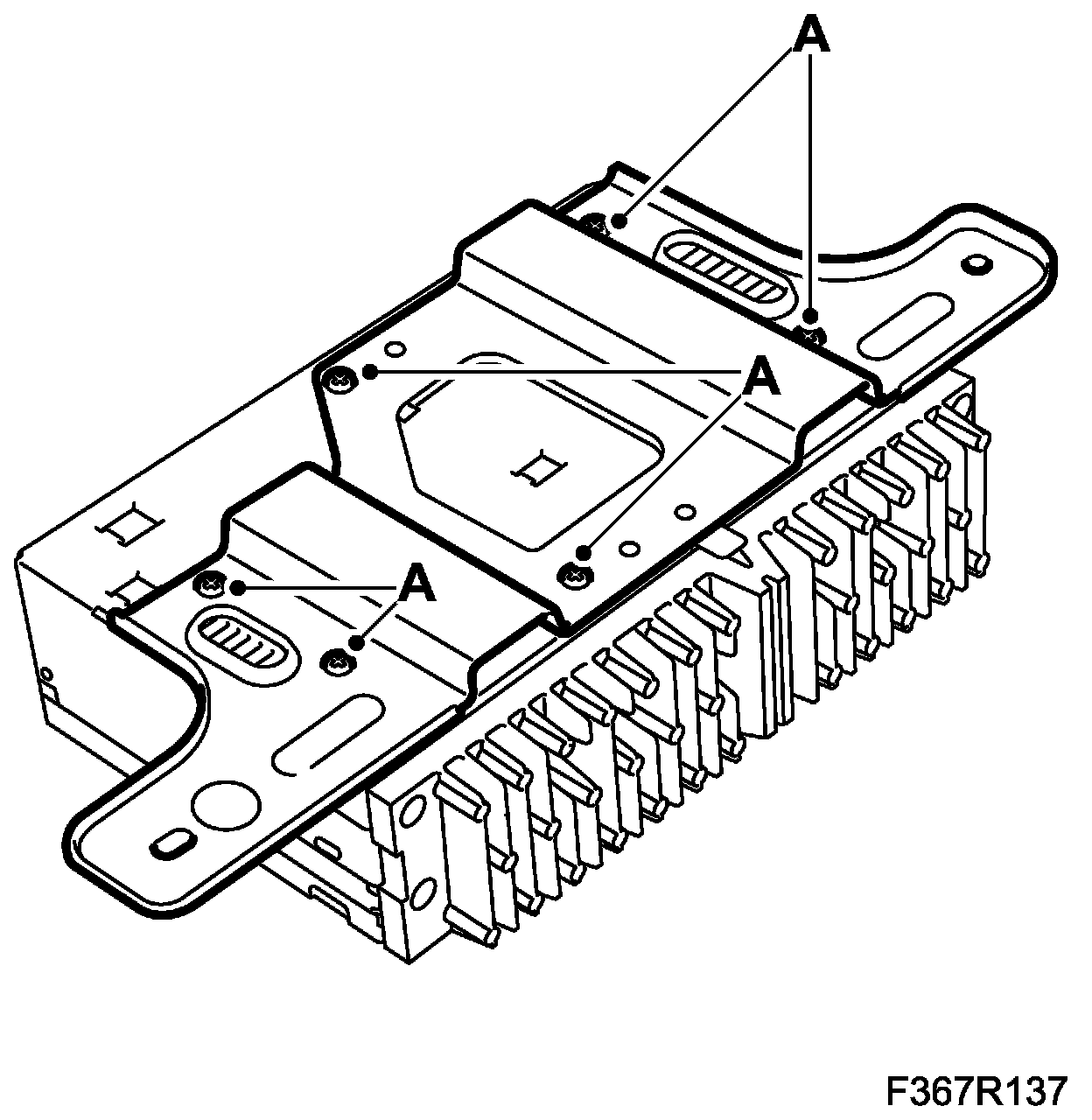

5. Remove the bracket (A) from the amplifier.





To fit
1. Fit the bracket (A) to the amplifier.

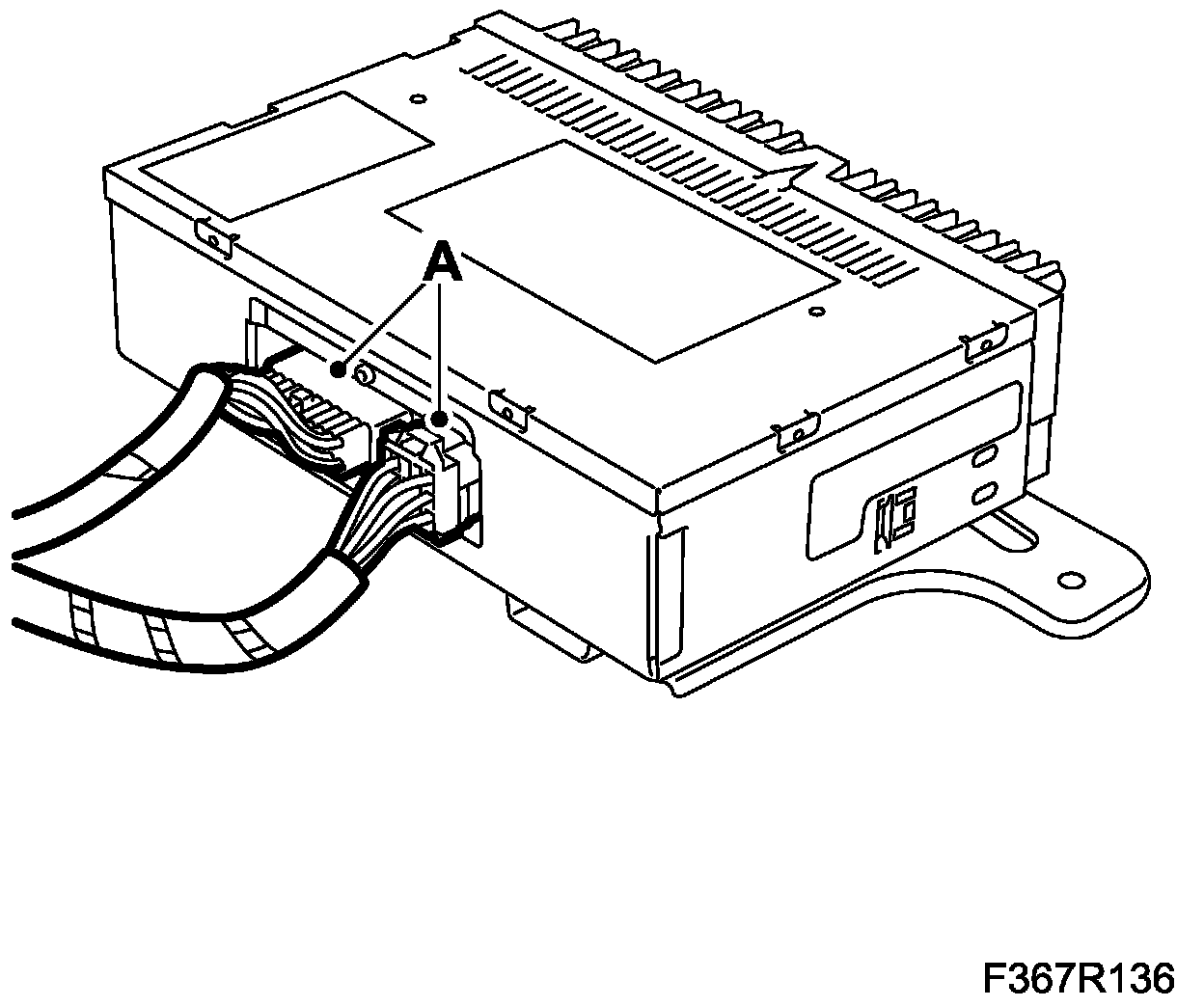

2. Plug in the connectors (A).

IMPORTANT: Take care when plugging in the connector so as not to damage or press out the pins/sleeves in the connector.





3. Fit the amplifier nuts (A).





4. CV: Fit the side trim on the left side of the luggage compartment.

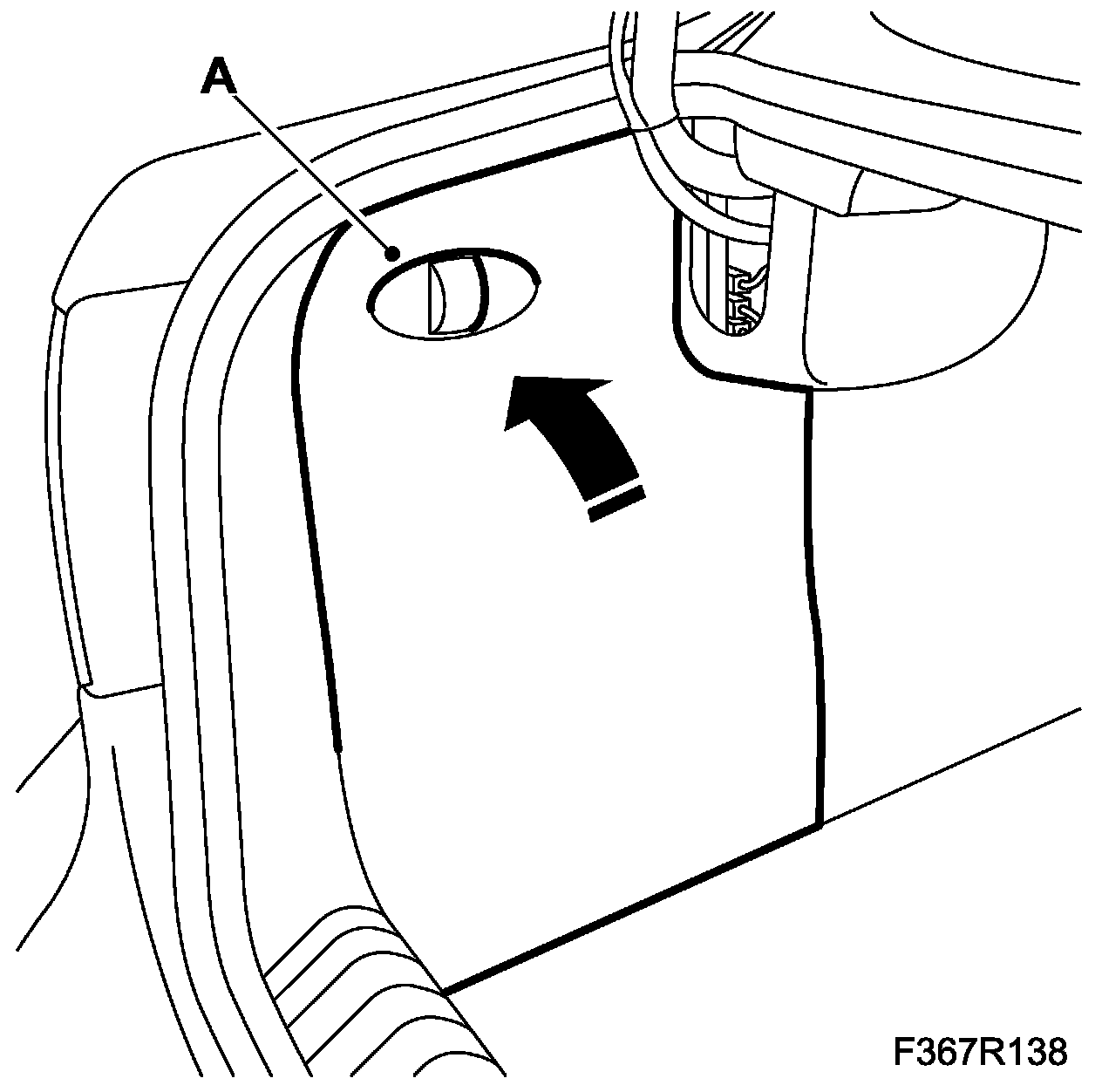

4D: Close the side hatch (A).





5. Carry out Procedure after control module replacement.
6. Check the function.
