Rear Speaker Amplifier (354R), Bose (R) Sound System

Rear Speaker Amplifier (354R), Bose (R) Sound System

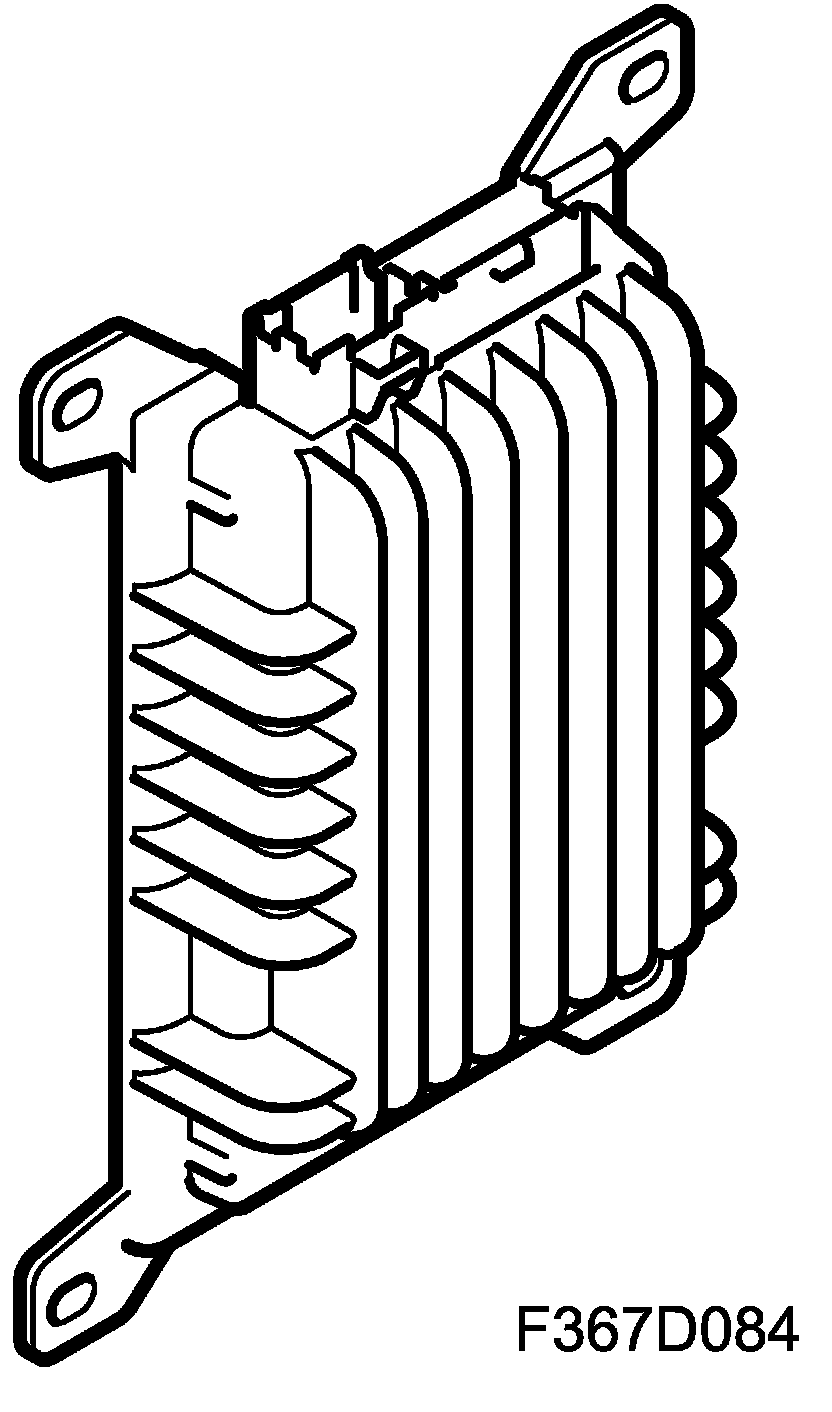

Location





Main purpose
Amplify and distribute sound to the bass speaker.

Type
Control module to supply output to the speaker.

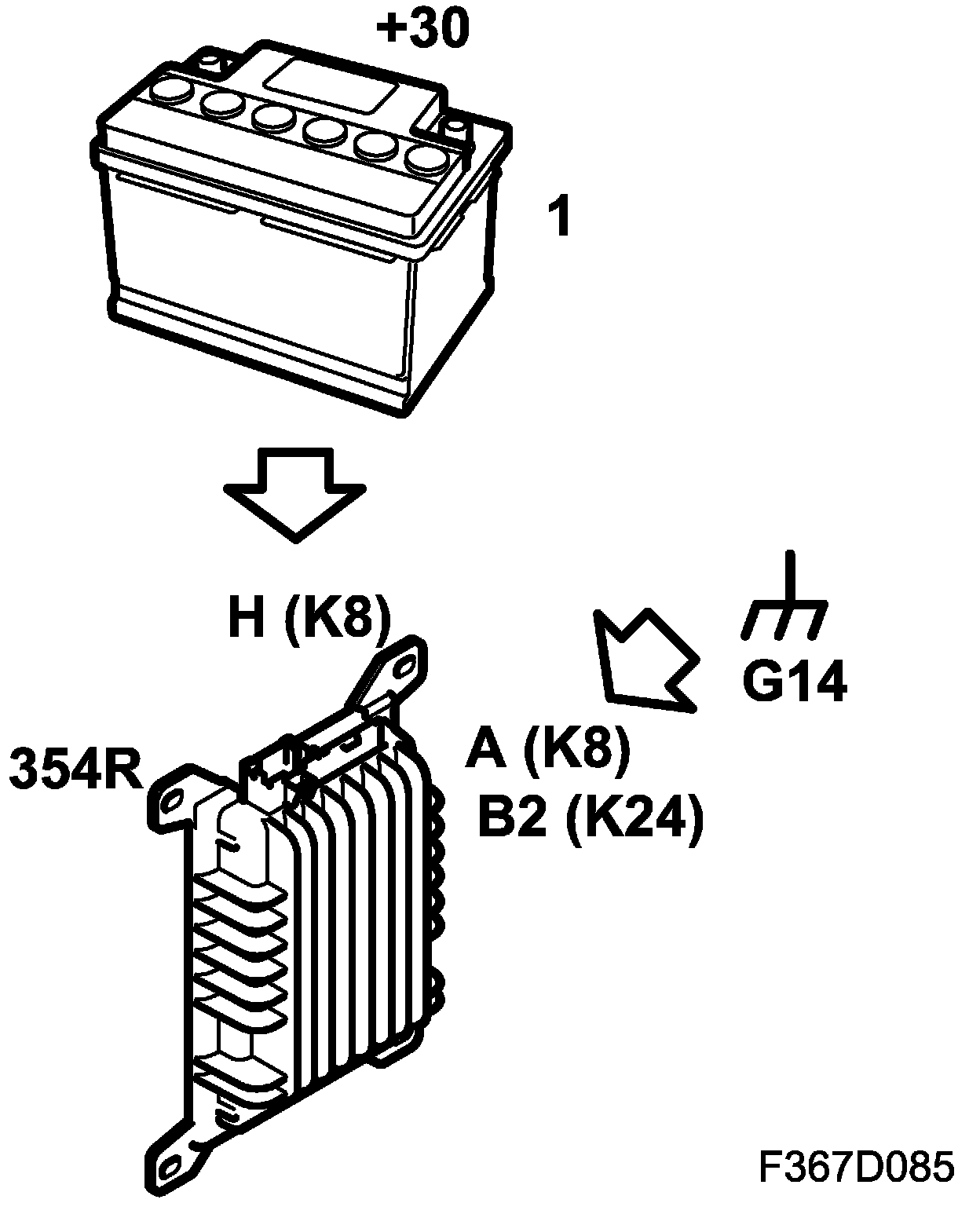

Connection

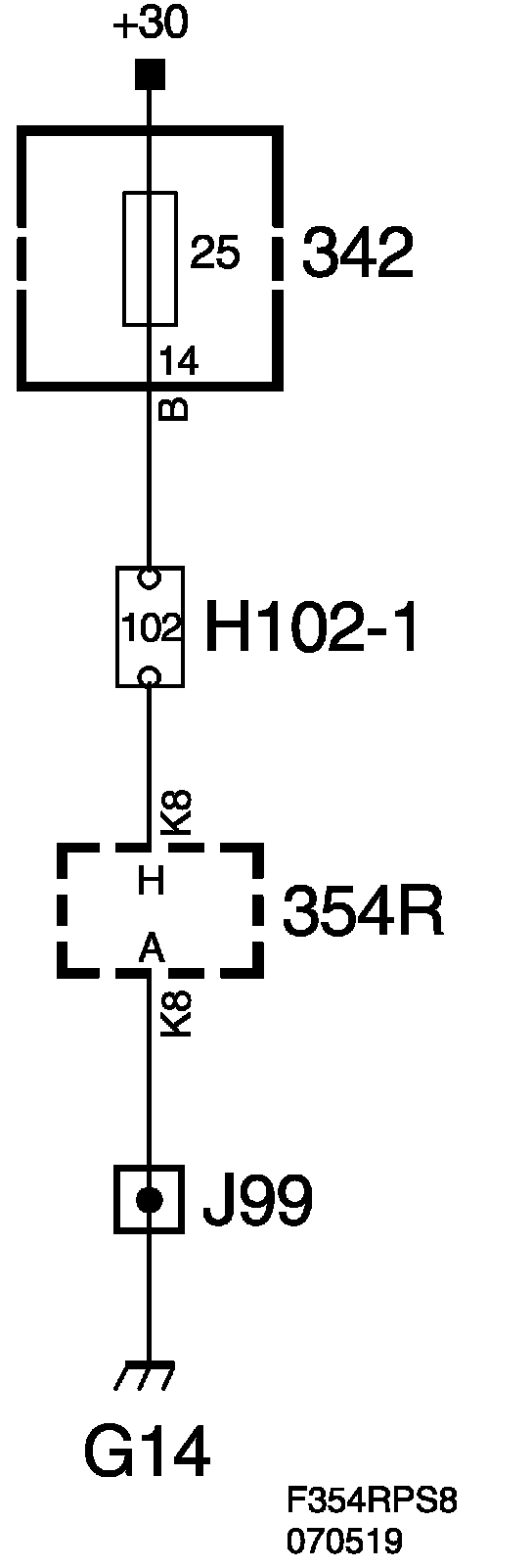

Wiring diagram, power supply
