Amplifier (354)



Amplifier (354)

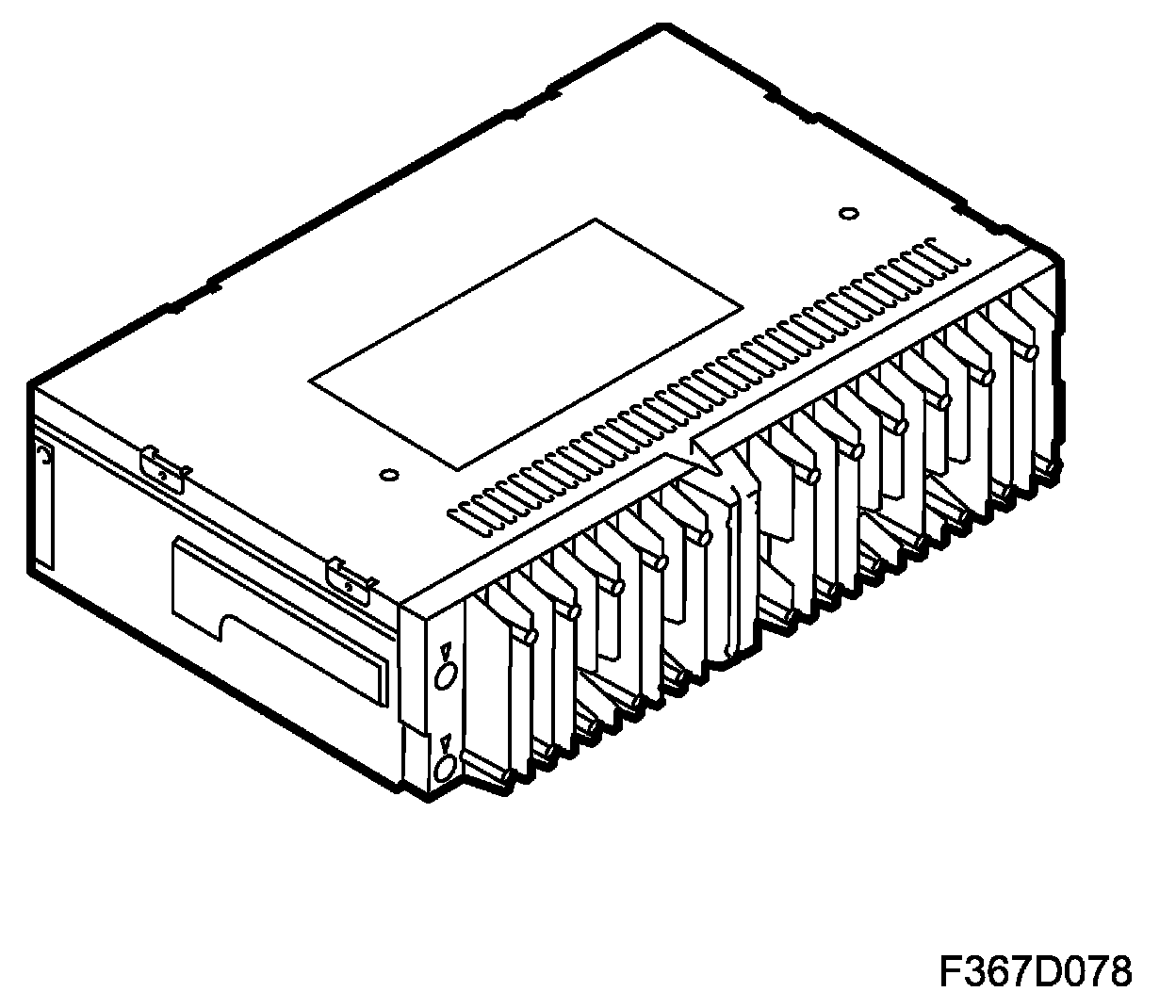

Location





Main
task Amplify and distribute sound to the speakers.

Type
Control module to supply output to the speaker.

Connection

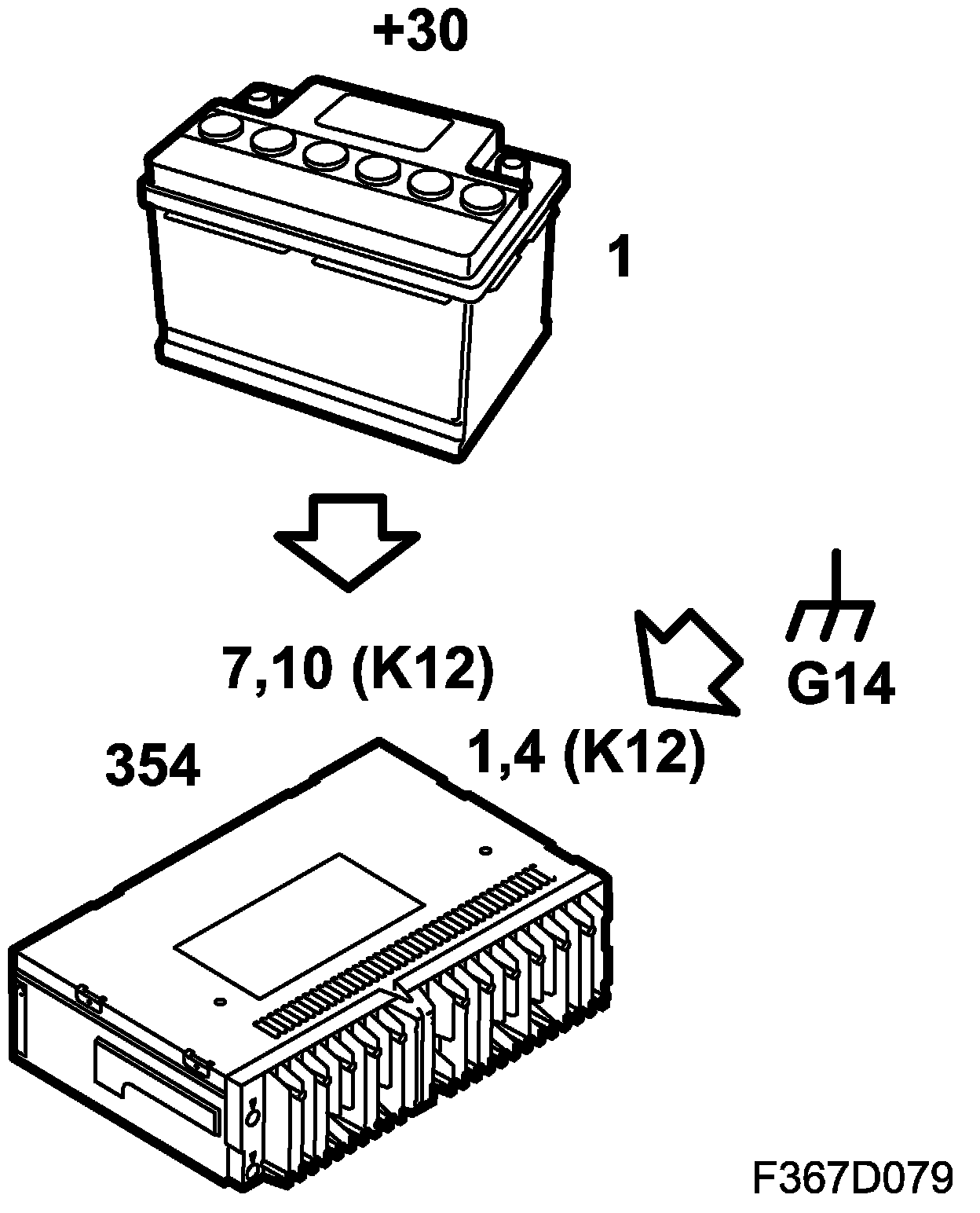

Wiring diagram, power supply
