Head Unit, Audio With Navigation (635)

Head Unit, Audio With Navigation (635)

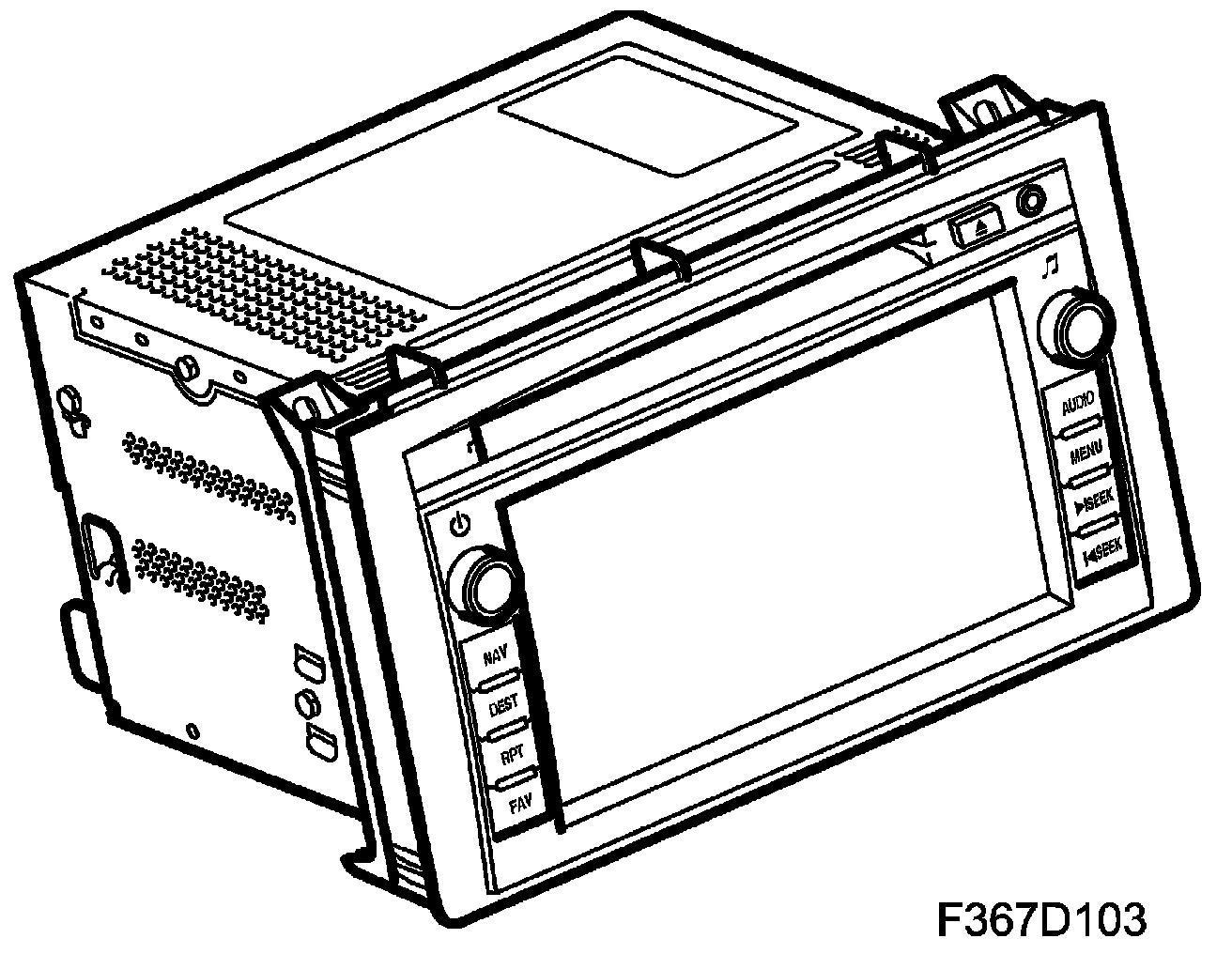

Location





Main task
^ Head unit in the audio/navigation system.
^ Radio receiver AM/FM/XM.

Type
Radio unit with AM/FM/XM band and navigation. The head unit is SPS reprogrammable via CD discs in the DVD reader.

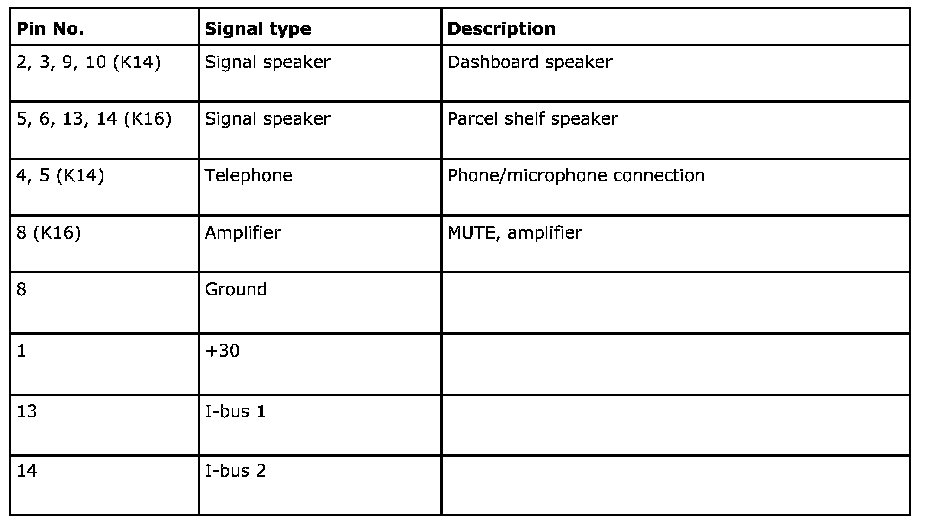

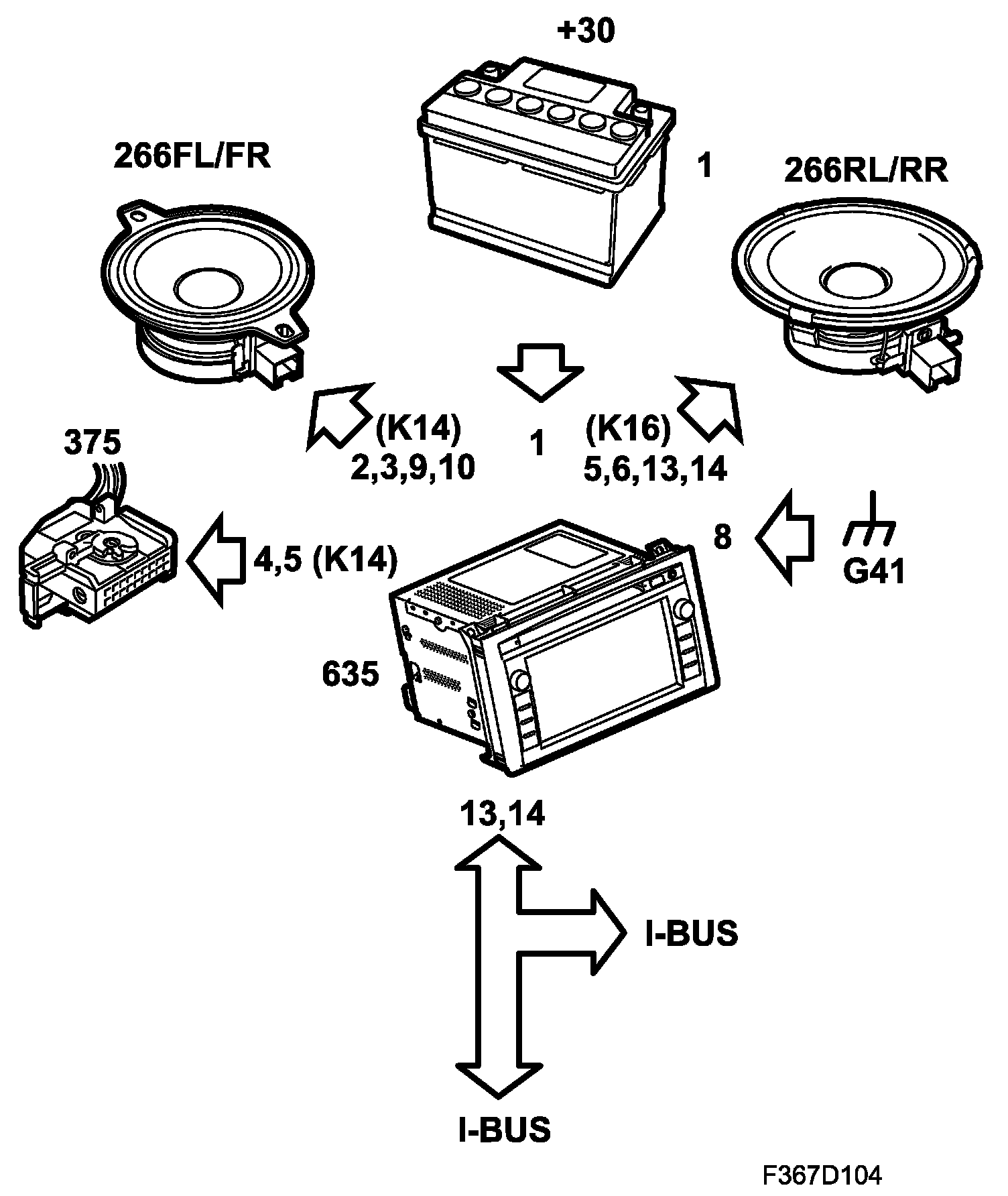

Connection

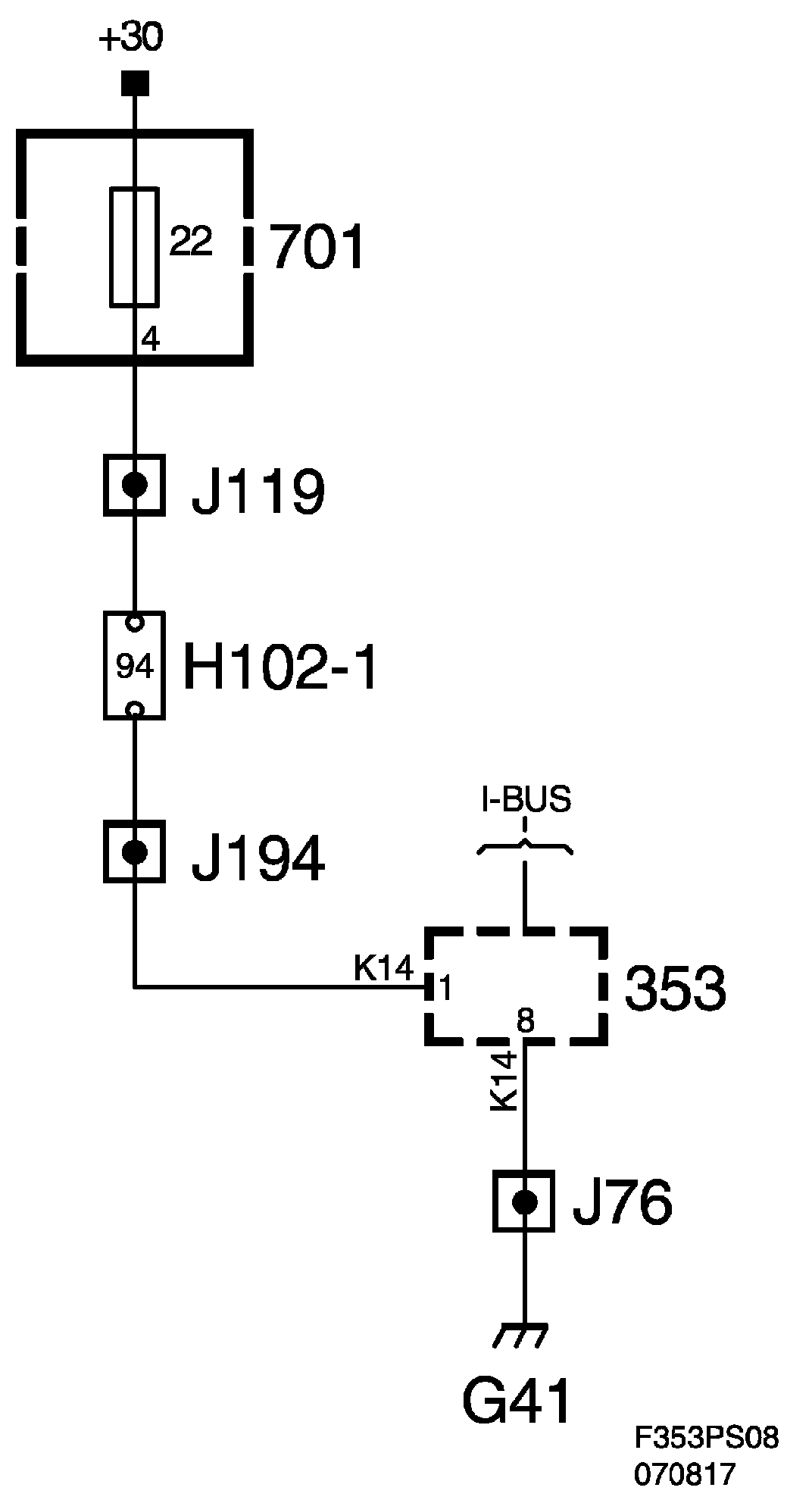

Wiring diagram, power supply
